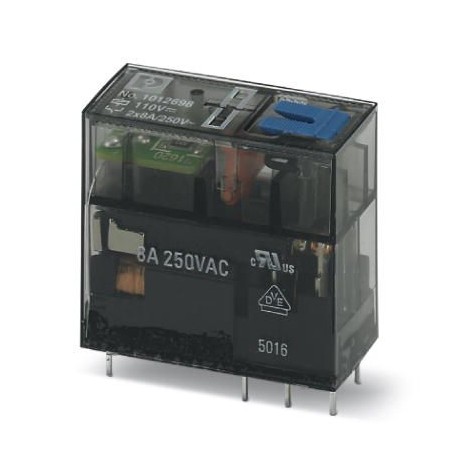

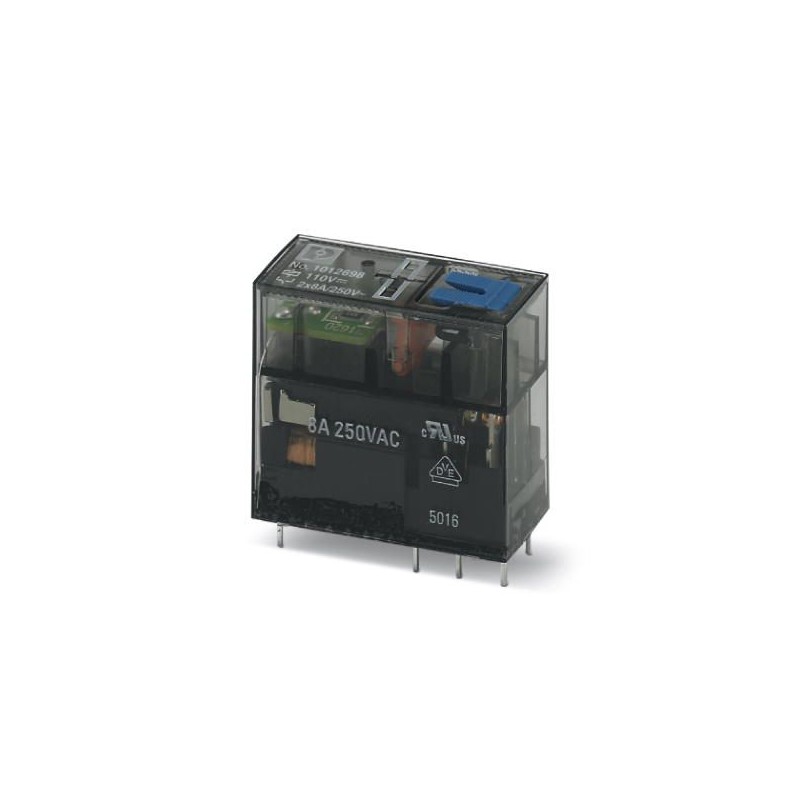

REL-MR-110DC/21-21/MS 1012698 PHOENIX CONTACT Single relay

Reference: REL-MR-110DC/21-21/MS

Code: 1012698

Manufacturer: PHOENIX CONTACT

Description:

Single relay
Plug-in miniature relay, with power contact, 2 switched contacts, check button, mechanical display of switching position, status LED, free-flowing diode, polarity A1+, A2, input voltage 110 V DC

Categories:

  • Relays > Switching relay
  • PHOENIX CONTACT > Industrial Relays

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 63,75 €

Unit Price: 6,375 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Key Commercial Data

Orderkey1012698
Packing unit10 pc
NoteMade to Order (non-returnable)
GTIN4055626490175
Weight per Piece (excluding packing)16.600 g
Custom tariff number85364900
Country of originDE (Germany)

Dimensions

Width12.7 mm
Height29 mm
Depth25 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C

Coil side

Nominal input voltage UN110 V DC
Input voltage range in reference to UNsee diagram
Typical input current at UN3.6 mA
Typical response time9 ms
Typical release time6 ms

Contact side

Contact type2 PDT
Type of switch contactSingle contact
Contact materialAgNi
Maximum switching voltage250 V AC/DC
Minimum switching voltage12 V (at 10 mA)
Min. switching current10 mA (at 12 V)
Maximum inrush current16 A (20 ms)
Limiting continuous current8 A
Interrupting rating (ohmic load) max.2000 VA (for 250 V AC)
Switching capacity according to IEC 60947-5-11 A (at 24 V, DC13)
1.5 A (at 24 V, AC15)
1.5 A (at 120 V, AC15)
1.5 A (at 240 V, AC15)
Motor load according to UL 5081/4 HP, 120 V AC (N/O contact)
1/2 HP, 240 V AC (N/O contact)

General

Test voltage relay winding/relay contact5 kV AC (50 Hz, 1 min.)
Test voltage relay contact/relay contact5 kV AC (50 Hz, 1 min.)
Test voltage PDT/PDT5 kV AC
Mechanical service life5x 106cycles

Standards and Regulations

Standards/regulationsEN 61810-1
VDE 0435-201
EN 50178

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

ETIM for 1012698 Relays (EC001437)

Feature nameType of electric connection (EF003961)
Feature valueOther
Feature nameComplete with socket (EF003359)
Feature valueNo
Feature nameWith detachable clamps (EF003340)
Feature valueNo
Feature nameWith LED indication (EF005950)
Feature valueNo
Feature nameRated control supply voltage DC (EF003980)
Feature value88 V
Feature nameVoltage type for actuating (EF008242)
Feature valueDC
Feature nameDrive, polarization (EF003355)
Feature valuePolarity free
Feature nameDrive, switching attitude (EF003356)
Feature valueMono stable
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value2
Feature nameType of switch contact (EF003358)
Feature valueSingle contact
Feature nameWith forced-guided contacts (EF003357)
Feature valueNo
Feature nameMaterial of contact insert (EF008521)
Feature valueOther
Feature nameMaterial of contact surface (EF004020)
Feature valueUntreated
Feature nameNominal current (EF000001)
Feature value0.0036 A
Feature nameWidth (EF000008)
Feature value12.7 mm
Feature nameHeight (EF000040)
Feature value29 mm
Feature nameDepth (EF000049)
Feature value25 mm
