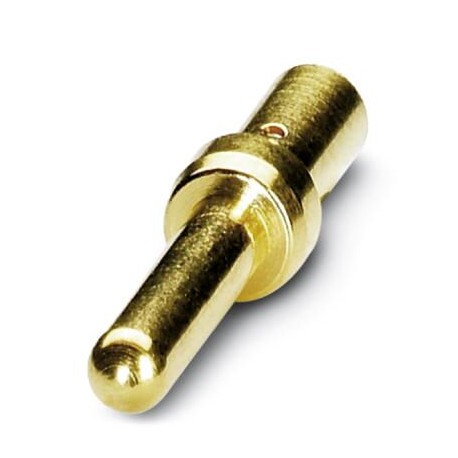

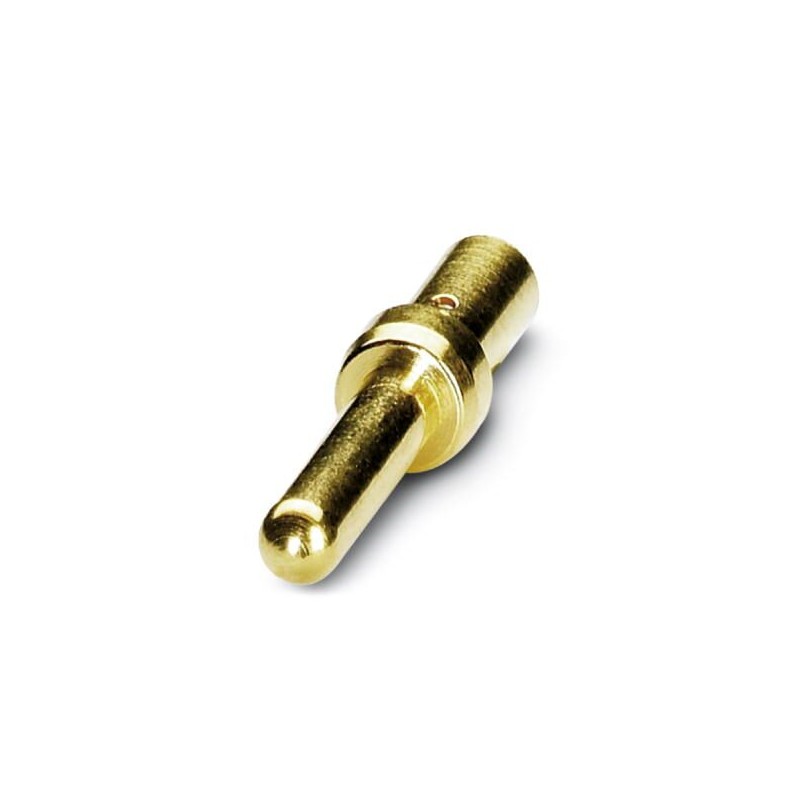

RC-5PP2000 1603523 PHOENIX CONTACT Crimp contact
RC-5PP2000
1603523
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.
Crimp contact
Crimp contact, Pin, feeding, machined, contact diameter: 2 mm, crimping margin: 1.5 mm² ... 2.5 mm², Forward crimp contact, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) Item code: 1241640
Connectors > Contact for industrial connectors
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Crimp contact, turned, contact diameter: 2 mm, crimp range: 1.5 mm² ... 2.5 mm²
General
| Contact type | turned |
|---|---|
| Note | Leading crimp contact |
| Contact diameter | 2 mm |
| Type of contact | Pin, leading |
| Connection method | Crimp connection |
| Insertion/withdrawal cycles mechanical | 100 |
| Litz wire cross section min. | 1.5 mm² |
| Litz wire cross section max. | 2.5 mm² |
| Contact material | CuZn |
| Contact surface | Nickel-plated (Ni), with gold coating (Au) |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440205eCl@ss 8.027440205eCl@ss 9.027440205
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Pin |
| Type of electric connection (EF003961) | Crimp connection |
| Diameter plug-in contact (EF007320) | 2 mm |
| Material contact (EF007544) | Other |
| Material of contact surface (EF004020) | Other |
| Min. number of insertion cycles (EF012212) | 100 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
