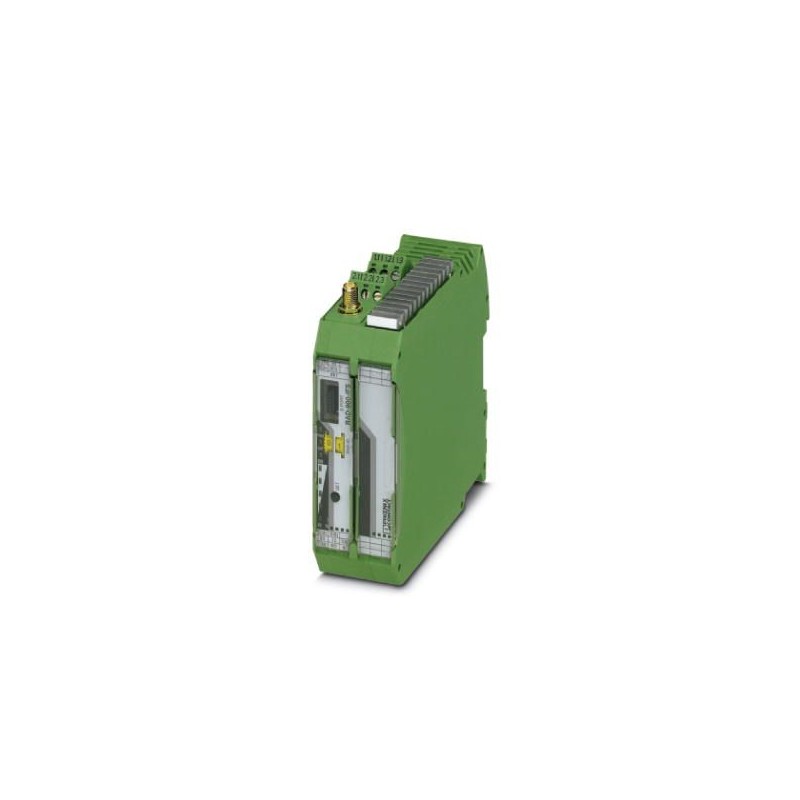

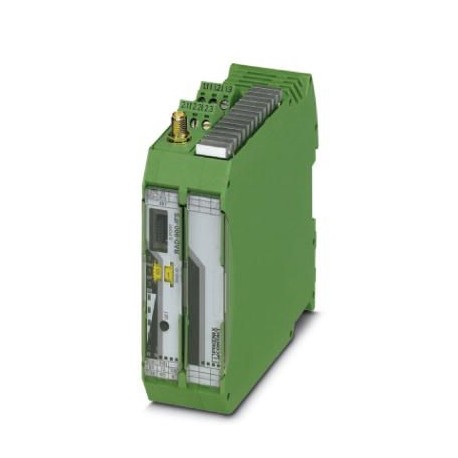

RAD-900-IFS-AU 2702878 PHOENIX CONTACT Wireless module
RAD-900-IFS-AU
2702878
PHOENIX_CONTACT
Wireless module
Radioline: 900 MHz radio transceiver with RS-232/485 interface, expandable with I/O modules, RSMA antenna connection (female), point-to-point, star and mesh networks up to 250 stations, range up to 32 km (with good visibility), use in Australia
Data and telecommunication > WLAN access point
Safety
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2702878 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626449265 |
| Weight per Piece (excluding packing) | 343.000 g |
| Custom tariff number | 85176200 |
| Country of origin | US (United States) |
Note
| Trade restriction | The products are offered exclusively for export outside the EU and the European Economic Area. |
|---|
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 70 °C |
| -40 °F ... 158 °F | |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| -40 °F ... 185 °F | |
| Permissible humidity (operation) | 20 % ... 85 % |
| Permissible humidity (storage/transport) | 20 % ... 85 % |
| Altitude | 2000 m |
| Vibration (operation) | in accordance with IEC 60068-2-6: 5g, 10 Hz ... 150 Hz |
| Shock | 16g, 11 ms |
General
| Operating mode | PLC / Modbus RTU dual mode (Activation and configuration via PSI-CONF software) |
|---|---|
| Overvoltage category | II |
| Assembly instructions | on standard DIN rail NS 35 in accordance with EN 60715 |
| Degree of pollution | 2 |
| Housing material | PA 6.6-FR |
| Flammability rating according to UL 94 | V0 |
Supply
| Supply voltage range | 10.8 V DC ... 30.5 V DC |
|---|---|
| Max. current consumption | 328 mA (@24 V DC) |
| Nominal power consumption | 1.7 W (30 dBm) |
| Power consumption | 8.4 W (peak; 30 dBm) |
| Transient surge protection | Yes |
Wireless interface
| Antenna connection | RSMA (female) |
|---|---|
| Direction | Bi-directional |
| Frequency | 900 MHz |
| Frequency range | 915 MHz ... 928 MHz |
| Data rate | 16 kbps (adjustable) |
| 125 kbps (adjustable) | |
| 250 kbps (adjustable) | |
| Receiver sensitivity | -112 dBm (16 kbps) |
| -105 dBm (125 kbps) | |
| -102 dBm (250 kbps) | |
| Transmission power | max. 1 W (adjustable) |
| Range | ± 32 km (The range may be considerably above or below that stated, and depends on the environment, antenna technology, and the product used) |
| Security | 128-bit data encryption |
Serial interface
| Interface 1 | RS-232 |
|---|---|
| Connection method | COMBICON plug-in screw terminal block |
| D-SUB-9 female connector | |
| Connection technology | 3-wire |
| Transmission speed | 0.3 ... 115.2 kbps |
| Interface 2 | RS-485 |
| Connection method | COMBICON plug-in screw terminal block |
| Connection technology | 2-wire |
| Termination resistor | 390 Ω (switchable via DIP switches) |
| 150 Ω (switchable via DIP switches) | |
| 390 Ω (switchable via DIP switches) | |
| Transmission speed | 0.3 ... 115.2 kbps |
RF link relay output
| Number of outputs | 1 |
|---|---|
| Contact type | PDT |
| Contact material | PdRu, gold-plated |
| Maximum switching voltage | 30 V AC/DC |
| Max. switching current | 500 mA |
| Electrical service life | 5x 105switching cycles with 0.5 A at 30 V DC |
Connection data
| Connection method | Screw connection |
|---|---|
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Stripping length | 7 mm |
| Tightening torque | 0.6 Nm |
| Screw thread | M3 |
Status indicator
| Status display | Green LED (supply voltage, PWR) |
|---|---|
| Green LED (bus communication, DAT) | |
| Red LED (periphery error, ERR) | |
| 3x green, 1x yellow LED (LED bar graph receive quality, RSSI) | |
| Green LED (receive data, RX) | |
| Green LED (transmit data, TX) |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
|---|---|
| Noise emission | EN 55011 Class B |
| Flammability rating according to UL 94 | V0 |
| Interface description | Trusted Wireless |
| Security | 128-bit data encryption |
| Shock | 16g, 11 ms |
| Vibration (operation) | in accordance with IEC 60068-2-6: 5g, 10 Hz ... 150 Hz |
| Conformance | RCM |
Classifications
eCl@ss 4.027230207eCl@ss 4.127230207eCl@ss 5.027230207eCl@ss 5.127242208eCl@ss 6.019179200eCl@ss 7.019179290eCl@ss 8.019179290eCl@ss 9.019179290
| Feature Name | Feature Value |
|---|---|
| Radio protocol (EF001007) | Other |
| Colour (EF000007) | Other |
| Width (EF000008) | 35.2 mm |
| Height (EF000040) | 117.252887 mm |
| Depth (EF000049) | 113.6 mm |
| Suitable for 19 inch mounting (EF003555) | No |
| Suitable for ceiling mounting (EF021180) | No |
| Built-in (EF003454) | No |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | Yes |
| Pole fastening (EF009582) | No |
| Flush-mounted installation (EF007517) | No |
| Suitable for wall mounting (EF000664) | No |
