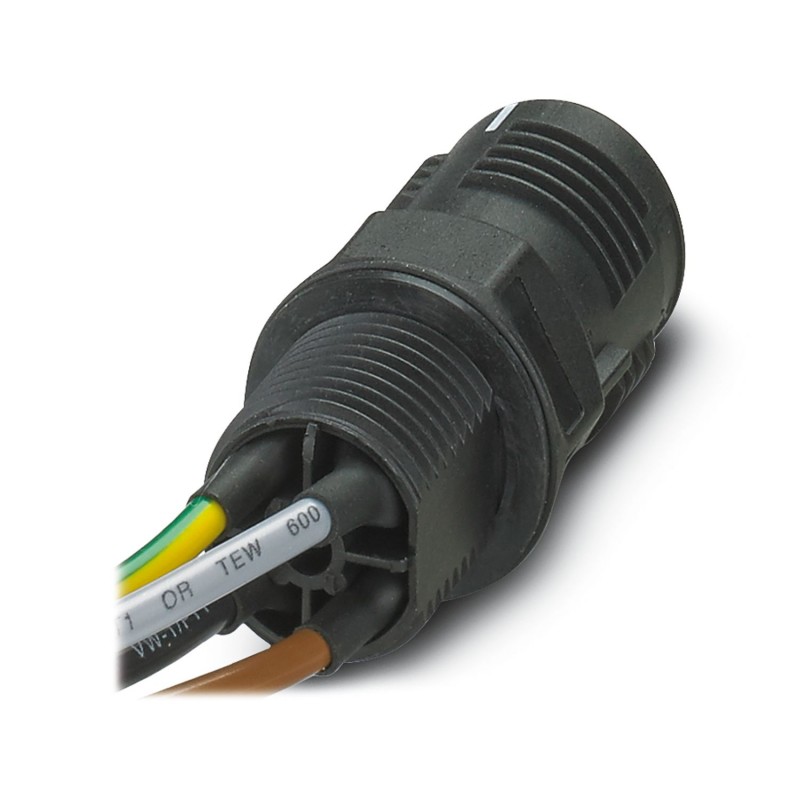

PHOENIX CONTACT  QPD W3PE2,5 M25 1,0 BK 1423984 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

QPD W3PE2,5 M25 1,0 BK 1423984 PHOENIX CONTACT Panel feed-through

Reference: QPD W3PE2,5 M25 1,0 BK

Code: 1423984

Manufacturer: PHOENIX CONTACT

Description:

Panel feed-through
Feedthrough, QUICKON connection, number of poles: 3+PE, 1 mm² ... 2.5 mm², 690 V, 20 A, black, without QUICKON nut, mounting thread: M25, IDC connection (soldered), 2.5 mm², conductors cut so that they lie flat, cable length: 1 m
Panel feed-through, product family: QPD, connection method: Single wires (Welded-on), number of positions: 3+PE, M25, Pin, 1 mm2 ... 2.5 mm2, 690 V, 20 A, PA, black, without QUICKON nut, coding: coded, 2.5 mm2, wires cut flat at the end, cable length: 1 m

Categories:

  • Pluggable building installation systems > Device connection for plug-in building installation
  • PHOENIX CONTACT > QUICKON Installation System (QPD)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 23,13 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical data

Product properties
Product typePanel feed-through
Product familyQPD
TypeQPD 4x2,5
Number of positions4
Connection profile3+PE
Position marking1, 2, 3, PE
Number of connections10
Number of connections per position1
Codingcoded
Data management status
Article revision03
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3

Connection data
Connection technology
Connection method On the device sideSingle wires (Welded-on)
Frequency of connections between conductors of the same cross sectionmax. 10
Conductor connection
Conductor cross section flexibel1 mm² ... 2.5 mm²
Conductor cross section solid1 mm² ... 2.5 mm²
Connection cross section AWG16 ... 14
Tightening torque Union nut10 Nm
Tightening torque Locking nut5 Nm

Dimensions
Dimensional drawingrujjaadsif.jpg
Width30 mm
Height30 mm
Length47.7 mm
Diameter30 mm

Electrical properties
Rated surge voltage (II/2)6 kV
Rated surge voltage (III/2)6 kV
Rated surge voltage (III/3)6 kV
Rated current20 A
Contact resistance< 3 mΩ
rated voltage (II/2)1000 V
rated voltage (III/2)690 V
Rated voltage (III/3)690 V
Nominal voltage UN690 V AC
690 V DC
Nominal current IN20 A

Mechanical properties
Mechanical data
Insertion/withdrawal cyclesmax. 50

Material specifications
Colorblack (RAL 9005)
Material HousingPA
Material ContactCu
Material Contact surfacesilver-plated
Flammability rating according to UL 94V0
Material wire insulationPVC/PE/TPE/rubber

Cable/line
Cable length1 m
Structure of individual litz in acc. with VDE 0295 / smallest wire diameterVDE 0295 class 1 to 6/min. 0.15 mm
Wire diameter including insulation2 mm ... 3.6 mm
Position marking1, 2, 3, PE
Cable cross section2.5 mm²
Material wire insulationPVC/PE/TPE/rubber
Halogen-freeWire insulation and filler contain halogen

Mounting
Mounting typeFront mounting M25

Environmental and real-life conditions
Ambient conditions
Degree of protectionIP66
IP68 (2 m / 24 h)
IP69K
Touch-proof when not plugged in (IP2X)
Impact strengthIK07
Ambient temperature (operation)-40 °C ... 100 °C
Temperature when conductor connected-5 °C ... 50 °C
Ambient temperature (storage/transport)-40 °C ... 100 °C

ETIM for 1423984 Pluggable and modular wiring systems (EC002566)

Feature nameRated voltage (EF000228)
Feature value690 V
Feature nameRated current (EF000227)
Feature value20 A
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP66
Feature nameConnection size thread (EF004756)
Feature valueM25
Feature nameNumber of connections per pole (EF006769)
Feature value1
Feature namePole codification (EF006771)
Feature value1, 2, 3, PE
Feature nameMechanical coding (EF002910)
Feature valueNo
Feature nameColour coding/contact insert (EF006772)
Feature valueBlack
Feature nameColour of the separate adapter piece (EF008312)
Feature valueWithout adapter piece
Feature nameHousing colour (EF000136)
Feature valueBlack
Feature nameHousing material (EF001596)
Feature valuePolyamide (PA)
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameSurface treatment contacts (EF002558)
Feature valueSilver-plated
Feature nameLength (EF001438)
Feature value145.06 mm
Feature nameHeight (EF000040)
Feature value30 mm
Feature nameWidth (EF000008)
Feature value30 mm
