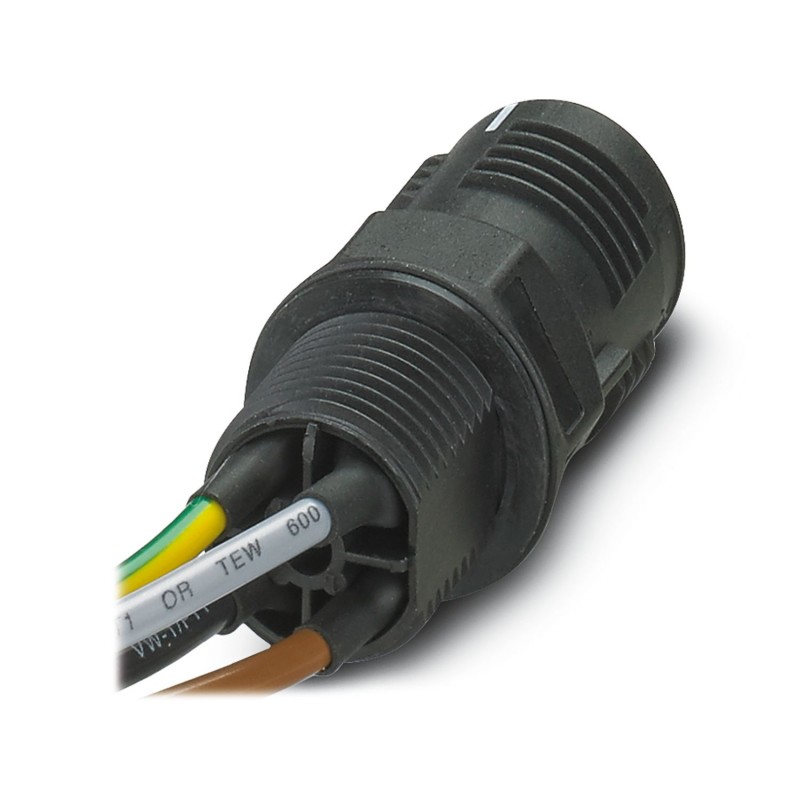

QPD W3PE2,5 M25 0,5 BK 1423983 PHOENIX CONTACT Panel feed-through
QPD W3PE2,5 M25 0,5 BK
1423983
PHOENIX_CONTACT
Panel feed-through
Grommets, QUICKON connection, number of poles: 3+PE, 1 mm² ... 2.5 mm², 690 V, 20 A, black, without QUICKON nut, mounting thread: M25, IDC connection (welded), 2.5 mm², conductors cut so that they are flat, cable length: 0.5 m
Feedthrough, product family: QPD, connection type: Single conductors (Welded), number of poles: 3+PE, M25, Male, 1 mm2 ... 2.5 mm2, 690 V, 20 A, PA, black, without QUICKON nut, coding: with coding, 2.5 mm2, conductors cut so that they lie flat, cable length: 0.5 m
Pluggable building installation systems > Device connection for plug-in building installation
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1423983 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626366005 |
| Weight per Piece (excluding packing) | 22.220 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
General
| Type | QPD 4x2,5 |
|---|---|
| Length of cable | 0.5 m |
| Color | black |
| Locking type | Screw locking |
| Connection method | QUICKON connection |
| IDC connection | |
| Number of positions | 4 |
| Note number of positions | 3+PE |
| Tightening torque, union nut | 10 Nm |
| Tightening torque, counter nut | 5 Nm |
| Number of connections | 10 |
| Conductor cross section flexible min. | 1 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section solid min. | 1 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section AWG min. | 16 |
| Conductor cross section AWG max. | 14 |
Cabel
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 1 to 6/min. 0.15 mm |
|---|---|
| Wire insulation material | PVC/PE/TPE/rubber |
| Wire diameter including insulation | 2 mm ... 3.6 mm |
| Conductor cross section | 2.5 mm² |
| Position marking | 1, 2, 3, PE |
Ambient conditions
| Degree of protection | IP66 |
|---|---|
| IP68 (2 m / 24 h) | |
| IP69K | |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Ambient temperature (storage/transport) | -40 °C ... 100 °C |
| Temperature when conductor connected | -5 °C ... 50 °C |
Electrical characteristics
| Nominal current IN | 20 A |
|---|---|
| Rated current | 20 A |
| Rated voltage (III/3) | 690 V |
| Rated voltage (III/2) | 1000 V |
| Rated voltage (II/2) | 1000 V |
| Rated surge voltage (III/3) | 6 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (II/2) | 8 kV |
Material data
| Contact material | Cu |
|---|---|
| Contact surface material | silver-plated |
| Contact carrier material | PA |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Overvoltage category | III |
| Degree of pollution | 3 |
Classifications
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF000228) | 690 V |
| Rated current (EF000227) | 20 A |
| Number of poles (EF001391) | 4 |
| Degree of protection (IP) (EF005474) | IP66 |
| Connection size thread (EF004756) | M25 |
| Number of connections per pole (EF006769) | 1 |
| Pole codification (EF006771) | 1, 2, 3, PE |
| Mechanical coding (EF002910) | No |
| Colour coding/contact insert (EF006772) | Black |
| Colour of the separate adapter piece (EF008312) | Without adapter piece |
| Housing colour (EF000136) | Black |
| Housing material (EF001596) | Polyamide (PA) |
| Halogen free (EF000025) | Yes |
| Surface treatment contacts (EF002558) | Silver-plated |
| Length (EF001438) | 47.7 mm |
| Height (EF000040) | 30 mm |
| Width (EF000008) | 30 mm |
