PHOENIX CONTACT PCB Connectors (PCC)PTSA 1,5/ 5-3,5 MIXED TYPE1 1781201 PHOENIX CONTACT PCB terminal block

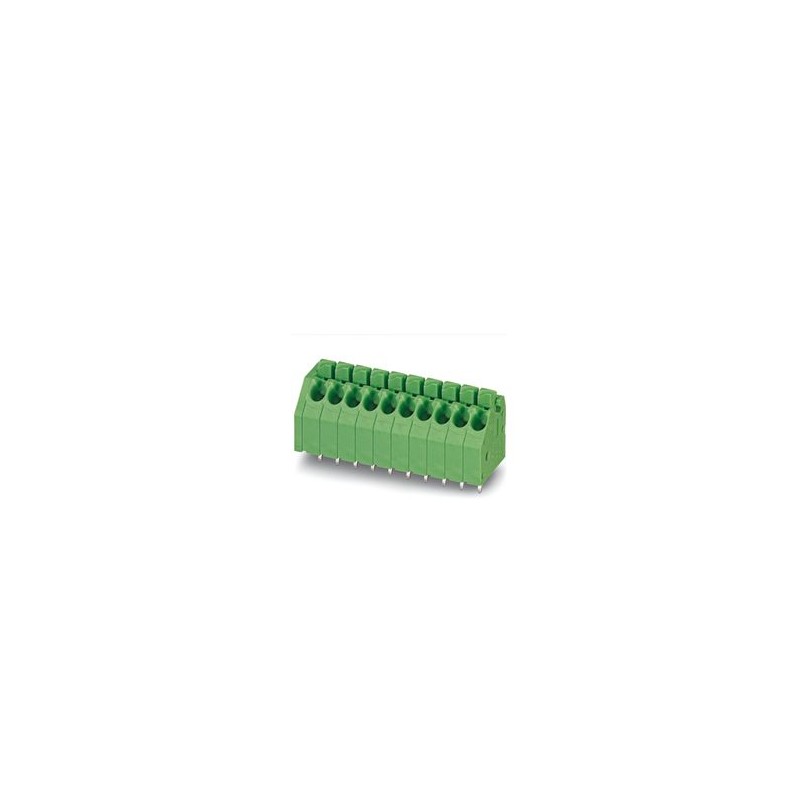

PHOENIX CONTACT PTSA 1,5/ 5-3,5 MIXED TYPE1 1781201 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

PTSA 1,5/ 5-3,5 MIXED TYPE1 1781201 PHOENIX CONTACT PCB terminal block

Reference: PTSA 1,5/ 5-3,5 MIXED TYPE1

Code: 1781201

Manufacturer: PHOENIX CONTACT

Product on demand only, returns will not be accepted.

Description:

PCB terminal block
Printed circuit board terminal, rated current: 8 A, sizing voltage (III/2): 250 V, nominal section: 1.5 mm², Number of potentials: 5, Number of rows: 1, Number of poles per row: 5, item family: PTSA 1.5, pitch: 3.5 mm, connection type: Push-in spring connection, mounting: Wave welding, connection direction conductor/printed circuit board: 45 °, color: multicolor, Pin arrangement: Mixed single pin arrangement, Pin length [P]:3.6 mm, packaging type: boxed
PCB terminal, rated current: 8 A, rated voltage (III/2): 250 V, rated cross-section: 1.5 mm2, number of potentials: 5, number of rows: 1, number of poles per row: 5, item family: PTSA 1.5, pitch: 3.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45°, Color: Multicolor, Pin Arrangement: Mixed Pin Arrangement, Pin Length [P]: 3.5mm, Number of Solder Pins by Potential: 1, Packing Type: Boxed Packaging

Categories:

  • Connectors > Printed circuit board terminal
  • PHOENIX CONTACT > PCB Connectors (PCC)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 1.999,19 €

Unit Price: 1,8511 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

PCB terminal block, nominal current: 8 A, nom. voltage: 250 V, pitch: 3.5 mm, number of positions: 5, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: multi-color

Key Commercial Data

Orderkey1781201
Packing unit1
GTIN4046356555258
Custom tariff number85369010

Dimensions

Length [ l ]12 mm
Pitch3.5 mm
Dimension a24.5 mm
Width [ w ]39.5 mm
Height13.1 mm
Height [ h ]16.7 mm
Solder pin [P]3.6 mm
Pin spacing3.5 mm
Hole diameter1 mm

General

Range of articlesPTSA 1,5
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)200 V
Rated voltage (III/2)250 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Nominal cross section1.5 mm²
Solder pin surface
Stripping length9 mm
Number of positions5

Connection data

Conductor cross section AWG min.24
Conductor cross section AWG max.16

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 4.027141111
eCl@ss 4.127141111
eCl@ss 5.027141190
eCl@ss 5.127261100
eCl@ss 6.027261100
eCl@ss 7.027440401
eCl@ss 8.027440401
eCl@ss 9.027440401

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002643
ETIM 5.0EC002643
ETIM 6.0EC002643
ETIM 7.0EC002643

UNSPSC

UNSPSC 6.0130211801
UNSPSC 7.090139121432
UNSPSC 1134131203
UNSPSC 12.0139121432
UNSPSC 13.239121432

ETIM for 1781201 Connectors (EC002643)

Feature nameHeight (EF000040)
Feature value16.7 mm
Feature nameNumber of electrical connections (EF008252)
Feature value5
Feature nameNumber of levels (EF002659)
Feature value1
Feature nameModular spacing connections (EF006827)
Feature value3.5 mm
Feature nameRated current In (EF008250)
Feature value8 A
Feature nameRated voltage (EF000228)
Feature value250 V
Feature nameRated surge voltage (EF002993)
Feature value2.5 kV
Feature nameOver voltage category (EF006785)
Feature valueIII
Feature namePollution degree (EF006786)
Feature value2
Feature nameConnection type conductor (EF006821)
Feature valueSpring clamp connection
Feature nameConnectable conductor cross section solid-core (EF007337)
Feature value0.2 mm²
Feature nameConnectable conductor cross section fine-strand with cable end sleeve (EF007339)
Feature value0.25 mm²
Feature nameConnectable conductor cross section fine-strand without cable end sleeve (EF007341)
Feature value0.2 mm²
Feature nameConnectable conductor cross section multi-wired (EF007343)
Feature value1.5 mm²
Feature nameConnection type PCB (EF006822)
Feature valueSoldering connection
Feature nameMaterial connection surface (EF006826)
Feature valueTin
Feature nameDiameter connection pin (EF006823)
Feature value1 mm
Feature nameLength pin (EF006825)
Feature value3.5 mm
Feature nameMaterial insulation body (EF007543)
Feature valueOther
Feature nameHousing colour (EF000136)
Feature valueOther
Feature nameInflammability class of insulation material according to UL94 (EF002521)
Feature valueV0
Feature nameOperating temperature (EF002393)
Feature value-40 °C
Feature nameType of PCB fastening (EF008226)
Feature valueConnecting contact
Feature nameType of fastening (EF002442)
Feature valueSolder
Feature nameType of banding (EF007011)
Feature valueCarton (for SMD)
