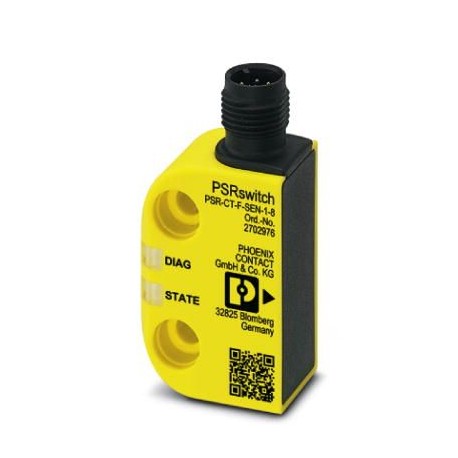

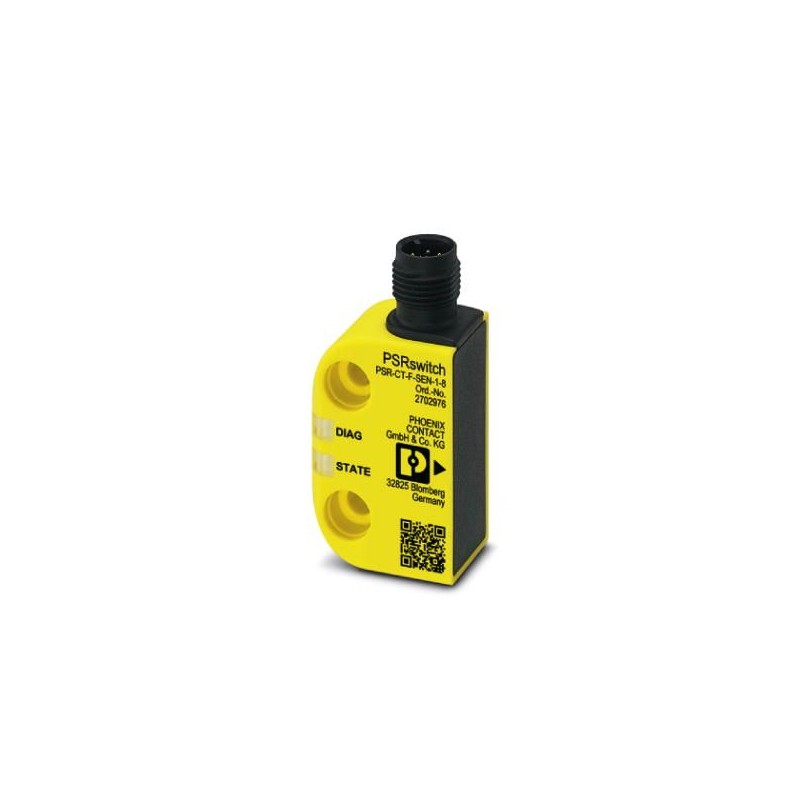

PSR-CT-C-SEN-1-8 2702972 PHOENIX CONTACT Safety switch sensor
PSR-CT-C-SEN-1-8
2702972
PHOENIX_CONTACT
Safety switch sensor
Non-contact safety switch up to cat. 4, PL e (EN ISO 13849), SIL 3 (IEC 61508), Unicode sensor with RFID coding, construction type 4 (EN ISO 14119), manual or automatic start, integrated diagnostics, 24 V DC supply, IP69K, M12 connector
Sensors > Accessories/spare parts for sensor technology
Safety
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2702972 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626446899 |
| Weight per Piece (excluding packing) | 41.500 g |
| Custom tariff number | 85365019 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Power supply
| Supply voltage | 24 V DC ±15 % (PELV, controlled, residual ripple |
|---|---|
| Current consumption | max. 40 mA |
| Protection | min. 0.25 A (to be performed externally) |
| max. 8 A (to be performed externally) |
Safety outputs
| Designation | FO1A, FO1B |
|---|---|
| Output description | Semiconductor outputs, p-wired |
| Number of outputs | 2 |
| Output voltage | min. (UB- 1.5 V (HIGH FO1A, FO1B)) |
| max. (UB(HIGH FO1A, FO1B)) | |
| min. 0 V DC (LOW FO1A/FO1B) | |
| max. 1 V DC (LOW FO1A/FO1B) | |
| Switching current | min. 1 mA (per safety output) |
| max. 150 mA (per safety output) | |
| Short-circuit-proof | yes |
| Utilization category in accordance with IEC 60947-5-2 | 150 mA (24 V (DC13)) |
| Note on protection circuit | NOTE: Protect the outputs under inductive loads with a freewheeling diode. |
| Residual current | ≤ 0.25 mA |
Alarm outputs
| Designation | DGN |
|---|---|
| Output description | p-wired |
| Number of outputs | 1 |
| Short-circuit-proof | yes |
| Output voltage | min. (UB- 1.5 V (HIGH)) |
| max. (UB(HIGH)) | |
| min. 0 V DC (LOW) | |
| max. 1 V DC (LOW) | |
| Current IDGN | min. 1 mA |
Times
| Switch-on delay | typ. 5 s (after switching UBon) |
|---|---|
| Risk time according to EN 60947-5-3 | max. 260 ms (Stand-alone device) |
| Delay time | typ. 5 ms (Risk time delay per device) |
| Switch-on time | max. 400 ms (for the safety outputs) |
| Discrepancy time | max. 10 ms (between the safety outputs) |
| Test pulses | typ. 300 µs (Test pulse duration) |
| approx. 100 ms (Test pulse interval) |
General
| Net weight | 41.5 g |
|---|---|
| Mounting position | any |
| Mounting type | not flush |
| Minimum distance | 140 mm (between two safety circuits) |
| 7 mm (between sensor and actuator when traveling in the Y-direction) | |
| Assembly instructions | Note EN ISO 14119 |
| Maximum tightening torque to secure: 0.8 Nm | |
| Degree of protection | IP65/IP67/IP69/IP69K |
| IP67 (with SAC cabling) | |
| Protection class | III |
| Short-circuit current | typ. 100 A (conditional short-circuit current) |
| Switching frequency | max. 1 Hz |
| Housing material | PBT |
| Housing color | yellow |
| Status display | 2 LEDs |
Connection data
| Connection method | Connector |
|---|---|
| Connection technology | M12 connector |
| pluggable | no |
| Number of positions | 8 |
Safety-related characteristic data
| Designation | IEC 61508 - High demand |
|---|---|
| Safety Integrity Level (SIL) | 3 |
| Designation | EN ISO 13849 |
| Performance level (PL) | e |
| Category | 4 |
Standards and Regulations
| Rated insulation voltage | max. 300 V |
|---|---|
| Rated surge voltage | max. 1.5 kV |
| Degree of pollution | 3 |
| Vibration (operation) | in accordance with EN 60947-5-2 |
| EMC conformance | EN 60947-5-3 |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | No |
| Spare part (EF013237) | No |
