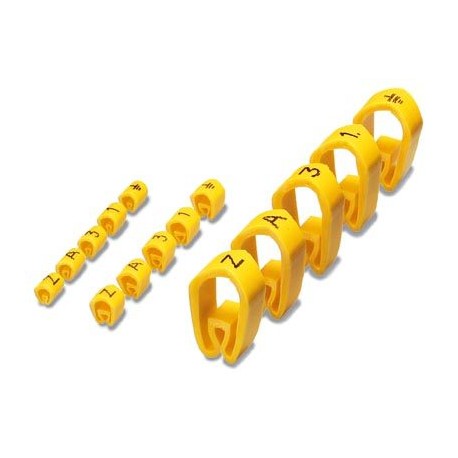

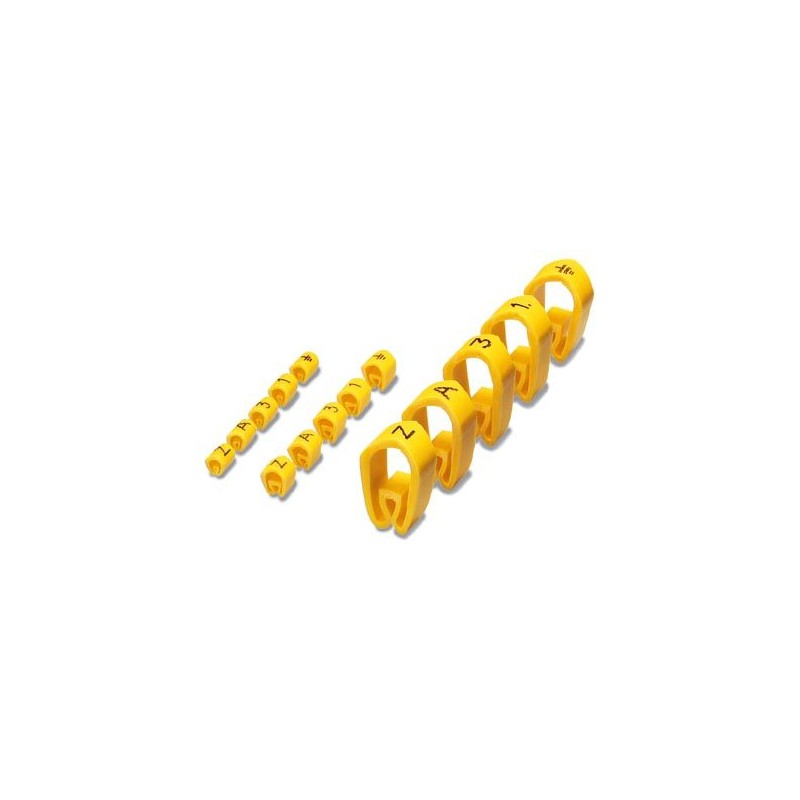

PMH 3:ZAHLEN 0800543 PHOENIX CONTACT Conductor marking collar

Reference: PMH 3:ZAHLEN

Code: 0800543

Manufacturer: PHOENIX CONTACT

Description:

Conductor marking collar

Categories:

  • PHOENIX CONTACT > Markers

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Key Commercial Data

Orderkey0800543
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 471 (CL-2007)
Weight per Piece (excluding packing)0.500 g
Custom tariff number49119900
Country of originCZ (Czech Republic)

Dimensions

Length (b)6.6 mm
Width (a)4.2 mm
Height (c)9.5 mm
Cable diameter5 mm ... 9 mm

Ambient conditions

Ambient temperature (operation)-45 °C ... 70 °C
Ambient temperature (assembly)> 10 °C

General

NotePlease specify the required marking with order: Minimum order per imprint: 1 packing unit
Coloryellow
TypeProfile
Componentsfree from silicone, halogen, and cadmium
Flammability rating according to UL 94V0
MaterialEthylene-vinyl acetate (EVA)
Wipe resistanceDIN EN 61010-1 (VDE 0411-1)
Printing directionHorizontal
PrintingNumbers
Marking mounting typethread on
Min. cross section6 mm²
Max. cross section16 mm²
AWG min8
AWG max4

Standards and Regulations

Wipe resistanceDIN EN 61010-1 (VDE 0411-1)
Flammability rating according to UL 94V0

Classifications
