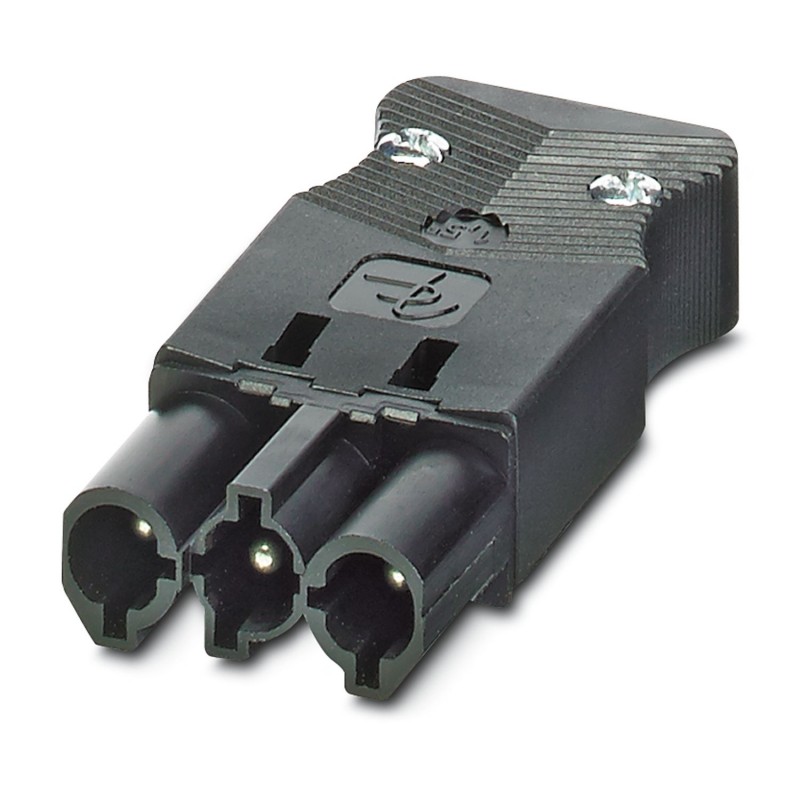

PLD E 608-CO-MS 2702308 PHOENIX CONTACT Connector
PLD E 608-CO-MS
2702308
PHOENIX_CONTACT
5
Connector
Connector for series connection, black, 3 poles
Safety
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2702308 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 486 (C-6-2017) |
| GTIN | 4055626113340 |
| Weight per Piece (excluding packing) | 18.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Type | Installation coupler |
|---|---|
| Color | black |
| Connection method | Screw connection |
| Number of positions | 3 |
| Note number of positions | 2+PE |
| Tightening torque contact carrier | 0.3 Nm |
| Number of connections | 3 |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 20 |
| Conductor cross section AWG max. | 14 |
Cabel
| External cable diameter | 7.5 mm ... 8.5 mm (3x 1.5 mm²) |
|---|---|
| 9.5 mm ... 10.5 mm (3x 2.5 mm²) | |
| Stripping length for sheath | 7 mm |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| IP40 (plugged in) | |
| Ambient temperature (operation) | 70 °C |
| Ambient temperature (storage/transport) | -30 °C |
Electrical characteristics
| Rated current | 16 A (according to EN 61984 at 70 °C) |
|---|---|
| Rated voltage (I/2) | 250 V |
| Rated surge voltage (I/2) | 2.5 kV |
Mechanical characteristics
| QUICKON connectability | 5 (according to EN 61984) |
|---|---|
| Insertion/withdrawal cycles | 10 (according to EN 61984) |
Material data
| Contact material | Brass |
|---|---|
| Contact surface material | surface-protected |
| Contact carrier material | PA |
| Insulating material | PA |
| Flammability rating according to UL 94 | V2 |
| Degree of pollution | 2 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE AUTOMATION PHOENIX EN.pdf | 35 Mbytes |
|
