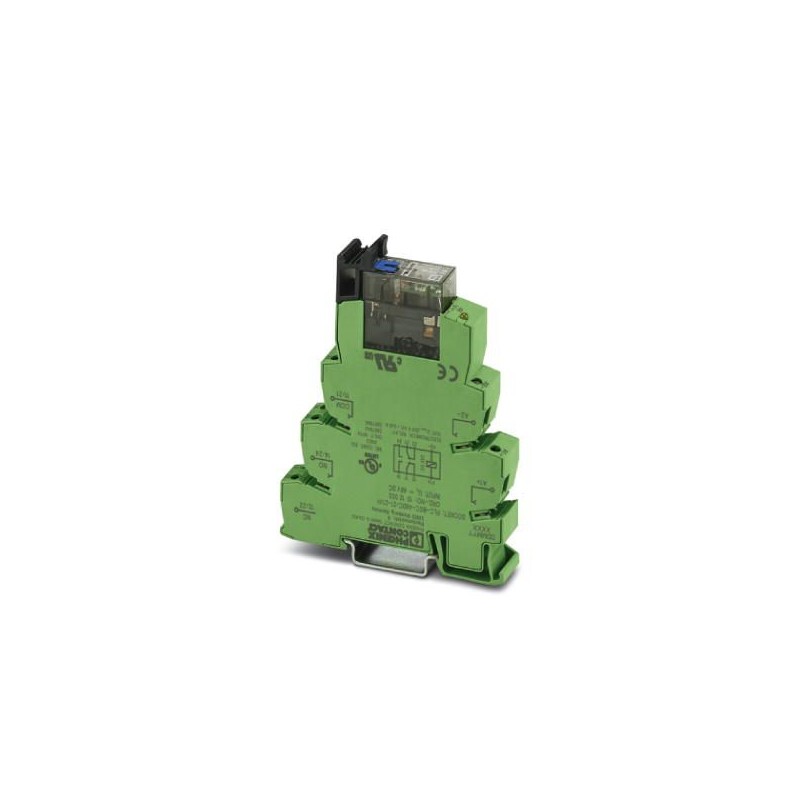

PHOENIX CONTACT  PLC-RSC- 48DC/21-21AU/MS 2910510 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

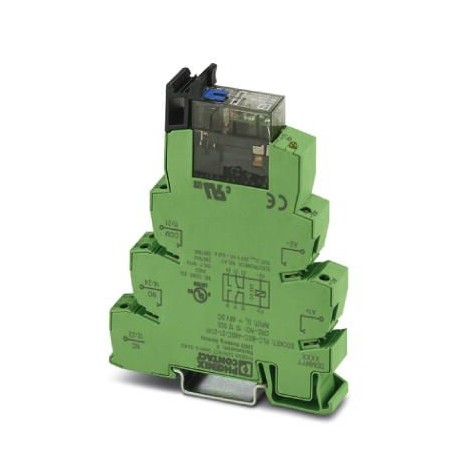

PLC-RSC- 48DC/21-21AU/MS 2910510 PHOENIX CONTACT Relay Module

Reference: PLC-RSC- 48DC/21-21AU/MS

Code: 2910510

Manufacturer: PHOENIX CONTACT

Description:

Relay Module
PLC-INTERFACE, composed of socket relay and plug-in multi-layer gold contact relay with manual operation, integrated status LED and free-flowing diode, Screw connection, 2 switched contacts, Rectifier bridge, Input voltage: 48 V DC

Categories:

  • PHOENIX CONTACT > INTERFACE Components (IF)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Key Commercial Data

Orderkey2910510
Packing unit10 pc
NoteMade to Order (non-returnable)
GTIN4055626486642
Weight per Piece (excluding packing)67.000 g
Custom tariff number85364190
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width14 mm
Height80 mm
Depth104 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-20 °C ... 85 °C

Coil side

Nominal input voltage UN48 V DC
Typical input current at UN19 mA
Typical response time6 ms
Typical release time10 ms
Protective circuitBridge rectifier
Operating voltage displayYellow LED

Contact side

Contact type2 PDT
Type of switch contactSingle contact
Contact materialAgNi + Au
Maximum switching voltage30 V AC
36 V DC
Minimum switching voltage12 V (1 mA)
Min. switching current1 mA (12 V)
Maximum inrush current50 mA
Limiting continuous current50 mA

Contact side (with destroyed gold layer)

Notethe following values are applicable if a gold layer is destroyed
Maximum switching voltage250 V AC/DC
Minimum switching voltage12 V (10 mA)
Limiting continuous current6 A
Maximum inrush current12 A (20 ms)
Min. switching current10 mA (12 V)
Interrupting rating (ohmic load) max.192 W (24 V DC)
62 W (48 V DC)
42 W (60 V DC)
55 W (110 V DC)
66 W (220 V DC)
2000 VA (250 V AC)
Switching capacity1 A (24 V, DC13)
1.5 A (230 V, AC15)

Connection data input side

Connection nameCoil side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² ()
2x 0.5 mm² ... 1.5 mm² ()
Conductor cross section AWG26 ... 14

Connection data output side

Connection nameContact side
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² ()
2x 0.5 mm² ... 1.5 mm² ()
Conductor cross section AWG26 ... 14

General

Test voltage relay winding/relay contact4 kVrms(50 Hz, 1 min.)
Test voltage PDT/PDT2.5 kVrms(50 Hz, 1 min.)
Operating mode100% operating factor
Degree of protectionRT II (Relay)
IP20 (Relay base)
Mechanical service life5x 106cycles
UL, USAUL 508
UL 508 Recognized
UL, USA/CanadacUL 508
cUL 508 Recognized
Mounting positionany
Assembly instructionsIn rows with zero spacing

Standards and Regulations

DesignationStandards/regulations
Standards/regulationsEN 50178
Rated insulation voltage250 V AC
Rated surge voltage6 kV
InsulationSafe isolation, reinforced insulation
Degree of pollution2
Overvoltage categoryIII
Flammability rating according to UL 94V0
UL, USAUL 508
UL 508 Recognized
UL, USA/CanadacUL 508
cUL 508 Recognized

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
