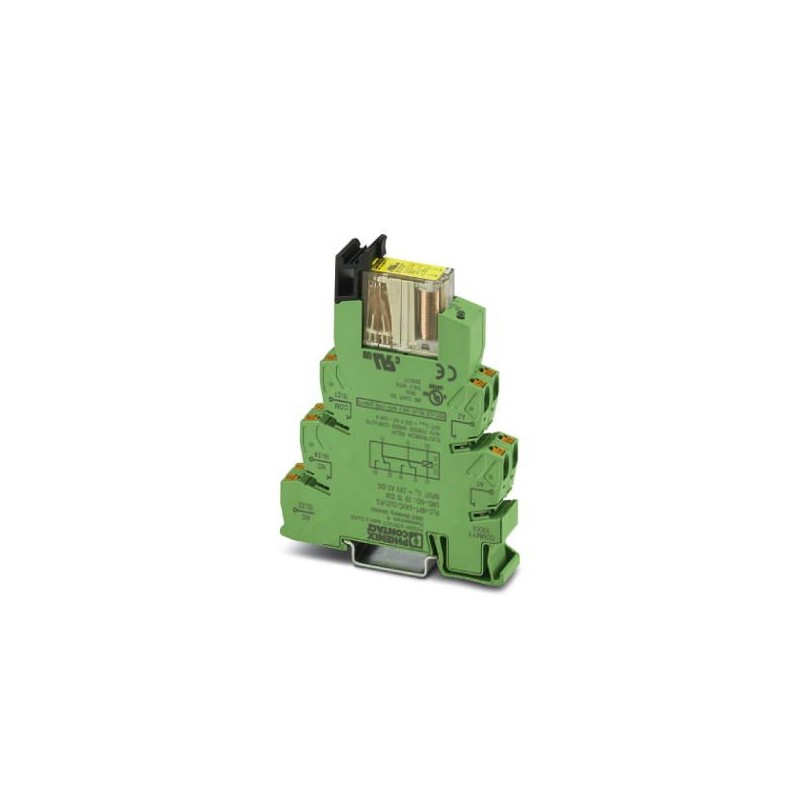

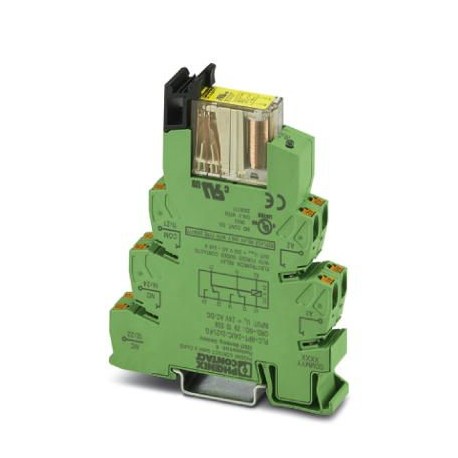

PLC-RPT- 24UC/2X21/FG 2910539 PHOENIX CONTACT Relay Module
PLC-RPT-24UC/2X21/FG
2910539
PHOENIX_CONTACT
10
Relay Module
PLC-INTERFACE, consisting of relay socket and plug-in safety relay with forced conduction contacts according to DIN EN 61810-3, Push-in connection, 2 inverter contacts, with forced guide, Rectifier bridge, Input voltage: 24 V AC/DC
Relays > Switching relay
Industrial Relays
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Often bought together
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2910539 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626486062 |
| Weight per Piece (excluding packing) | 64.000 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 85 °C |
Coil side
| Nominal input voltage UN | 24 V AC/DC |
|---|---|
| Input voltage range in reference to UN | see diagram |
| Typical input current at UN | 30 mA |
| Typical response time | 3 ms ... 15 ms |
| Typical release time range | 3 ms ... 15 ms |
| Coil voltage | 24 V DC |
| Protective circuit | Bridge rectifier |
| Operating voltage display | Yellow LED |
Contact side
| Contact type | 2 changeover contacts, forcibly actuated |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Force-guided contacts in accordance with EN 50205 | Type B |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 5 V (10 mA) |
| Min. switching current | 10 mA (5 V) |
| Maximum inrush current | 6 A |
| Limiting continuous current | 6 A |
| Interrupting rating (ohmic load) max. | 144 W (24 V DC) |
| 288 W (48 V DC) | |
| 88 W (110 V DC) | |
| 110 W (220 V DC) | |
| 1500 VA (250 V AC) | |
| Switching capacity min. | 150 mW |
| Switching capacity | 3 A (24 V, DC13) |
| 3 A (230 V, AC15) |
Connection data input side
| Connection name | Coil side |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| 0.2 mm² ... 2.5 mm² () | |
| 2x 0.5 mm² ... 1 mm² () | |
| Conductor cross section AWG | 26 ... 14 |
Connection data output side
| Connection name | Contact side |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| 0.2 mm² ... 2.5 mm² () | |
| 2x 0.5 mm² ... 1 mm² () | |
| Conductor cross section AWG | 26 ... 14 |
General
| Test voltage relay winding/relay contact | 4 kVrms(50 Hz, 1 min.) |
|---|---|
| Test voltage PDT/PDT | 2.5 kVrms(50 Hz, 1 min.) |
| Operating mode | 100% operating factor |
| Degree of protection | IP20 (Relay base) |
| RT II (Relay) | |
| Mechanical service life | approx. 107cycles |
| UL, USA | UL 508 |
| UL 508 Recognized | |
| UL, USA/Canada | cUL 508 |
| cUL 508 Recognized | |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| B10d | 600000 Cycles (AC1; 250 V / 6 A; 1 NO) |
| 900000 Cycles (AC1; 250 V / 3 A; 1 NO) | |
| 1800000 Cycles (AC1; 250 V / 1,5 A; 1 NO) | |
| 180000 Cycles (AC15; 250 V / 3 A; 1 NO) | |
| 560000 Cycles (AC15; 250 V / 2 A; 1 NO) | |
| 4600000 Cycles (AC15; 250 V / 0,75 A; 1 NO) | |
| 360000 Cycles (DC13; 24 V / 3 A; 1 NO) | |
| 740000 Cycles (DC13; 24 V / 1,5 A; 1 NO) | |
| 4200000 Cycles (DC13; 24 V / 0,75 A; 1 NO) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Articles in set
Classifications
eCl@ss 5.027371601eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027371601eCl@ss 8.027371601eCl@ss 9.027371601
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Other |
| Complete with socket (EF003359) | Yes |
| With detachable clamps (EF003340) | No |
| With LED indication (EF005950) | Yes |
| Rated control supply voltage AC 50 Hz (EF003978) | 20.9 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 20.9 V |
| Rated control supply voltage DC (EF003980) | 20.9 V |
| Voltage type for actuating (EF008242) | AC/DC |
| Drive, polarization (EF003355) | Polarized |
| Drive, switching attitude (EF003356) | Mono stable |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as change-over contact (EF008257) | 2 |
| Type of switch contact (EF003358) | Single contact |
| With forced-guided contacts (EF003357) | Yes |
| Material of contact insert (EF008521) | Other |
| Material of contact surface (EF004020) | Untreated |
| Nominal current (EF000001) | 0.03 A |
| Degree of protection (IP) (EF005474) | IP20 |
| Width (EF000008) | 14 mm |
| Height (EF000040) | 80 mm |
| Depth (EF000049) | 104 mm |
Datasheet - PDF
