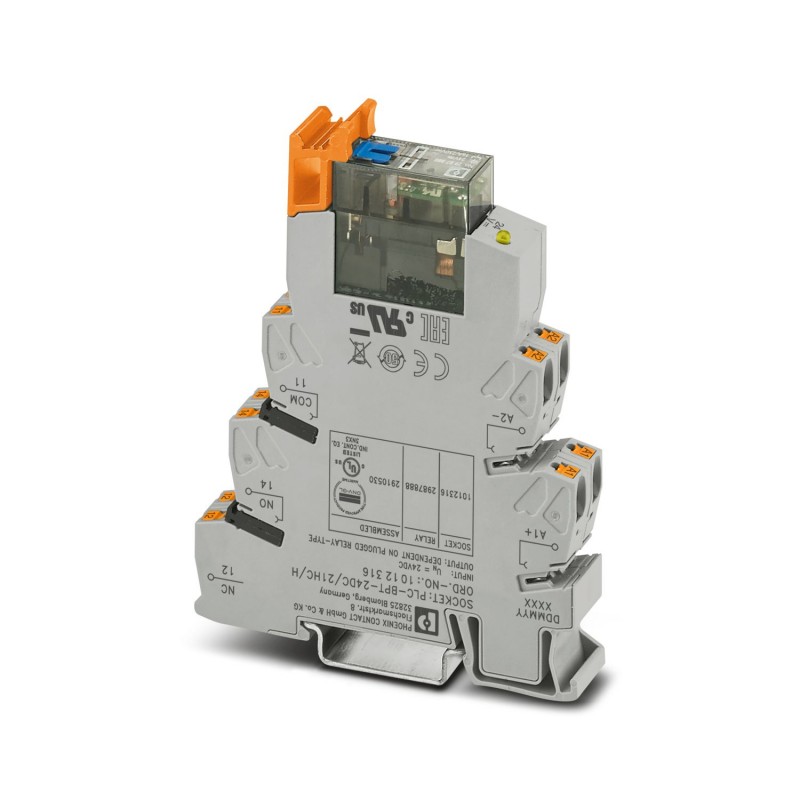

PHOENIX CONTACT PLC-RPT-24DC/21HC/MS 2910530 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

PLC-RPT- 24DC/21HC/MS 2910530 PHOENIX CONTACT Relay Module

Reference: PLC-RPT-24DC/21HC/MS

Code: 2910530

Manufacturer: PHOENIX CONTACT

Description:

Relay Module
PLC-INTERFACE, composed of socket relay and relay with plug-in power contact with manual activation, integrated status LED and free-flowing diode, push-in connection, 1 switch, Diode against inv. Polarity, Free-flowing diode, Input voltage: 24 VDC
PLC-INTERFACE, consisting of a relay base and pluggable power contact relay with manual operation, integrated status LED and freewheeling diode, Push-in connection, 1 changeover contact, Polarity protection diode, Freewheeling diode, Input voltage: 24 V DC

Categories:

  • Relays > Switching relay
  • PHOENIX CONTACT > Industrial Relays

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 268,30 €

Unit Price: 26,83 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical data
Product properties
Product typeRelay Module
Product familyPLC-INTERFACE
ApplicationPalm switch
High continuous currents
Operating mode100% operating factor
Mechanical service life5x 106cycles
Data management status
Date of last data management08.07.2024
Article revision03
Insulation characteristics
InsulationSafe isolation, reinforced insulation
Overvoltage categoryIII
Pollution degree2
Electrical properties
Maximum power dissipation for nominal condition0.44 W
Test voltage (Winding/contact)4 kVrms(50 Hz, 1 min., winding/contact)
Rated insulation voltage250 V AC
Rated surge voltage6 kV
Input data
Coil side
Nominal input voltage UN24 V DC
Input voltage range20.2 V DC ... 33.6 V DC (20 °C)
Nominal voltage (plugged-in electromechanical relay)24 V DC
Drive and functionmonostable
Drive (polarity)polarized
Typical input current at UN18 mA
Typical response time10 ms
Typical release time10 ms
Protective circuitReverse polarity protection; Polarity protection diode
Surge protection; Freewheeling diode
Operating voltage displayYellow LED
Output data
Switching
Contact switching type1 changeover contact
Type of switch contactSingle contact
Contact materialAgNi
Maximum switching voltage250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...)
Minimum switching voltage12 V (10 mA)
Limiting continuous current10 A
Maximum inrush current24 A (20 ms)
Min. switching current10 mA (12 V)
Interrupting rating (ohmic load) max.264 W (24 V DC)
62 W (48 V DC)
48 W (60 V DC)
52 W (110 V DC)
66 W (220 V DC)
2750 VA (250 V AC)
Switching capacity2 A (24 V, DC13)
3 A (230 V, AC15)
Connection data
Connection methodPush-in connection
Stripping length10 mm
Conductor cross section rigid0.14 mm² ... 2.5 mm²
Conductor cross section flexible0.14 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm² (Single ferrule)
2x 0.5 mm² ... 1 mm² (TWIN ferrule)
Conductor cross section AWG26 ... 14
Dimensions
Width14 mm
Height80 mm
Depth104 mm
Material specifications
Colorgray (RAL 7042)
Flammability rating according to UL 94V0 (Housing)
Environmental and real-life conditions
Ambient conditions
Degree of protection (Relay)RT II (Relay)
Degree of protection (Relay base)IP20 (Relay base)
Degree of protection (Installation location)≥ IP54 (Installation location)
Ambient temperature (operation)-40 °C ... 60 °C
Ambient temperature (storage/transport)-20 °C ... 85 °C
Altitude≤ 2000 m
Approvals
CE
CertificateCE-compliant
UKCA
CertificateUKCA-compliant
UL, USA
IdentificationUL 508
UL 508 Recognized
UL, USA/Canada
IdentificationUL 508
UL 508 Recognized
Shipbuilding approval
CertificateTAE0000196
Corrosive gas test
IdentificationISA-S71.04. G3 Harsh Group
EN 60068-2-60
DNV GL data
TemperatureD
HumidityA
VibrationB/C
EMCB
EnclosureRequired protection according to the Rules shall be provided upon installation on board
EMC data
Electromagnetic compatibilityConformance with EMC directive
Low Voltage DirectiveConformance with Low Voltage Directive
Standards and regulations
Standards/regulationsIEC 60947-5-1
Mounting
Mounting typeDIN rail mounting
Assembly notein rows with zero spacing
Mounting positionany

ETIM for 2910530 Relays (EC001437)

Feature nameType of electric connection (EF003961)
Feature valueOther
Feature nameComplete with socket (EF003359)
Feature valueYes
Feature nameWith detachable clamps (EF003340)
Feature valueNo
Feature nameWith LED indication (EF005950)
Feature valueYes
Feature nameRated control supply voltage DC (EF003980)
Feature value20.2 V
Feature nameVoltage type for actuating (EF008242)
Feature valueDC
Feature nameDrive, polarization (EF003355)
Feature valuePolarized
Feature nameDrive, switching attitude (EF003356)
Feature valueMono stable
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value0
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value0
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value1
Feature nameType of switch contact (EF003358)
Feature valueSingle contact
Feature nameWith forced-guided contacts (EF003357)
Feature valueNo
Feature nameMaterial of contact insert (EF008521)
Feature valueOther
Feature nameMaterial of contact surface (EF004020)
Feature valueUntreated
Feature nameNominal current (EF000001)
Feature value0.018 A
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameWidth (EF000008)
Feature value14 mm
Feature nameHeight (EF000040)
Feature value80 mm
Feature nameDepth (EF000049)
Feature value104 mm
