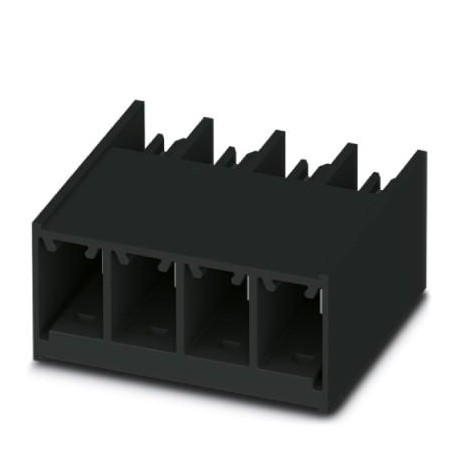

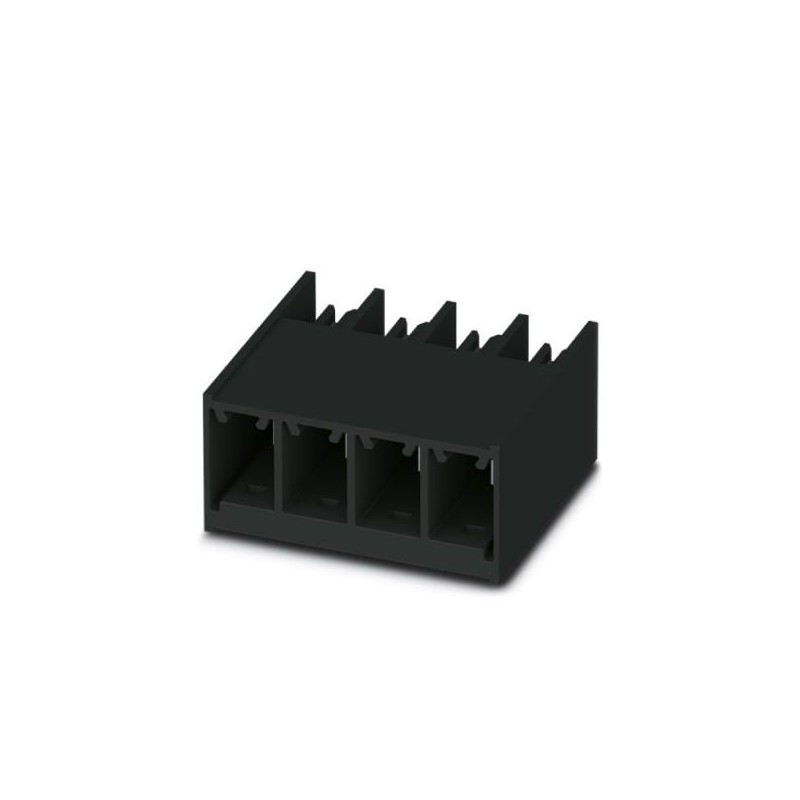

PC 6/ 3-G1-7,62 BK 1717017 PHOENIX CONTACT Printed-circuit board connector
PC 6/ 3-G1-7,62 BK
1717017
PHOENIX_CONTACT
25
Printed-circuit board connector
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1717017 |
|---|---|
| Packing unit | 25 pc |
| Minimum order quantity | 25 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626514949 |
| Weight per Piece (excluding packing) | 8.450 g |
| Custom tariff number | 85366930 |
| Country of origin | CN (China) |
Item properties
| Brief article description | Printed-circuit board connector |
|---|---|
| Plug-in system | POWER COMBICON 6 |
| Type of contact | Male connector |
| Range of articles | PC 6/..-G1 |
| Pitch | 7.62 mm |
| Number of positions | 3 |
| Mounting type | Wave soldering |
| Number of levels | 1 |
Electrical parameters
| Rated current | 41 A |
|---|---|
| Rated insulation voltage (III/2) | 630 V |
| Rated surge voltage (III/2) | 6 kV |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Contact material | Cu alloy |
| Surface characteristics | Tin-plated |
| Metal surface contact area (top layer) | Tin (2 - 4 µm Sn) |
| Metal surface contact area (middle layer) | Nickel (1.3 - 3 µm Ni) |
| Metal surface soldering area (top layer) | Tin (2 - 4 µm Sn) |
| Metal surface soldering area (middle layer) | Nickel (1.3 - 3 µm Ni) |
Material data - housing
| Insulating material | PA GF |
|---|---|
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
Dimensions for the product
| Length [ l ] | 28.2 mm |
|---|---|
| Width [ w ] | 23.26 mm |
| Height [ h ] | 16.1 mm |
| Pitch | 7.62 mm |
| Height (without solder pin) | 13.5 mm |
| Solder pin [P] | 2.6 mm |
| Pin dimensions | 0.8 x 1 mm |
| Dimension a | 15.24 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 25 |
| Denomination packing units | Pcs. |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C |
Termination and connection method
| Conductor connection test | The stripped-off ends of the largest conductor can be completely inserted in the opening of the terminal point without using excessive force. |
|---|---|
| Test result | Test passed |
| Test – repeated connection and release | IEC 60998-2-3:2002-12 |
| Test passed | |
| Test for conductor damage and slackening | IEC 60998-2-3:2002-12 |
| Test passed |
Pull-out test
| Pull-out test | IEC 60998-2-3:2002-12 |
|---|---|
| Test passed | |
| Conductor cross section / conductor type / tensile force | 16 mm² / flexible / > 100 N |
Mechanical tests according to standard
| Test specification | IEC 61984 |
|---|---|
| Visual examination | Test passed IEC 60512-1-1:2002-02 |
| Dimensional test | Test passed IEC 60512-1-2:2002-02 |
| Resistance of marking | Test passed IEC 60068-2-70:1995-12 |
| Result | Test passed |
| Specification | IEC 60512-13-2:2006-02 |
| No. of cycles | 25 |
| Insertion strength per pos. approx. | 13 N |
| Withdraw strength per pos. approx. | 16 N |
| Polarization and coding | Test passed IEC 60512-13-5:2006-02 |
| Result | Test passed |
| Specification | IEC 60512-15-1:2008-05 |
| Test force per pos. | 20 N |
Air clearances and creepage distances
| Specification | IEC 60664-1:2007-04 |
|---|---|
| Insulating material group | I |
| Voltage | 630 V |
| Rated insulation voltage (III/3) | 630 V |
| Rated insulation voltage (III/2) | 630 V |
| Rated insulation voltage (II/2) | 1000 V |
| Rated surge voltage (III/3) | 6 kV |
| Rated surge voltage (III/2) | 6 kV |
| Rated surge voltage (II/2) | 6 kV |
Temperature cycles
| Specification | IEC 60998-2-3:2002-12 |
|---|---|
| Test current (minimum cross section) | 32 A DC |
| Temperature cycles | 384 |
Mechanical tests (A)
| Test specification | IEC 61984 |
|---|---|
| Insertion strength per pos. approx. | 13 N |
| Withdraw strength per pos. approx. | 16 N |
| Polarization when inserted requirement >20 N | Test passed |
| Contact holder in insert requirements >20 N | Test passed |
Durability tests (B)
| Specification | IEC 60512-9-1:2010-03 |
|---|---|
| Contact resistance R1 | 0.7 mΩ |
| Insertion/withdrawal cycles | 25 |
| Contact resistance R2 | 0.7 mΩ |
| Impulse withstand voltage at sea level | 9.8 kV |
| Power-frequency withstand voltage | 4.26 kV |
Climatic tests (D)
| Specification | ISO 6988:1985-02 |
|---|---|
| Cold stress | -40 °C/2 h |
| Thermal stress | 100 °C/168 h |
| Corrosive stress | 0.2 dm3SO2on 300 dm3/40 °C/1 cycle |
| Impulse withstand voltage at sea level | 9.8 kV |
| Power-frequency withstand voltage | 4.26 kV |
Environmental and durability tests (E)
| Specification | IEC 61984:2008-10 |
|---|---|
| Result, degree of protection, IP code | Finger safety with IP20 test finger |
