PHOENIX CONTACT Industrial RelaysOPT- 5DC/230AC/ 1 2982139 PHOENIX CONTACT Miniature solid-state relay

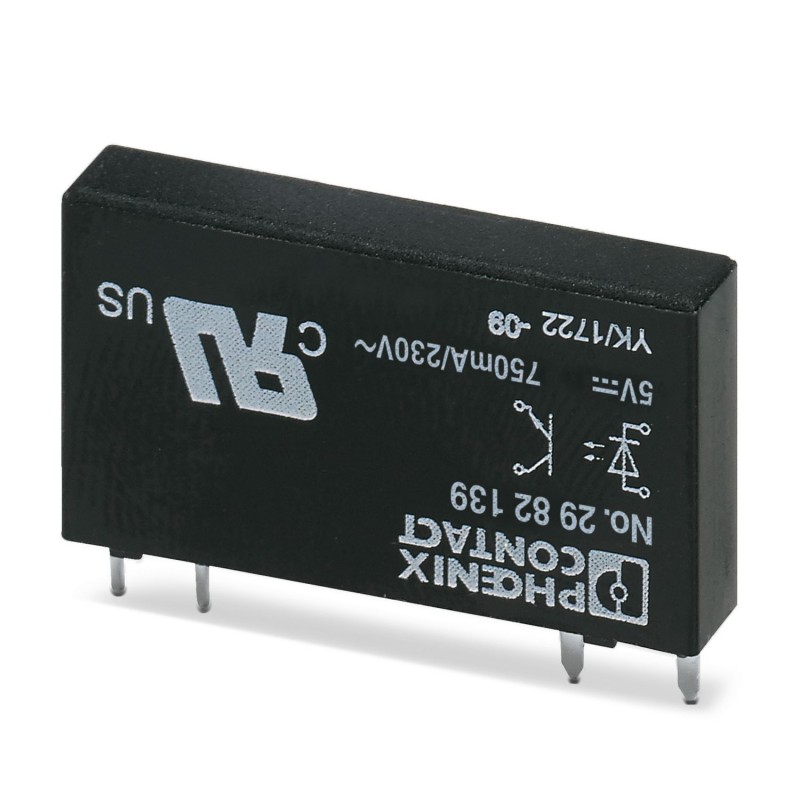

PHOENIX CONTACT OPT-5DC/230AC/ 1 2982139 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

OPT- 5DC/230AC/ 1 2982139 PHOENIX CONTACT Miniature solid-state relay

Reference: OPT-5DC/230AC/ 1

Code: 2982139

Manufacturer: PHOENIX CONTACT

Product on demand only, returns will not be accepted.

Description:

Miniature solid-state relay
Plug-in miniature solid-state relay, power solid-state relay, 1 closing contact, input: 5 V DC, output: 24-253 V AC/ 0.75 A
Plug-in miniature solid-state relay, power solid-state relay, 1 N/O contact, input: 5 V DC, output: 24 - 253 V AC/0.75 A

Categories:

  • Relays > Optocoupler
  • PHOENIX CONTACT > Industrial Relays

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 230,31 €

Unit Price: 23,032 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical data
Product properties
Product typeSingle solid-state relay
Operating mode100% operating factor
Data management status
Date of last data management07.10.2024
Article revision00
Insulation characteristics: Standards/regulations
Overvoltage categoryIII
Pollution degree2
Electrical properties
Standards/regulations
Rated insulation voltage260 V AC
Rated surge voltage4 kV (Basic insulation)
Input data
Nominal input voltage UN5 V DC
Input voltage range in reference to UN0.8 ... 1.2
Input voltage range4 V DC ... 6 V DC
Switching threshold "0" signal in reference to UN0.2
Switching threshold "1" signal in reference to UN0.6
Typical input current at UN7 mA
Typical response time10 ms
Typical turn-off time10 ms
Transmission frequency10 Hz
Output data
Contact switching type1 N/O contact
Design of digital outputelectronic
Output voltage range24 V AC ... 253 V AC
Limiting continuous current0.75 A (see derating curve)
Maximum inrush current30 A (10 ms)
Min. load current10 mA
Leakage current< 1 mA (in off state)
Phase angle cos phi min0.5
Max. load value4.5 A2s
Voltage drop at max. limiting continuous current< 1 V
Output circuit2-conductor floating, zero voltage switch
Protective circuitRCV circuit; RCV circuit
Dimensions
Dimensional drawingwtquijwsio.jpg
Width5 mm
Height28 mm
Depth15 mm
Material specifications
Colorblack (RAL 9005)
Environmental and real-life conditions
Ambient conditions
Degree of protectionRT III
Ambient temperature (operation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-25 °C ... 75 °C
Approvals
Corrosive gas test
IdentificationISA-S71.04. G3 Harsh Group
EN 60068-2-60
Standards and regulations
Standards/regulations
Standards/regulationsIEC 60664
EN 50178
Mounting
Assembly notein rows with zero spacing
Mounting positionany

ETIM for 2982139 Relays (EC001504)

Feature nameInput voltage (EF003840)
Feature value4 V
Feature nameType of voltage (input voltage) (EF003033)
Feature valueDC
Feature nameOutput voltage (EF003933)
Feature value24 V
Feature nameType of output voltage (EF008222)
Feature valueAC
Feature nameRated operation current Ie (EF001443)
Feature value0.75 A
Feature nameType of digital output (EF003601)
Feature valueElectronic
Feature nameWith LED indication (EF005950)
Feature valueNo
