NBC-MSX/0,35-94S SCO RAIL 1580186 PHOENIX CONTACT Network cable, CAT6A Ethernet (10 GBit/s), 8-pole, M12 SPE..

NBC-MSX/0,35-94S SCO RAIL

1580186

PHOENIX_CONTACT

100

Product on demand only, returns will not be accepted.

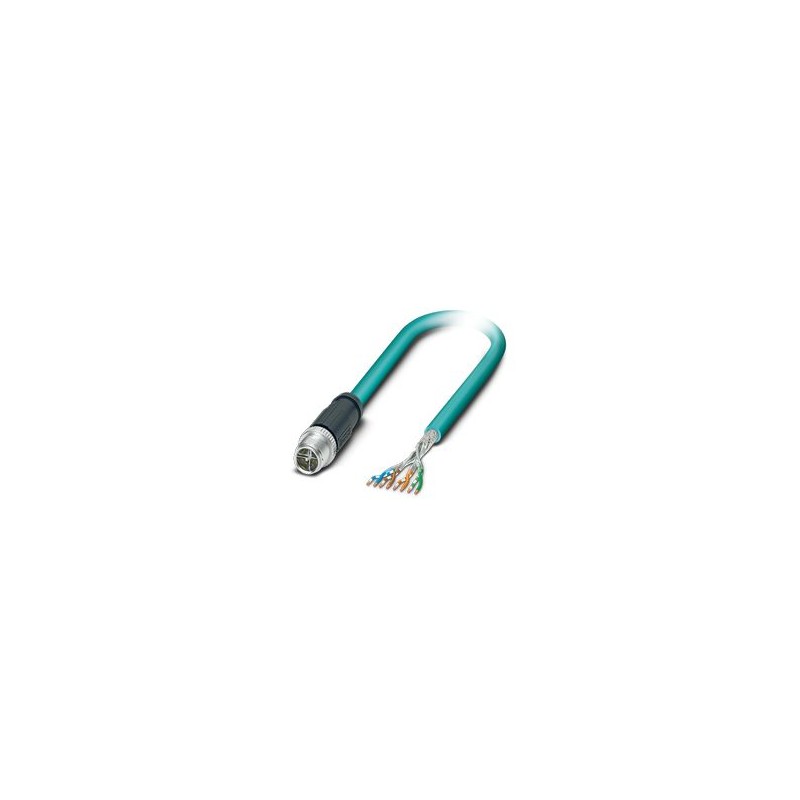

Network cable, CAT6A Ethernet (10 GBit/s), 8-pole, M12 SPEEDCON straight connector, encoding: X, to free cable end, cable length: 0.35 m, For railway applications

Network cable

Network cable, Ethernet CAT6A (10 Gbps), 8-position, Plug straight M12 SPEEDCON, coding: X, on free cable end, cable length: 0.35 m, For railway applications

More details


Sensors > Sensor-actuator patch cord

Industrial Field Connectivity (IFC)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total: $3,540.05
Unit price: $35.40
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data
Product properties
Product typeData cable preassembled
Sensor typeEthernet
Number of positions8
ApplicationNetwork
No. of cable outlets1
Shieldedyes
CodingX
Interfaces
Bus systemEthernet
Signal type/categoryEthernet CAT6A, 10 Gbps
Signaling
Status displayNo
Status display presentNo
Electrical properties
Nominal voltage UN48 V AC
60 V DC
Nominal current IN0.5 A
Transmission mediumCopper
Transmission characteristics (category)CAT6A
Connector
Connection 1
TypePlug straight M12 SPEEDCON
Locking typeSPEEDCON
Coding typeX (Data)
MaterialCuZn (Contact)
Ni/Au (Contact surface)
PP (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
Connection 2
Typefree cable end
Cable/line
Cable length0.35 m
Ethernet BETAtrans®railway application CAT7 [94S]
Dimensional drawingtchxdwnovi.jpg
Shieldedyes
Cable weight59 kg/km
Copper weight28 kg/km
Cable typeEthernet BETAtrans®railway application CAT7
Cable type (abbreviation)94S
Signal type/categoryEthernet CAT7, 10 Gbps
Cable structure4x2xAWG26/7; S/FTP
External cable diameter6.6 mm ±0.2 mm
Outer sheath, materialPE-X
External sheath, colorblack
Conductor materialTin-plated Cu litz wires
Conductor structure signal line7x 0.16 mm
AWG signal line26
Conductor cross section4x 2x 0.14 mm²
Material wire insulationCell PE
Wire diameter incl. insulation1.05 mm ±0.1 mm
Single wire, colorwhite-blue, white-orange, white-green, white-brown
Twisted pairs2 cores to the pair
Type of pair shieldingAluminum-lined polyester foil
Overall twist4 pairs, twisted
ShieldingTinned copper braided shield
Nominal voltage, cable125 V AC (Uo)
Test voltage Core/Core1000 V AC (50 Hz, 1 min.)
Test voltage Core/Shield1000 V AC (50 Hz, 1 min.)
Cable resistance≤ 145 Ω/km
Cable insulation resistance≥ 5 GΩ*km
Coupling resistance5.00 mΩ/m (at 10 MHz)
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Working capacitance44 nF (per kilometer)
Signal runtime4.4 ns/m
Signal speed0.78 c
Interference suppression90 dB (up to 1000 MHz)
Tensile strength≤ 60 N (temporary)
≤ 15 N (Permanent)
Minimum bending radius, fixed installation6 x D
Damping0.25 dB (with 1 MHz)
0.76 dB (at 10 MHz)
2.49 dB (at 100 MHz)
3.69 dB (at 200 MHz)
4.18 dB (at 250 MHz)
5.6 dB (at 500 MHz)
6.74 dB (at 600 MHz)
7.32 dB (at 700 MHz)
7.89 dB (at 800 MHz)
8.5 dB (at 900 MHz)
9.11 dB (at 1000 MHz)
9.5 dB (at 1100 MHz)
9.9 dB (at 1200 MHz)
Near end crosstalk attenuation (NEXT)100 dB (with 1 MHz)
99 dB (at 10 MHz)
95 dB (at 100 MHz)
92 dB (at 200 MHz)
90 dB (at 250 MHz)
83 dB (at 500 MHz)
81 dB (at 600 MHz)
80 dB (at 700 MHz)
77 dB (at 800 MHz)
75 dB (at 900 MHz)
74 dB (at 1000 MHz)
72 dB (at 1100 MHz)
70 dB (at 1200 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)97 dB (with 1 MHz)
96 dB (at 10 MHz)
92 dB (at 100 MHz)
89 dB (at 200 MHz)
87 dB (at 250 MHz)
80 dB (at 500 MHz)
78 dB (at 600 MHz)
77 dB (at 700 MHz)
74 dB (at 800 MHz)
72 dB (at 900 MHz)
71 dB (at 1000 MHz)
69 dB (at 1100 MHz)
67 dB (at 1200 MHz)
Return attenuation (RL)24 dB (with 1 MHz)
33.9 dB (at 10 MHz)
38.3 dB (at 100 MHz)
35.3 dB (at 200 MHz)
32.9 dB (at 250 MHz)
29.7 dB (at 500 MHz)
30.6 dB (at 600 MHz)
31 dB (at 700 MHz)
26.7 dB (at 800 MHz)
28.6 dB (at 900 MHz)
27.5 dB (at 1000 MHz)
26.9 dB (at 1100 MHz)
26.3 dB (at 1200 MHz)
Shield attenuation60 dB (up to 1000 MHz)
Crosstalk attenuation (ACR)100 dB (with 1 MHz)
99 dB (at 10 MHz)
93 dB (at 100 MHz)
88 dB (at 200 MHz)
86 dB (at 250 MHz)
78 dB (at 500 MHz)
74 dB (at 600 MHz)
72 dB (at 700 MHz)
69 dB (at 800 MHz)
67 dB (at 900 MHz)
65 dB (at 1000 MHz)
63 dB (at 1100 MHz)
61 dB (at 1200 MHz)
Power-summated crosstalk attenuation (PS-ACR)97 dB (with 1 MHz)
96 dB (at 10 MHz)
90 dB (at 100 MHz)
85 dB (at 200 MHz)
83 dB (at 250 MHz)
75 dB (at 500 MHz)
71 dB (at 600 MHz)
69 dB (at 700 MHz)
66 dB (at 800 MHz)
64 dB (at 900 MHz)
62 dB (at 1000 MHz)
60 dB (at 1100 MHz)
58 dB (at 1200 MHz)
Fire protection in rail vehiclesBS 6853 (Internal cable Ia, Ib, II/external cable Ia, Ib, II)
DIN 5510-2 (Fire protection level 1, 2, 3, 4)
EN 45545-2
EN 50306-4
NF F16-101 (Classification C/F1)
NF F16-101 (Internal cable A1, A2, B/external cable A1, A2, B)
NFPA 130
PN-K-02511 (Class A)
UIC 564-2 (Class A)
Halogen-freein accordance with EN 50267-2-1
in accordance with EN 60684-2
Resistance to oilin accordance with EN 50306-4, 72 hours at 100°C, IRM 902
Concentration of fumesEN 61034-2
Flame resistancein accordance with EN 60332-1-2
EN 60332-3-25
in accordance with ISO 14572 5.21 (UN ECE-R 118.01)
Other resistanceResistant to fuel in accordance with EN 50306-4, 168 hours at 70°C, IRM 903
Resistant to ozone in accordance with EN 50306-4, 72 hours at 40°C, method B, volumetric concentration of 200 x 10-6
Special propertiesHL1-HL3
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
Ambient temperature (operation)-25 °C ... 90 °C (M12 connector)
Standards and regulations
M12
Standard designationM12 connector

ETIM for 1580186 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) Other
Positioning cable feed, field-sided (EF005928) Other
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 0.35 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Black
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Rated current In (EF008250) 0.5 A
Rated voltage (EF000228) 48 V
