NBC-500,0-94E 1408572 PHOENIX CONTACT Cable ring, bus system cable, Ethernet, 8-wire, shielded, FRNC, blue o..
NBC-500,0-94E
1408572
PHOENIX_CONTACT

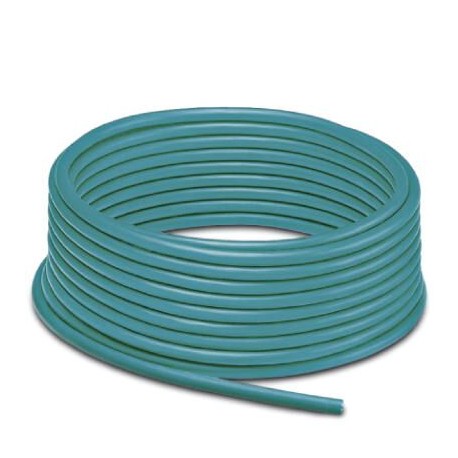

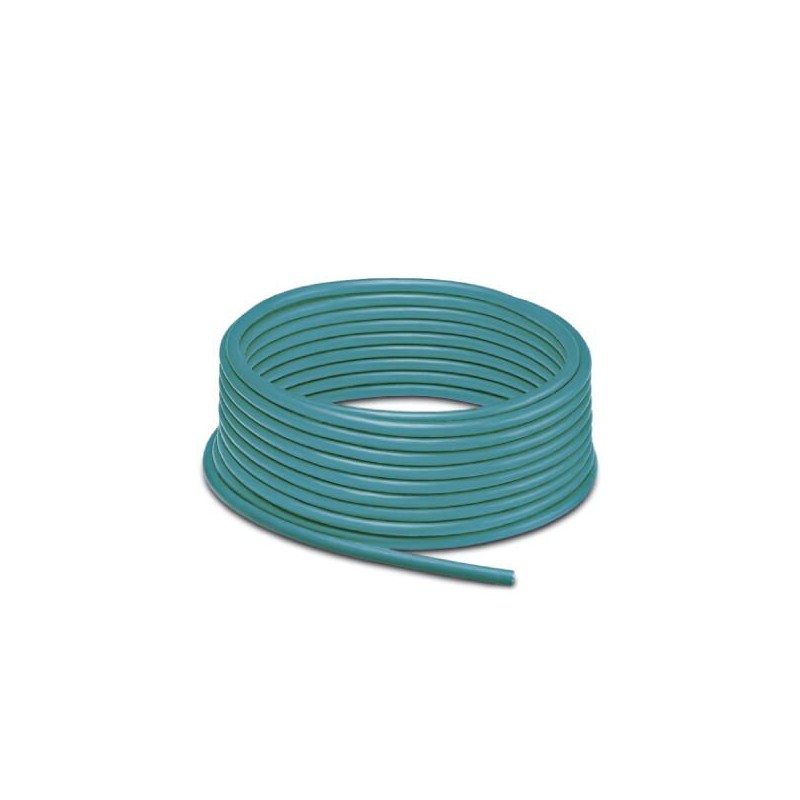

Cable ring, bus system cable, Ethernet, 8-wire, shielded, FRNC, blue outer sheath, 4 x 2 x AWG 23/1, cable length: 500 m
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲
General data
| Rated voltage | 30 V AC |
|---|---|
| 30 V DC | |
| Number of positions | 8 |
| Signal type/category | Ethernet CAT7, 10 Gbps |
Cable
| Cable type | Ethernet |
|---|---|
| Cable type (abbreviation) | 94E |
| UL AWM style | 10797 (80°C/30 V) |
| Signal type/category | Ethernet CAT7, 10 Gbps |
| Cable structure | 4x2xAWG23/1; S/FTP |
| Conductor cross section | 4x 2x 0.3 mm² |
| AWG signal line | 23 |
| Conductor structure signal line | 1x |
| Core diameter including insulation | 1.45 mm ±0.05 mm |
| Wire colors | White-blue, white-orange, white-green, white-brown |
| Twisted pairs | 2 cores to the pair |
| Type of pair shielding | Aluminum-lined polyester foil |
| Overall twist | 4 pairs, twisted |
| Shielding | Aluminum-lined polyester foil, tinned copper braided shield |
| Optical shield covering | 65 % |
| External sheath, color | water blue RAL 5021 |
| External cable diameter D | 8 mm ±0,3 mm |
| Smallest bending radius, fixed installation | 30 mm |
| Smallest bending radius, movable installation | 60 mm |
| Tensile strength GRP | 80 N |
| Cable weight | 55 kg/km |
| Copper weight | 32.8 kg/km |
| Outer sheath, material | FRNC |
| Material conductor insulation | Foamed PE |
| Conductor material | Bare Cu wire |
| Insulation resistance | > 5 GΩ*km |
| Conductor resistance | < 75 Ω/km |
| Cable capacity | < 56 nF/km |
| Wave impedance | 100 Ω ±5 Ω (at 100 MHz) |
| Signal speed | 0.6 c |
| Signal runtime | 5.7 ns/m |
| Cable impedance | < 5 mΩ (with 1 MHz) |
| < 5 mΩ (at 10 MHz) | |
| < 30 mΩ (at 30 MHz) | |
| < 100 mΩ (at 100 MHz) | |
| Nominal voltage, cable | 30 V AC |
| Test voltage Core/Core | 2500 V DC |
| Flame resistance | according to IEC 60332-3-24 (Cat. C ) |
| Halogen-free | According to IEC 60754-2 |
| Resistance to oil | according to IEC 60811-2-1 |
| Concentration of fumes | in accordance with IEC 61034 |
| Ambient temperature (operation) | -20 °C ... 80 °C (Cable) |
| Ambient temperature (installation) | 0 °C ... 50 °C |
