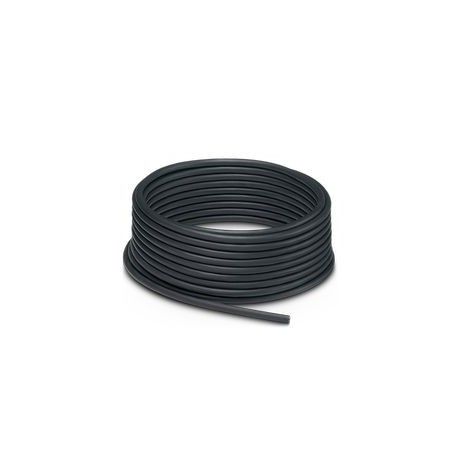

NBC-100,0- 97B 1583499 PHOENIX CONTACT By meters, Cable ring, Single Pair Ethernet, shielded, PVC, black, 2-..
NBC-100,0-97B
1583499
PHOENIX_CONTACT
Product on demand only, returns will not be accepted.
By meters, Cable ring, Single Pair Ethernet, shielded, PVC, black, 2-conductors (1 x 2 x AWG 22/7, S/FTP), color single conductors: white, blue, cable length: 100 m
Network cable
By the meter, Cable reel, Single Pair Ethernet, shielded, PVC, black, 2-wire (1 x 2 x AWG 22/7, S/FTP), color single wire: white, blue, cable length: 100 m
Cables > Data and communication cable
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Data cable by the meter |
| Sensor type | Single Pair Ethernet |
| Number of positions | 2 |
| Application | Standard |
| Shielded | yes |
| Nominal voltage UN | 72 V DC |
| Transmission medium | Copper |
| Cross section AWG | (converted acc. to IEC) |
| Bus system | Ethernet |
| Signal type/category | Single Pair Ethernet, 10 Mbps |
| Cable length | 100 m |
| Single Pair Ethernet PUR flexible, black [97B] | |
| Dimensional drawing |  |
| Shielded | yes |
| UL AWM Style | 2095 (80°C/300 V) |
| Cable type | Single Pair Ethernet PUR flexible, black |
| Cable type (abbreviation) | 97B |
| Signal type/category | Single Pair Ethernet |
| Cable structure | 1 x 2 x AWG 22/7, S/FTP |
| External cable diameter | 5.1 mm ±0.2 mm |
| Outer sheath, material | PVC |
| External sheath, color | black |
| Thickness, outer sheath | 0.55 mm |
| Conductor material | Tin-plated Cu litz wires |
| Conductor structure signal line | 7x |
| AWG signal line | 22 |
| Conductor cross section | 2x 0.34 mm² |
| Material wire insulation | Foamed PE |
| Wire diameter incl. insulation | 1.65 mm |
| Single wire, color | white, blue |
| Twisted pairs | 2 cores to the pair |
| Overall twist | 1 pair with fillers twisted horizontally |
| Shielding | Aluminum-coated foil, tinned copper braided shield |
| Optical shield covering | 80 % |
| Nominal voltage, cable | 300 V |
| Cable resistance | ≤ 59.4 Ω/km |
| Cable insulation resistance | ≥ 5 GΩ*km |
| Wave impedance | 100 Ω ±15 Ω (at 20 МHz) |
| Minimum bending radius, fixed installation | 4 x D |
| Flame resistance | According to FT-2 |
| Ambient temperature (operation) | -20 °C ... 80 °C (cable, fixed installation) |
| Feature Name | Feature Value |
|---|---|
| Conductor surface (EF010804) | Other |
| Diameter conductor (EF001621) | 1.65 mm |
| Nominal cross section conductor (EF000060) | 0.34 mm² |
| Conductor category (EF001632) | Class 2 = stranded |
| Number of cores (EF001792) | 2 |
| Material core insulation (EF000061) | Other |
| Specification core insulation (EF011805) | Other |
| Core identification (EF000067) | Other |
| Screen over stranding element (EF001623) | Foil + braiding |
| Stranding (EF003802) | Other |
| Longitudinal water blocking cable (EF011011) | No |
| Radial water blocking cable (EF011012) | No |
| Suitable for underground installation (EF003689) | No |
| Protective sheath (EF001691) | None |
| Material outer sheath (EF001625) | Polyvinyl chloride (PVC) |
| Specification material outer sheath (EF011806) | Other |
| Colour outer sheath (EF001618) | Black |
| Low smoke according to EN IEC 61034-2 (EF003799) | No |
| Oil resistant according to EN IEC 60811-404 (EF009770) | No |
| Outer diameter approx. (EF003921) | 5.1 mm |
| Min. permitted bending radius, stationary application/permanent installation (EF011803) | 21 mm |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -20 °C |
| Category (EF001619) | Other |
