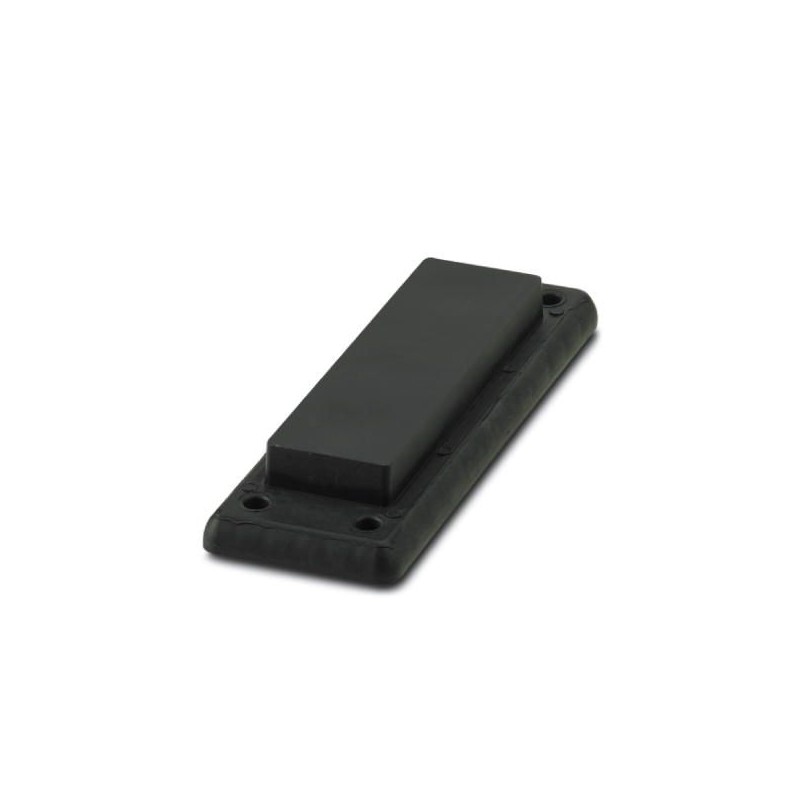

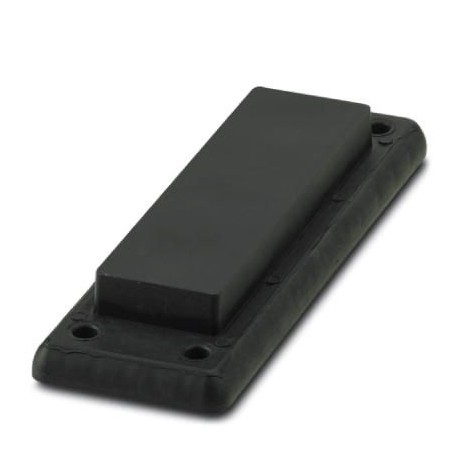

MH-10CL-MULTI-55-PV-BK 1424584 PHOENIX CONTACT Cable feed-through plates
MH-10CL-MULTI-55-PV-BK
1424584
PHOENIX_CONTACT
Cable feed-through plates
Plates for cable passage, number of conductors: 10, outer diameter of the cable: 6x 2 mm ... 8mm, 2x 2mm... 18mm, 2x 2mm... 30 mm, material: PP (Core), material: TPE-SEBS (outer material), color: black, length: 154 mm, width: 56 mm, height: 20 mm
Cable carrying systems > Mounting plate for cable support system
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1424584 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 690 (C-2-2017) |
| GTIN | 4055626374871 |
| Weight per Piece (excluding packing) | 88.300 g |
| Custom tariff number | 39269097 |
| Country of origin | FI (Finland) |
Dimensions
| Length | 154 mm |
|---|---|
| Width | 56 mm |
| Height | 20 mm |
| Drill hole distance, horizontal | 130 mm |
| Drill hole distance, vertical | 32 mm |
| External cable diameter | 6x 2 mm ... 8 mm |
| 2x 2 mm ... 18 mm | |
| 2x 2 mm ... 30 mm |
General
| No. of conductors | 10 |
|---|---|
| Material | TPE-SEBS |
| PP (Core) | |
| TPE-SEBS (external material) | |
| Flammability rating according to UL 94 | V0 |
| Color | black |
| Note | incl. mounting screws |
| Installation instructions | M4 mounting screw, torque: 1.8 Nm, SW5 Allen key |
| The mounting screws provided are to be used for assembly. Assembly sequence: 1) Attach the cable feed-through (Multigate) using the mounting screws provided (observe torque) 2) Pierce a hole in the membrane (using a screwdriver) 3) Guide the cable through the opening (from the outside) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Plate height (EF005176) | 154 mm |
| Plate width (EF005175) | 56 mm |
| Material (EF002169) | Other |
| Stainless steel, pickled (EF006388) | No |
| Surface protection (EF000139) | Other |
