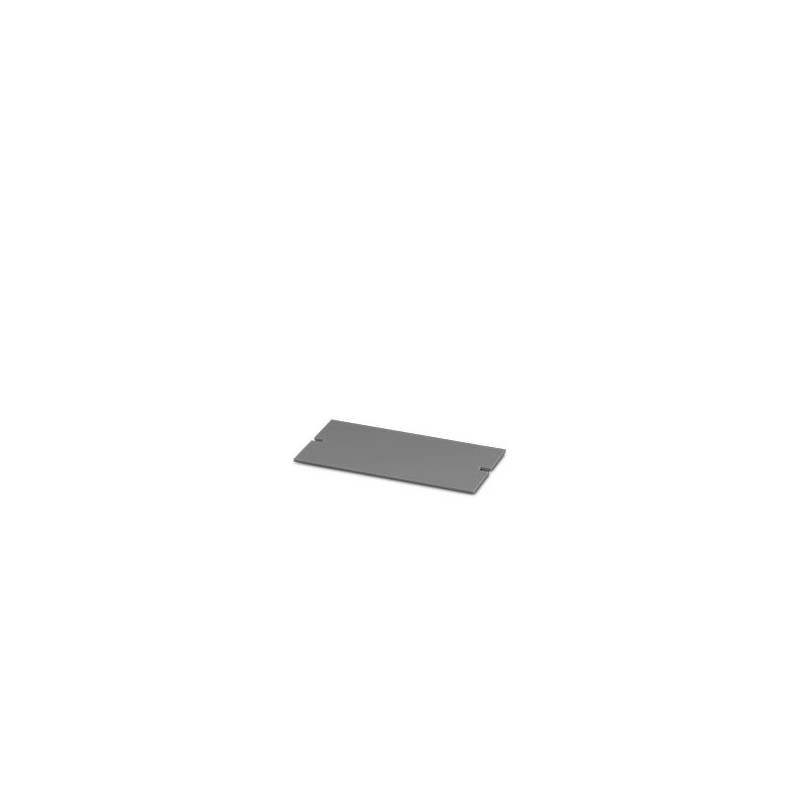

ME MAX 45 PLATE BK 1503132 PHOENIX CONTACT DIN rail box, Insertable blind cover, width: 41.8 mm, height: 73...
ME MAX 45 PLATE BK
1503132
PHOENIX_CONTACT
250
Product on demand only, returns will not be accepted.
DIN rail box, Insertable blind cover, width: 41.8 mm, height: 73.6 mm, depth: 1 mm, colour: black (similar RAL 9005)
Rail box, Insertable blind lid
DIN rail housing, Insertion plate, width: 41.8 mm, height: 73.6 mm, depth: 1 mm, color: black (9005)
Low-voltage industrial components > Extruded profile modular housing
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | Further information and detailed dimensions are available in the download area. |
| Product type | Cover |
| Type | Insertion plate |
| Housing type | DIN rail housing |
| Ventilation openings present | no |
| Housing series | ME-MAX |
| Cross section AWG | (converted acc. to IEC) |
| Width | 41.8 mm |
| Height | 73.6 mm |
| Depth | 1 mm |
| Color | black (9005) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Surface characteristics | untreated |
| Housing material | Polyamide |
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
| Type of PCB mount | Latching |
| Mounting type | Slot |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Black |
| RAL-number (EF000116) | 9005 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
