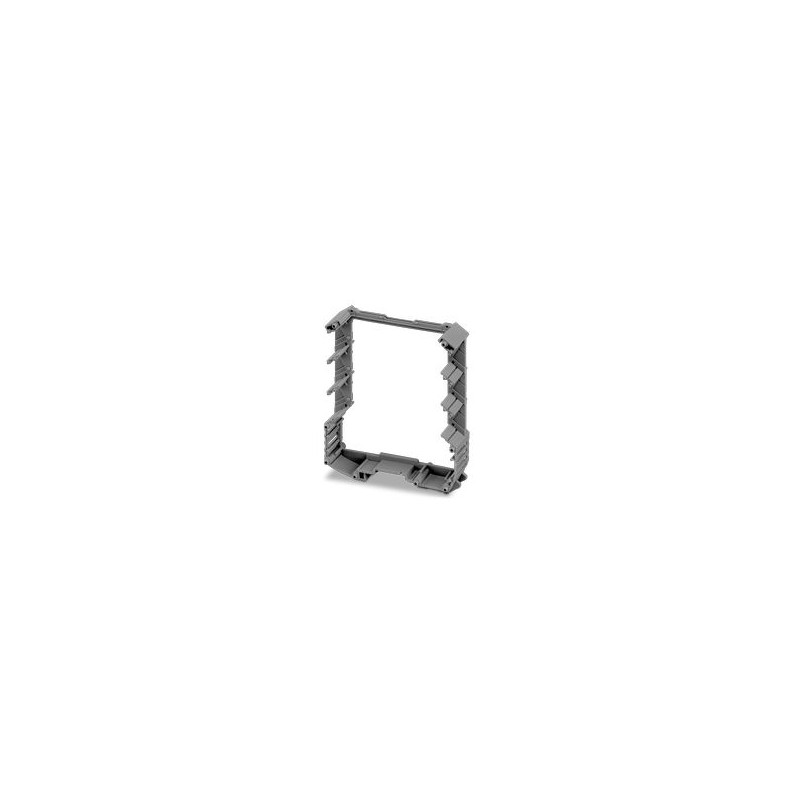

ME MAX 45 MT 3-3 BK 1520001 PHOENIX CONTACT DIN rail box, Intermediate element, high design, with ventilatio..
ME MAX 45 MT 3-3 BK
1520001
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.
DIN rail box, Intermediate element, high design, with ventilation slits, width: 22.6 mm, height: 99 mm, depth: 112.85 mm, color: black (similar RAL 9005)
Rail Box, Intermediate Element
Rail box, Middle element, tall design, with ventilation slits, width: 22.6 mm, height: 99 mm, depth: 112.85 mm, colour: black (7035)
Low-voltage industrial components > Extruded profile modular housing
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | Look at the series datasheet in the download area. |
| Product Type | Full Shell Centerpiece |
| Product Family | ME MAX.. 3-3 |
| Number of rows | 3 |
| Execution | Middle element, tall design |
| Type of housing | Lane box |
| Available ventilation hole | Yes |
| Housing Series | ME-MAX |
| Dimension Scheme |  |
| Width | 22.6 mm |
| Height | 99 mm |
| Depth | 112.85 mm |
| Depth from the top edge of the DIN rail | 107 mm |
| Colour | Black (7035) |
| Flammability class according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Surface Characteristics | Not Treated |
| Shell material | Polyamide |
| Environmental conditions | |
| Maximum achievable IP code | IP20 |
| Ambient Temperature (Service) | -40 °C ... 105 °C (depending on dissipation) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 55 °C |
| Ambient Temperature (Mounting) | -5 °C ... 100 °C |
| Relative humidity of the air (storage/transport) | 80 % |
| Printed Circuit Board Attachment Type | Blockade |
| Type of mounting | Rail mounting |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| RAL-number (EF000116) | 9005 |
| Width (EF000008) | 22.6 mm |
| Height (EF000040) | 99 mm |
| Depth (EF000049) | 112.85 mm |
