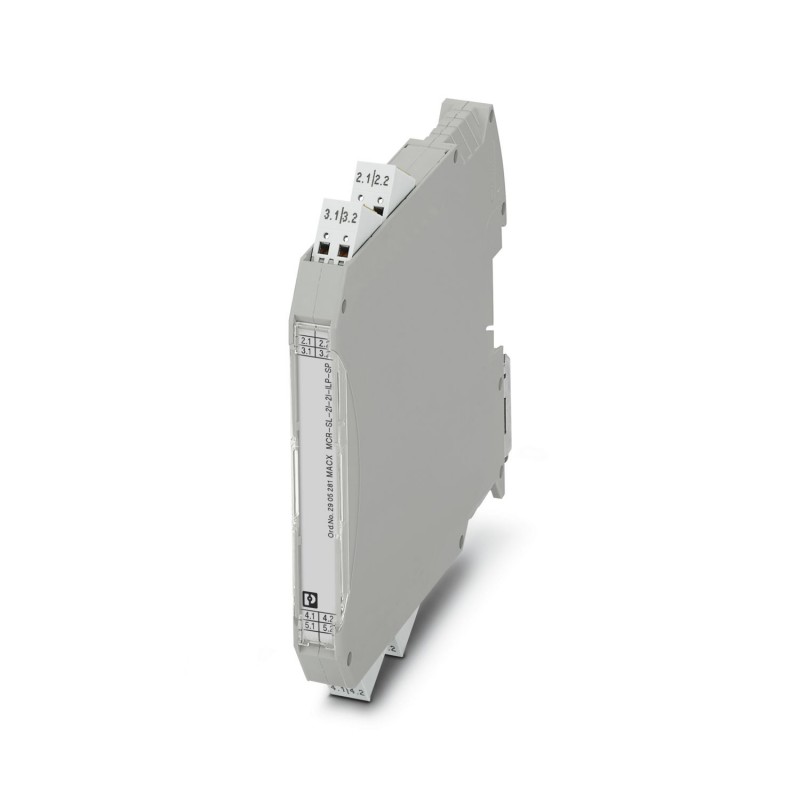

MACX MCR-SL-2I-2I-ILP-SP
2905281
PHOENIX_CONTACT
1
Loop-powered isolators
INTERFACE Components (IF)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 2905281 |
---|---|
Packing unit | 1 pc |
Catalog page | Page 124 (C-5-2017) |
GTIN | 4046356944380 |
Weight per Piece (excluding packing) | 150.000 g |
Custom tariff number | 85437090 |
Country of origin | DE (Germany) |
Ambient temperature (operation) | -40 °C ... 85 °C |
---|---|
Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Maximum altitude | < 2000 m |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Noise immunity | EN 61326-1 |
Signal input | Current input |
---|---|
Configurable/programmable | no |
Max. voltage input signal | < 30.5 V |
Current input signal | 0 mA ... 20 mA |
4 mA ... 20 mA | |
Input voltage limitation | 30.5 V |
Voltage dissipation | 2.9 V (I = 20 mA) |
Step response (10-90%) | 5 ms (500 Ω load) |
Signal output | Current output |
---|---|
Configurable/programmable | no |
Max. voltage output signal | 27.5 V |
Current output signal | 0 mA ... 20 mA |
4 mA ... 20 mA | |
Transmission Behavior | 1:1 to input signal |
Load/output load current output | ≤ 1375 Ω (I = 20 mA) |
Residual ripple | < 10 mVrms(500 Ω load) |
Conductor cross section solid min. | 0.2 mm² |
---|---|
Conductor cross section solid max. | 1.5 mm² |
Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 1.5 mm² |
Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 16 |
Stripping length | 8 mm |
Connection method | Push-in connection |
No. of channels | 2 |
---|---|
Maximum transmission error | ≤ 0.1 % (of final value) |
Maximum temperature coefficient | ≤ 0.002 %/K (of measured value / 100 Ω load) |
Flammability rating according to UL 94 | V0 |
Degree of pollution | 2 |
Overvoltage category | II |
Electromagnetic compatibility | Conformance with EMC directive |
Housing material | PA 6.6-FR |
Color | green |
Designation | Input/output/power supply |
Electrical isolation | 300 Vrms(Rated insulation voltage (overvoltage category II; degree of pollution 2, safe isolation as per EN 61010-1)) |
2.5 kV (50 Hz, 1 min., test voltage) | |
Conformance | CE-compliant, additionally EN 61326-1 |
ATEX | II 3 G Ex nA IIC T4 Gc X |
UL, USA/Canada | UL 61010 Listed |
Class I, Div. 2, Groups A, B, C, D T4 | |
Class I, Zone 2, Group IIC T4 | |
SIL | 3 |
Electromagnetic compatibility | Conformance with EMC directive |
---|---|
Noise immunity | EN 61326-1 |
Flammability rating according to UL 94 | V0 |
Conformance | CE-compliant, additionally EN 61326-1 |
ATEX | II 3 G Ex nA IIC T4 Gc X |
UL, USA/Canada | UL 61010 Listed |
Class I, Div. 2, Groups A, B, C, D T4 | |
Class I, Zone 2, Group IIC T4 |
China RoHS | Environmentally Friendly Use Period = 50 |
---|---|
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 27 Mbytes |
