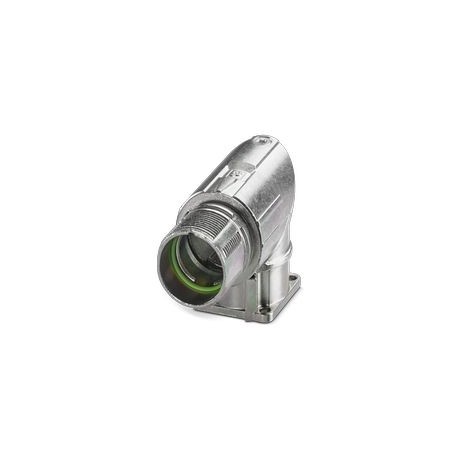

M23-0000000A600S-SIG 1554119 PHOENIX CONTACT Front panel device connector box, series: M23 PRO Signal, swive..

Reference: M23-0000000A600S-SIG

Code: 1554119

Manufacturer: PHOENIX CONTACT

Description:

Front panel device connector box, series: M23 PRO Signal, swivel angle, for standard lock and quick ONECLICK lock, 4x Ø 3.2, note: can only be used in combination with the contact inserts indicated in the accessories. For safety information and installation instructions, see reference article 1629082
Housing
Device connector housing front wall, series: M23 PRO Signal, angled, rotatable, for standard and ONECLICK fast-locking system, 4x Ø 3.2, note: can only be used in combination with the contact inserts listed under accessories; for safety notes and installation notes see reference item 1629082

Categories:

  • Connectors > Housing for circular connectors
  • PHOENIX CONTACT > Field Device Connectors (FDC)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 13,51 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical data

Notes
GeneralOrder contact inserts separately

Product properties
Product typeSleeve housings
SeriesM23 PRO Signal
Pg screw connectionnone

Connection data
Cross section AWG(converted acc. to IEC)

Material specifications
Seal materialFKM
Housing materialGD-Zn

Connector
Typeangled rotatable
Housing
Housing materialGD-Zn
Flange dimensions28 mm x 28 mm
Type of lockingfor standard and ONECLICK fast locking system
Degree of protection (plugged in)IP66 / IP68 (2 m / 24 h)
Thread typeM23

Environmental and real-life conditions
Ambient conditions
Degree of protectionIP66 / IP68 (2 m / 24 h)
Ambient temperature (operation)-40 °C ... 105 °C (see to derating)
Altitude2000 m
