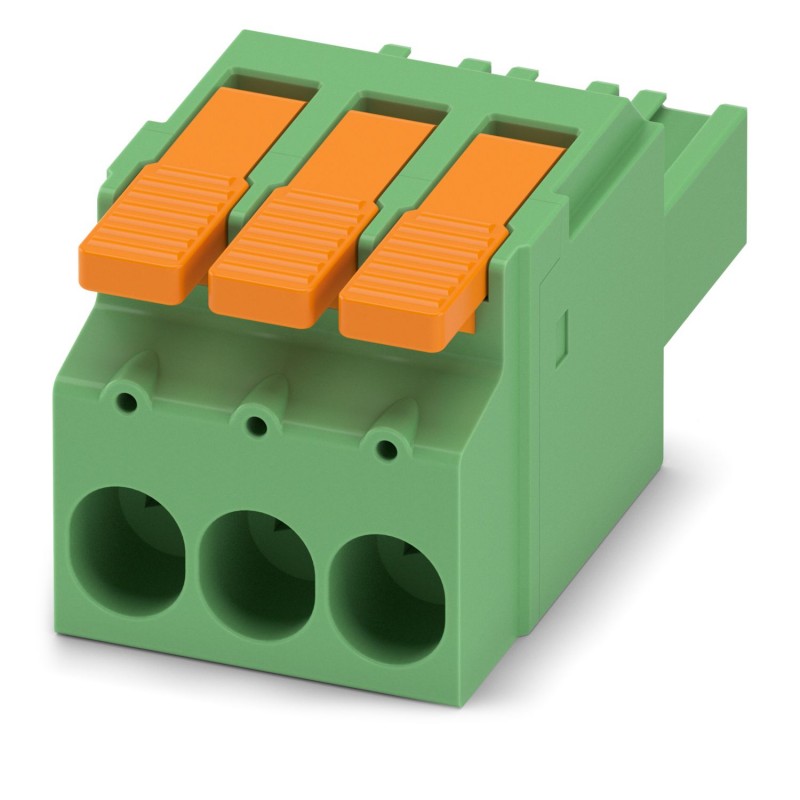

LPC 6/ 3-ST-7,62 1716922 PHOENIX CONTACT Printed-circuit board connector
LPC 6/ 3-ST-7,62
1716922
PHOENIX_CONTACT
25
Printed-circuit board connector
Connectors > Cable connector
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1716922 |
|---|---|
| Packing unit | 25 pc |
| Minimum order quantity | 25 pc |
| GTIN | 4055626513287 |
| Weight per Piece (excluding packing) | 23.000 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
Item properties
| Brief article description | Printed-circuit board connector |
|---|---|
| Plug-in system | POWER COMBICON 6 |
| Type of contact | Female connector |
| Range of articles | LPC 6/..-ST |
| Pitch | 7.62 mm |
| Number of positions | 3 |
| Connection method | Push-in spring connection |
| Locking | without |
| Number of levels | 1 |
Electrical parameters
| Rated current | 41 A |
|---|---|
| Rated insulation voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
Connection capacity
| Conductor cross section solid | 0.75 mm² ... 10 mm² |
|---|---|
| Conductor cross section flexible | 0.75 mm² ... 6 mm² |
| Conductor cross section AWG / kcmil | 18 ... 8 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.75 mm² ... 6 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.75 mm² ... 6 mm² |
| Cylindrical gauge a x b / diameter | 4.3 mm x 4.0 mm / 4.0 mm |
| Stripping length | 18 mm |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Contact material | Cu alloy |
| Surface characteristics | Tin-plated |
| Metal surface terminal point (top layer) | Tin (4 - 8 µm Sn) |
| Metal surface contact area (top layer) | Tin (4 - 8 µm Sn) |
Material data - housing
| Insulating material | PA GF |
|---|---|
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
Material data – actuating element
| Insulating material | PA GF |
|---|---|
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
Dimensions for the product
| Length [ l ] | 48 mm |
|---|---|
| Width [ w ] | 24.86 mm |
| Height [ h ] | 35.65 mm |
| Pitch | 7.62 mm |
| Dimension a | 15.24 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 25 |
| Denomination packing units | Pcs. |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C |
Air clearances and creepage distances
| Specification | IEC 60664-1:2007-04 |
|---|---|
| Insulating material group | I |
| Voltage | 800 V |
| Rated insulation voltage (III/3) | 800 V |
| Rated insulation voltage (III/2) | 1000 V |
| Rated insulation voltage (II/2) | 1000 V |
| Rated surge voltage (III/3) | 8 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (II/2) | 6 kV |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
