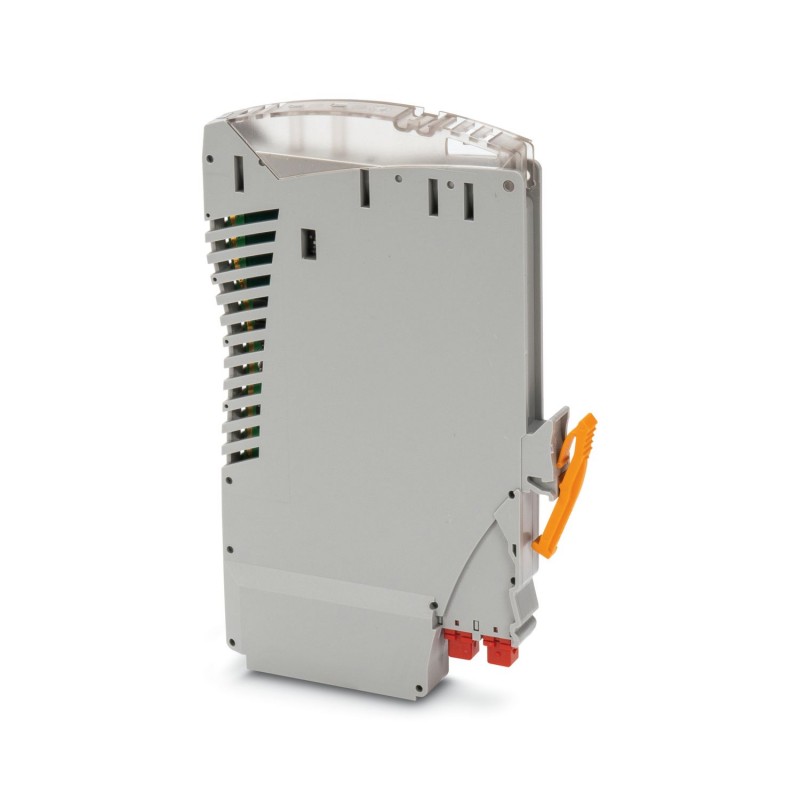

IOA RPSS-I-I/HART/EX 2908452 PHOENIX CONTACT Power/input isolating amplifier
IOA RPSS-I-I/HART/EX
2908452
PHOENIX_CONTACT
Power/input isolating amplifier
Ex-ic, HART input and power signal conditioner for Marshalling I/O VIP base elements: transmits 0/4...20mA signals from the Ex zone (Zone2, CID2) at a load (active or passive) to the safe zone. 3-way galvanic separation
Ex ic repeater power supply and input signal conditioner, HART for VIP I/O-Marshalling base elements: Transmits 0/4 ... 20 mA signals from the potentially explosive area (zone 2, CID2) to a load (active or passive) in the safe area. 3-way electrical isolation
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product type | Repeater power supply |
| Product family | VIP I/O-Marshalling |
| No. of channels | 1 |
| Data management status | |
| Article revision | 02 |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 2 |
| Electrical isolation | Reinforced insulation in accordance with IEC 61010-1 |
| Limit frequency (3 dB) | 1.75 kHz (typ.) |
| Step response (10-90%) | < 200 µs (typ.) |
| Maximum temperature coefficient | 0.01 %/K |
| Temperature coefficient, typical | 0.01 %/K |
| Maximum transmission error | < 0.1 % (of final value) |
| Electrical isolation Input/output/power supply | |
| Electrical isolation | 250 Vrms(Rated insulation voltage (overvoltage category II; degree of pollution 2, safe isolation as per EN 61010-1)) |
| 2.5 kV (50 Hz, 1 min., test voltage) | |
| 60 V (Peak value in accordance with IEC/EN/UL/CSA C22.2 60079-11) | |
| Supply | |
| Nominal supply voltage | 24 V DC |
| Supply voltage range | 18 V DC ... 30 V DC |
| Power consumption | ≤ 1600 mW (at IOUT= 20 mA, 24 V DC, 600 Ω load) |
| Signal | |
| Input signal | Current |
| Current input signal | 4 mA ... 20 mA (repeater power supply and isolator operation) |
| 0 mA ... 20 mA (isolator operation) | |
| Transmitter supply voltage | > 17 V (20 mA) |
| Step response (10-90%) | typ. 300 µs (4 mA ... 20 mA) |
| typ. 1000 µs (0 mA ... 20 mA) | |
| Signal | |
| Output description | Current output (active and passive) |
| Current output signal | 0 mA ... 20 mA (isolator amplifier) |
| 4 mA ... 20 mA (repeater power supply and isolator operation) | |
| Max. current output signal | 22.5 mA |
| Transmission Behavior | 1:1 to input signal |
| Load/output load current output | ≤ 600 Ω (20 mA) |
| 525 Ω (22.5 mA) | |
| Residual ripple | < 20 mVrms(600 Ω) |
| Output ripple | < 20 mVrms(at 600 Ω) |
| Output behavior in the event of an error | 0 mA (Cable break in the input) |
| ≥ 22.5 mA (Cable short-circuit in the input) | |
| Underload/overload signal range | 0 mA ... 22.5 mA (According to NE43) |
| Connection method | Screw connection |
| Stripping length | 10 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 1.5 mm² (with ferrule) |
| 0.2 mm² ... 2.5 mm² (without ferrule) | |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 12 (flexible) |
| Safety data | |
| Input voltage Ui | 0 V (nA, nB) |
| 30 V (nC, nD) | |
| 30 V (Controller interface) | |
| Input current Ii | 100 mA (Controller interface) |
| Inductance Li | 0 mH |
| Capacitance Ci | 0 nF |
| Max. output voltage Uo | 28 V (nA, nB) |
| 0 V (nC, nD) | |
| Max. output current Io | 104 mA |
| Max. output power Po | 726 mW |
| Safety-related maximum voltage Um | 60 V AC/DC (Peak) |
| IIC: Max. external inductivity Lo/ Max. external capacitance Co | / 0.27 µF |
| IIB/IIIC/IIIB/IIIA: Max. external inductivity Lo/ Max. external capacitance Co | / 1.65 µF |
| IIA: Max. external inductivity Lo/ Max. external capacitance Co | / 6.6 µF |
| IIC: Max. external inductivity Lo/ Max. external capacitance Co | 7.3 mH |
| IIB/IIIC/IIIB/IIIA: Max. external inductivity Lo/ Max. external capacitance Co | 14.7 mH |
| IIA: Max. external inductivity Lo/ Max. external capacitance Co | 29.5 mH |
| Data communication (bypass) | |
| HART function | Yes |
| Protocols supported | HART |
| Limit frequency (3 dB) | > 1.75 kHz (typical) |
| Status display | Green LED (supply voltage) |
| Width | 9.8 mm |
| Height | 75.2 mm |
| Depth | 113.2 mm |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | 2000 m (max. altitude above sea level) |
| Permissible humidity (operation) | 5 % ... 95 % |
| ATEX | |
| Identification | II 3G Ex ec IIC T4 Gc |
| II 3G Ex ec [ic] IIC T4 Gc | |
| II (3)D [Ex ic IIIC Dc] | |
| Certificate | Sira 17ATEX4208X |
| IECEx | |
| Identification | Ex ec IIC T4 Gc |
| Ex ec [ic] IIC T4 Gc | |
| [Ex ic IIIC Dc] | |
| Certificate | IECEx SIR 17.0047X |
| CSA, USA/Canada | |
| Identification | Class I, Div. 2 Groups A, B, C, D T4 |
| ANIFW apparatus for connection to: Class I, II, III, Div. 2 Groups A, B, C, D, F, G | |
| Class I, Zone 2 AEx ec IIC T4 Gc | |
| AEx ec [ic] IIC T4 Gc | |
| Connection to Zone 22, [Ex ic IIIC Dc] | |
| Connection to: Class I, II, III Div. 2 Groups A, B, C, D, F, G | |
| Ex ec IIC T4 Gc | |
| Ex ec [ic] IIC T4 Gc | |
| [Ex ic IIIC Dc] | |
| UKEX | |
| Identification | II 3G Ex ec IIC T4 Gc |
| II 3G Ex ec [ic] IIC T4 Gc | |
| II (3)D [Ex ic IIIC Dc] | |
| Certificate | PxCIF23UKEX2908452X |
| Corrosive gas test | |
| Identification | ISA S71.04.2013 G3 Harsh Group A |
| Electromagnetic compatibility | Conformance with EMC directive |
| Electromagnetic HF field | |
| Designation | Electromagnetic RF field |
| Standards/regulations | EN 61000-4-3 |
| Typical deviation from the measuring range final value | 1 % |
| Fast transients (burst) | |
| Designation | Fast transients (burst) |
| Standards/regulations | EN 61000-4-4 |
| Typical deviation from the measuring range final value | 1 % |
| Conducted interference | |
| Designation | Conducted interferences |
| Standards/regulations | EN 61000-4-6 |
| Typical deviation from the measuring range final value | 1 % |
| Electrical isolation | Reinforced insulation in accordance with IEC 61010-1 |
| Mounting position | any |
| Feature Name | Feature Value |
|---|---|
| Depth (EF000049) | 113.2 mm |
| Width (EF000008) | 9.8 mm |
| Height (EF000040) | 75.2 mm |
