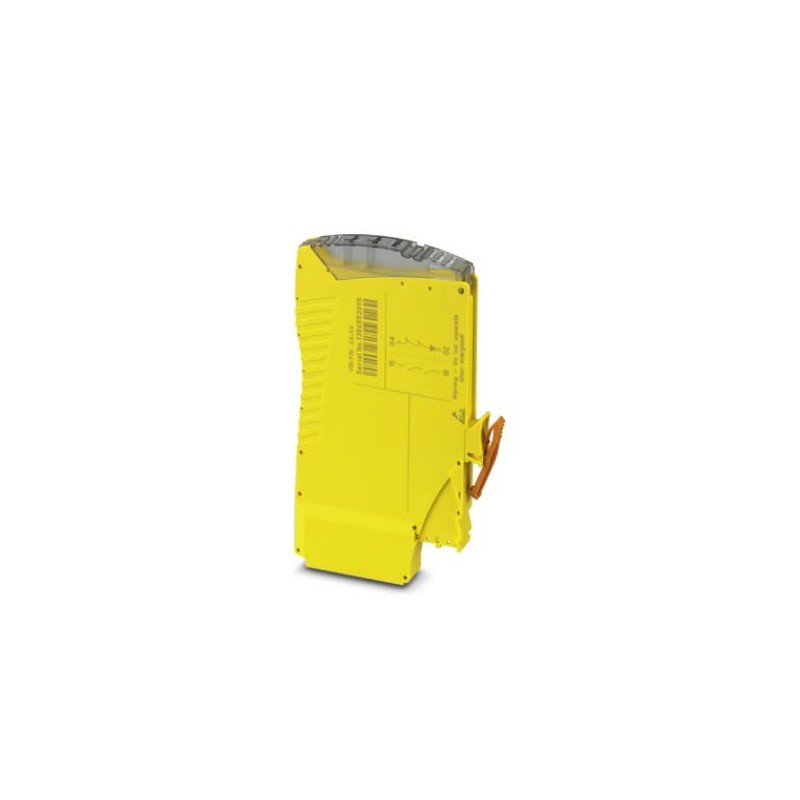

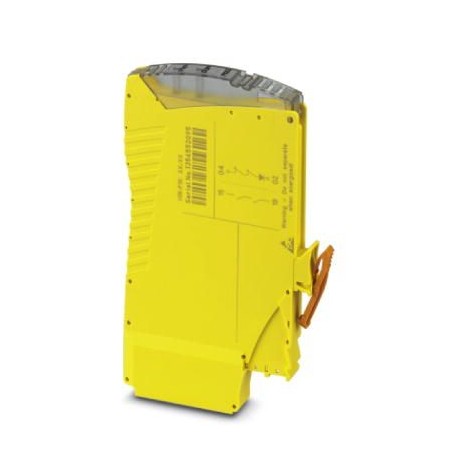

IOA-PSR-PS22-1NO-1NC-24DC 2702971 PHOENIX CONTACT Coupling relay
IOA-PSR-PS22-1NO-1NC-24DC
2702971
PHOENIX_CONTACT
Coupling relay
Pluggable SIL coupling relay as an input/output accessory for VIP socket module, high and low demand applications SIL 3, Safe-State-Off, couples digital output signals to the periphery, 1 trip circuit, 1 acknowledgment circuit, test pulse filter
Relays > Device for monitoring of safety-related circuits
Safety
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2702971 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626510941 |
| Weight per Piece (excluding packing) | 51.090 g |
| Custom tariff number | 85364900 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 70 °C (observe derating) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Max. permissible relative humidity (operation) | 75 % (on average, 85% infrequently, non-condensing) |
| Max. permissible humidity (storage/transport) | 75 % (on average, 85% infrequently, non-condensing) |
| Maximum altitude | ≤ 2000 m (Above sea level) |
Power supply
| Rated control circuit supply voltage US | 24 V DC -20 % / +25 % |
|---|---|
| Rated control supply current IS | typ. 25 mA |
| Power consumption at US | typ. 0.77 W |
| Inrush current | typ. 100 mA (Δt s) |
| Filter time | max. 3 ms (at pins 05/06 in the event of voltage dips at Us) |
| max. 3 ms (at pins 05/06; low test pulse width) | |
| ≥ 50 ms (at pins 05/06; low test pulse width) | |
| max. 17 ms (at pins 05/06; high test pulse width) | |
| ≥ 600 ms (at pins 05/06; high test pulse width) | |
| Diagnostic supply voltage UD | 24 V DC -20 % / +25 % (at pin 04) |
| Input current at UD | 7 mA (at pins 04/03 for UD; + 100 mA depending on load at pin 02) |
| Inrush current at UD | typ. 200 mA (Δt D) |
| Protective circuit | Surge protection 35 V suppressor diode (pins 05/06)33 V suppressor diode (pins 04/03)35 V suppressor diode (pins 02/03) |
| Polarity reversal protection for rated control circuit supply voltage and diagnostic supply voltage |
Relay outputs: enabling current path
| Output name | Enabling current path |
|---|---|
| Output description | safety-related N/O contacts |
| Number of outputs | 1 (undelayed) |
| Contact type | 1 enabling current path |
| Contact material | AgSnO2 |
| Switching voltage | min. 12 V AC/DC |
| max. 250 V AC/DC (Observe the load curve) | |
| Limiting continuous current | 3 A (observe derating) |
| Inrush current | min. 3 mA |
| max. 3 A | |
| Sq. Total current | 9 A2(observe derating) |
| Switching capacity | min. 60 mW |
| Mechanical service life | 10x 106cycles |
| Switching capacity according to IEC 60947-5-1 | 3 A (24 V (DC13)) |
| 3 A (230 V (AC15)) | |
| Output fuse | 3 A gL/gG |
Relay outputs: return current/signaling current path
| Output name | Confirmation current path |
|---|---|
| Output description | Safety-related N/C contacts |
| Number of outputs | 1 (undelayed) |
| Contact type | 1 confirmation current path |
| Contact material | AgCuNi, + Au |
| Switching voltage | min. 19.2 V DC |
| max. 30 V DC | |
| Limiting continuous current | 100 mA |
| Inrush current | min. 1 mA |
| max. 100 mA | |
| Switching capacity | min. 20 mW |
| Output fuse | 150 mA Fast-blow |
Times
| Typical pickup time at US | 150 ms (when controlled via pins 05/06) |
|---|---|
| Typical release time at US | 30 ms (when controlled via pins 05/06) |
| Recovery time | 500 ms |
General
| Relay type | Electromechanical relay with forcibly guided contacts in accordance with IEC/EN 61810-3 (EN 50205) |
|---|---|
| Nominal operating mode | 100% operating factor |
| Net weight | 51.09 g |
| Mounting position | vertical or horizontal |
| Mounting type | Plug-in mounting |
| Assembly instructions | See derating curve |
| Degree of protection | IP20 |
| Min. degree of protection of inst. location | IP54 |
| Housing material | PA 6.6 |
| Housing color | yellow |
| Status display | 2 x LED bi-color (green, red) |
Safety-related characteristic data
| Stop category | 0 |
|---|---|
| Designation | IEC 61508 - High demand |
| Safety Integrity Level (SIL) | 3 ( |
| Designation | IEC 61508 - Low demand |
| Safety Integrity Level (SIL) | 3 ( |
| Designation | EN ISO 13849 |
| Performance level (PL) | e |
| Category | 4 |
| Designation | EN 62061 |
| Safety Integrity Level Claim Limit (SIL CL) | 3 |
| Designation | EN 50156-2 |
| Safety Integrity Level (SIL) | 3 (Reference IEC 61508) |
Standards and Regulations
| Designation | Air clearances and creepage distances between the power circuits |
|---|---|
| Standards/regulations | DIN EN 50178, EN 60079-15 |
| Rated insulation voltage | 250 V AC |
| Rated surge voltage/insulation | Basic insulation 4 kV between all current paths and housing |
| Safe isolation, 6 kV reinforced insulation from the control circuit (05/06) and diagnostics circuit (03/04/02) to the enabling current path (15/19) | |
| Degree of pollution | 2 |
| Overvoltage category | III |
| Shock | 15 g (in the event of continuous stress caused by shock, contact reactions are possible.) |
| Vibration (operation) | 10 Hz ...150 Hz, 2g |
| Conformance | CE-compliant |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Basic device |
| Suitable for rail mounting (EF003972) | No |
| With detachable clamps (EF003340) | Yes |
| Suitable for monitoring of emergency-stop circuits (EF007268) | No |
| Suitable for monitoring of valves (EF007272) | No |
| Suitable for monitoring of optoelectronic protection equipment (EF007269) | No |
| Suitable for monitoring of tactile sensors (EF007271) | No |
| Suitable for monitoring of magnetic switches (EF007266) | No |
| Suitable for monitoring of proximity switches (EF007267) | No |
| Evaluation inputs (EF008245) | Other |
| With start input (EF003342) | No |
| With muting function (EF004057) | No |
| With feedback circuit (EF003343) | No |
| Release-delay (EF001129) | 0.15 s |
| Number of outputs, safety related, undelayed, with contact (EF003344) | 1 |
| Number of outputs, safety related, delayed, with contact (EF003345) | 0 |
| Number of outputs, safety related, undelayed, semiconductors (EF003346) | 0 |
| Number of outputs, safety related, delayed, semiconductors (EF003347) | 0 |
| Number of outputs, signalling function, undelayed, with contact (EF003348) | 1 |
| Number of outputs, signalling function, delayed, with contact (EF003349) | 0 |
| Number of outputs, signalling function, undelayed, semiconductors (EF003350) | 0 |
| Number of outputs, signalling function, delayed, semiconductors (EF003351) | 0 |
| Stop category according to IEC 60204 (EF007498) | Other |
| With approval for BG BIA (EF004145) | No |
| With approval according to UL (EF001783) | No |
| Width (EF000008) | 10 mm |
| Height (EF000040) | 75 mm |
| Depth (EF000049) | 112 mm |
