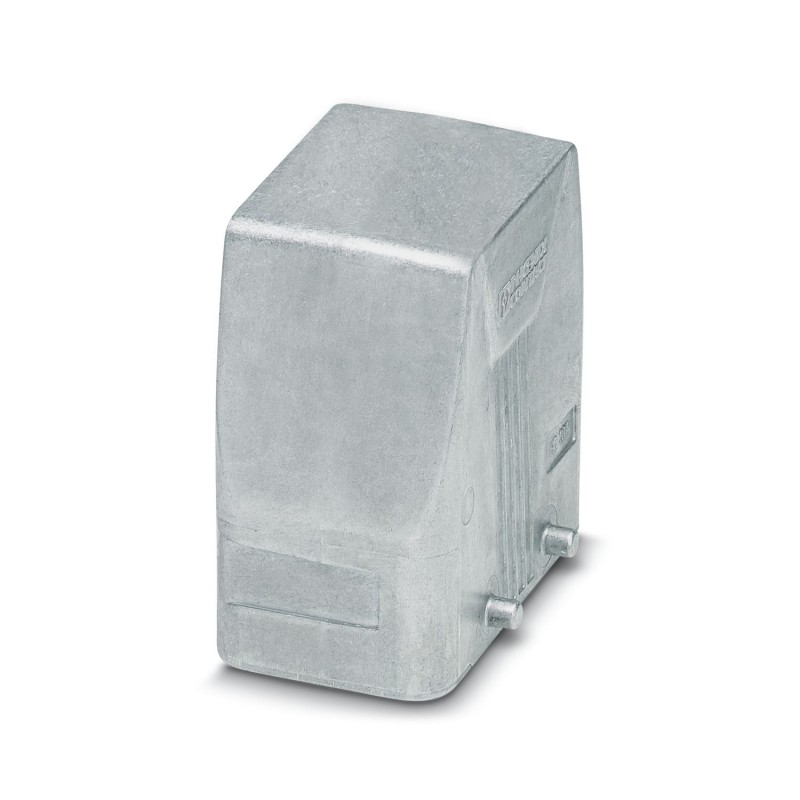

HC-STA-B10-HHFD-BLANK-EL-AL 1419979 PHOENIX CONTACT Housing
HC-STA-B10-HHFD-BLANK-EL-AL
1419979
PHOENIX_CONTACT
Housing
B10 overhead housing, for cross flange, material: Die-cast aluminum, seawater resistant, variable, height: 72 mm, cable gland: without, Standard, without threaded hole for a screwing
Sleeve housing B10, for double locking latch, material: Die-cast aluminum, salt water resistant, variable, height: 72 mm, cable gland: none, Standard, Without thread opening for screw connection
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | for contact inserts HC-B10, BB18, DD42, M, K8/24, HV03 |
| General | also available as a powder-coated or color version: 1372665 HC-STA-B10-HHFD-BLANK-EL/... |
| Product type | Housing with locking latch |
| Housing type | Sleeve housing |
| Application | Standard |
| Type | B10 |
| Type | Tall design |
| Cable outlet | variable |
| Pg screw connection | none |
| Data management status | |
| Article revision | 01 |
| Dimensional drawing |  |
| Width | 44 mm |
| Height | 72 mm |
| Length | 73 mm |
| Housing material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Mechanical data | |
| Locking type | Pin |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP67 | |
| Enclosure rating (NEMA) | 4 (UL 50e) |
| 4X (UL 50e) | |
| 12 (UL 50e) | |
| Impact strength | IK09 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 44 mm |
| Height (EF000040) | 72 mm |
| Depth (EF000049) | 73 mm |
| Type of housing (EF006980) | Plug case |
| Housing material (EF001596) | Aluminium |
| Coating housing (EF001601) | Uncoated |
| Housing colour (EF000136) | Other |
| Position cable feed (EF008218) | Other |
| Position of the shackle (EF008459) | Other |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | None |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | No |
| Number of conduit inlets (EF000437) | 0 |
| Type of locking (EF000208) | Double locking levers |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | Yes |
| Degree of protection (IP), mounted (EF007466) | IP66 |
| Impact strength (EF004293) | IK09 |
