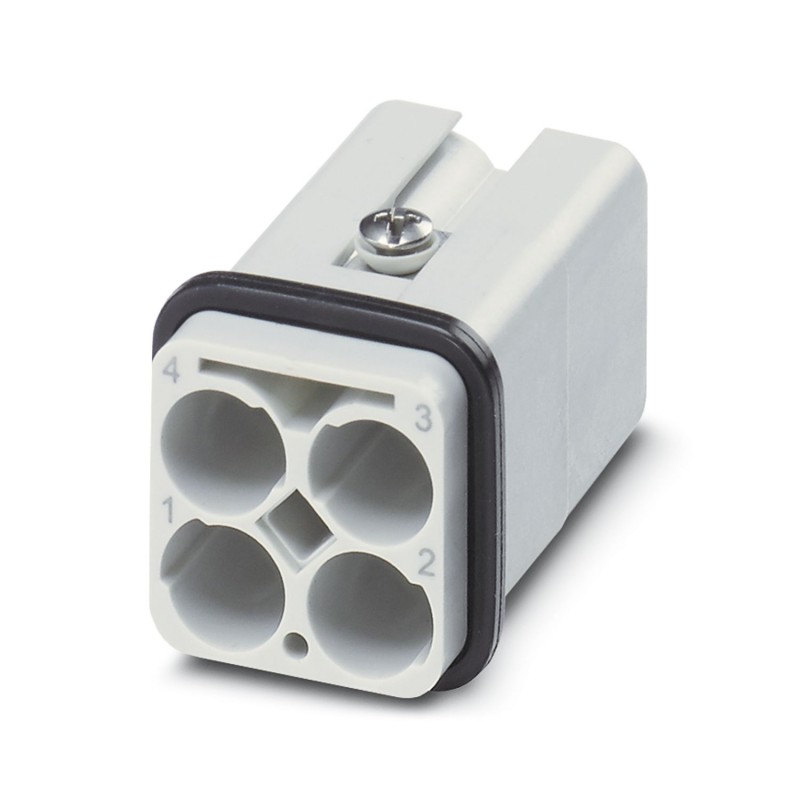

HC-Q04-I-CT-M 1419898 PHOENIX CONTACT Contact insert
HC-Q04-I-CT-M
1419898
PHOENIX_CONTACT
Contact insert
Contact insert, number of poles: 4, size: D7, number of connections per pole: 1, Male, Crimped connection, 830 V, 40 A, 1.5 mm² ... 6 mm², application: Power, only suitable for plastic housings
Contact insert, number of positions: 4, size: D7, number of connections per position: 1, Pin, Crimp connection, 830 V, 40 A, 1.5 mm2 ... 6 mm2, application: Power, Only suitable for plastic housings, four coding options
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General | for HC-STA-D07 housing, CK 4,0 crimp contacts |
| General | Connectors may be operated only when there is no load/voltage. |
| General | Order crimp contacts separately |
| Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
| Product type | Contact insert with a fixed no. of positions |
| Series | HC-HS |
| Application | Power |
| Type | D7 |
| Number of positions | 4 |
| Connection profile | 4 |
| Contact numbering | 1 - 4 |
| Number of connections per position | 1 |
| Contact material type | turned |
| Data management status | |
| Article revision | 04 |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Dimensional drawing |  |
| Width | 21 mm |
| Height | 40 mm |
| Length | 21 mm |
| Mechanical characteristics | |
| Contact diameter | 4 mm |
| Connection technology | |
| Connection technology | Crimp connection |
| Number of connections per position | 1 |
| Connection in acc. with standard | IEC / EN |
| Conductor connection | |
| Conductor cross section | 1.5 mm² ... 6 mm² |
| Connection cross section AWG | 16 ... 10 |
| Tightening torque | 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) |
| Stripping length of the individual wire | 9 mm (1.5 ... 6.0 mm²) |
| Rated voltage (III/3) | 830 V |
| Rated surge voltage | 8 kV |
| Rated current | 40 A |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR, conductive |
| Contact material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PC |
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
| Constructional and testing regulations | DIN VDE 0627/86 |
| DIN VDE 0110/02.79 | |
| DIN VDE 0110-1/04.97 | |
| IEC 60664-1, DIN IEC 60512 | |
| IEC 60352 | |
| Tests | DIN VDE 0627/86 |
| DIN VDE 0110/02.79 | |
| DIN VDE 0110-1/04.97 | |
| IEC 60664-1, DIN IEC 60512 | |
| IEC 60352 | |
| Testing | |
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
| Feature Name | Feature Value |
|---|---|
| Number of power contacts (EF012216) | 4 |
| Number of control contacts (EF012217) | 0 |
| Contact insert without contacts (EF007324) | Yes |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 4 |
| Diameter plug-in contact (EF007320) | 4 mm |
| Material connector insert (EF007545) | Thermoplastic |
| Rated current In (EF008250) | 40 A |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| Rated voltage (EF000228) | 830 V |
| Rated surge voltage (EF002993) | 8 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| Type of electric connection (EF003961) | Crimp connection |
| With wire protection (EF000550) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 1.5 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 1.5 mm² |
| Material of contact surface (EF004020) | Other |
| Material of contact insert (EF008521) | Thermoplastic |
| Material contact (EF007544) | Other copper alloys |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Min. number of insertion cycles (EF012212) | 500 |
| Width (EF000008) | 21 mm |
| Height (EF000040) | 40 mm |
| Depth (EF000049) | 21 mm |
