PHOENIX CONTACT  HC-Q02-I-CT-M 1419893 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

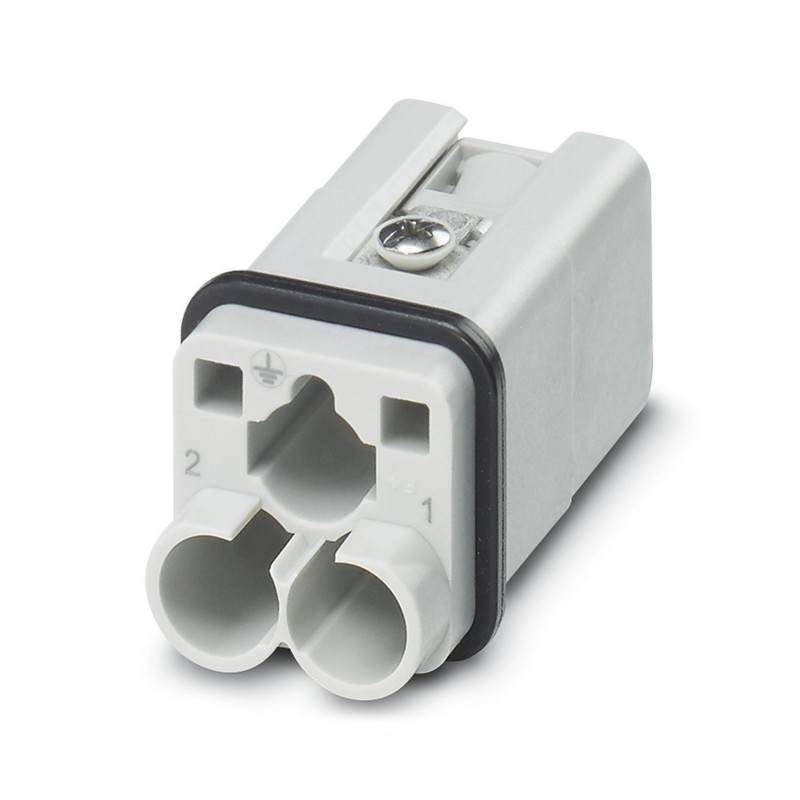

HC-Q02-I-CT-M 1419893 PHOENIX CONTACT Contact insert

Reference: HC-Q02-I-CT-M

Code: 1419893

Manufacturer: PHOENIX CONTACT

Description:

Contact insert
Contact insert, number of poles: 2+PE, size: D7, number of connections per pole: 1, Male, Crimped connection, 400 V, 40 A, 1.5 mm² ... 6 mm², Application: Power
Contact insert, number of poles: 2+PE, size: D7, number of connections per pole: 1, Male, Crimp connection, 400 V, 40 A, 1.5 mm2 ... 6 mm2, Application: Power

Categories:

  • Connectors > Contact insert for rectangular connectors
  • PHOENIX CONTACT > Industrial plug-in connectors/interfaces

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 8,01 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Key Commercial Data

Orderkey1419893
Packing unit1 pc
Catalog pagePage 507 (C-2-2017)
GTIN4055626256139
Weight per Piece (excluding packing)14.100 g
Custom tariff number85389099
Country of originCN (China)

General

NoteFor HC-D7 housing, crimp contacts CK 4,0. Crimp contacts not included in scope of supply.
Connection methodCrimp connection
Number of connections per position1
Degree of pollution3
Overvoltage categoryIII
Number of positions2+PE
Insertion/withdrawal cycles≥ 500
SizeD7
Contact numbering1 - 2
Conductor cross section1.5 mm² ... 6 mm²
Connection cross section AWG16 ... 10
Stripping length of the individual wire9 mm (1.5 ... 6.0 mm²)
11 mm (for 10 mm²)
Assembly instructionsTo ensure correct use, installation in housing with IP54 protection or better is required

Ambient conditions

Ambient temperature (operation)-40 °C ... 125 °C (including heating up of contacts)

Material data

Seal materialNBR
Contact materialCopper alloy
Contact surface materialAg
Contact carrier materialPC

Electrical characteristics

Rated voltage (III/3)400 V
Rated surge voltage6 kV
Rated current40 A

Standards and Regulations

Constructional and testing regulationsDIN VDE 0627/86
DIN VDE 0110/02.79
DIN VDE 0110-1/04.97
IEC 60664-1, DIN IEC 60512
IEC 60352
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

ETIM for 1419893 Connectors (EC000438)

Feature nameNumber of power contacts (EF012216)
Feature value2
Feature nameNumber of control contacts (EF012217)
Feature value0
Feature nameContact insert without contacts (EF007324)
Feature valueYes
Feature nameContact type (EF001587)
Feature valuePin
Feature nameNumber of poles (EF001391)
Feature value2
Feature nameDiameter plug-in contact (EF007320)
Feature value4 mm
Feature nameMaterial connector insert (EF007545)
Feature valueThermoplastic
Feature nameRated current In (EF008250)
Feature value40 A
Feature nameAmbient temperature (EF002386)
Feature value125 °C
Feature nameOperating temperature (EF002393)
Feature value-40 °C
Feature nameRated voltage (EF000228)
Feature value400 V
Feature nameRated surge voltage (EF002993)
Feature value6 kV
Feature nameOver voltage category (EF006785)
Feature valueIII
Feature namePollution degree (EF006786)
Feature value3
Feature nameType of electric connection (EF003961)
Feature valueCrimp connection
Feature nameWith wire protection (EF000550)
Feature valueNo
Feature nameConnectable conductor cross section fine-strand without cable end sleeve (EF007341)
Feature value1.5 mm²
Feature nameConnectable conductor cross section multi-wired (EF007343)
Feature value1.5 mm²
Feature nameMaterial of contact surface (EF004020)
Feature valueOther
Feature nameMaterial of contact insert (EF008521)
Feature valueThermoplastic
Feature nameMaterial contact (EF007544)
Feature valueOther copper alloys
Feature nameInflammability class of insulation material according to UL94 (EF002521)
Feature valueV0
Feature nameWith protective conductor (EF007468)
Feature valueYes
Feature nameMin. number of insertion cycles (EF012212)
Feature value500
Feature nameWidth (EF000008)
Feature value21 mm
Feature nameHeight (EF000040)
Feature value40 mm
Feature nameDepth (EF000049)
Feature value21 mm
