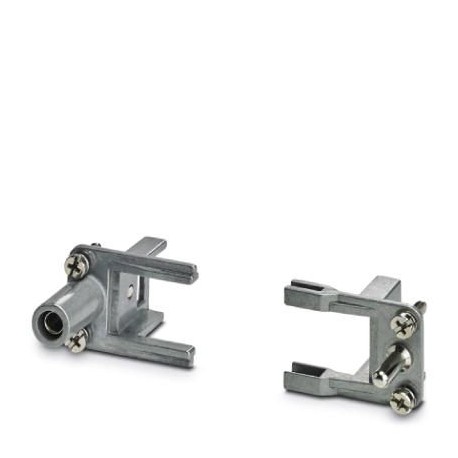

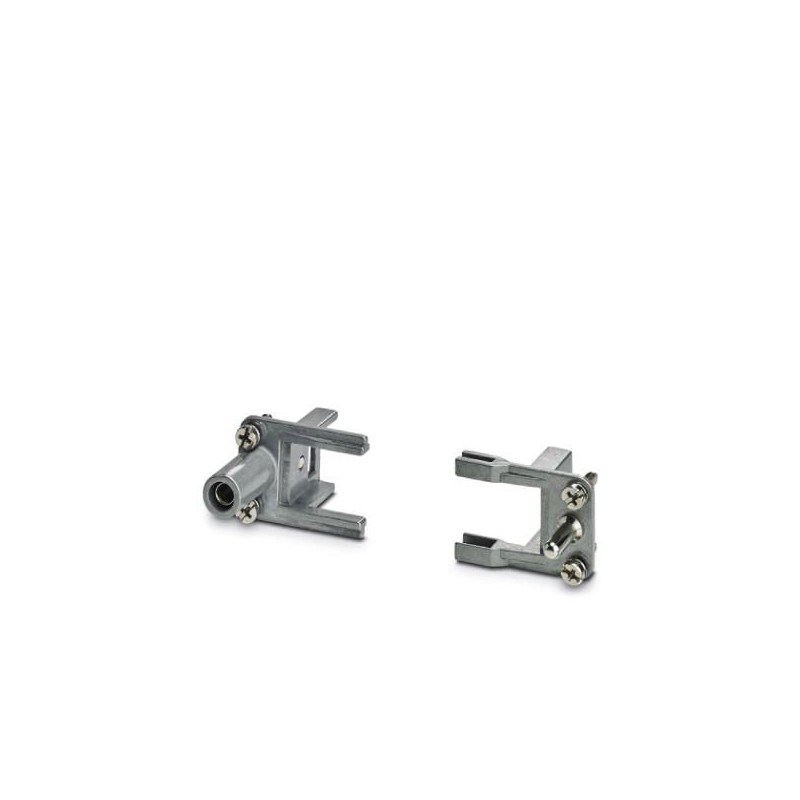

HC-M-D15-MF-HB 1062122 PHOENIX CONTACT Module carrier frame
HC-M-D15-MF-HB
1062122
PHOENIX_CONTACT
Module carrier frame
Frame for module support, size: D15, 0.14 mm² ... 2.5 mm², application: Frame for module support, for housings size D15
Connectors > Module carrier frame for industrial connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1062122 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626718040 |
| Weight per Piece (excluding packing) | 43.000 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Mechanical characteristics
| Conductor cross section | 0.14 mm² ... 2.5 mm² (applies to stranded conductors with ferrules) |
|---|---|
| Connection cross section AWG | 24 ... 14 |
General
| Note | for modular contact inserts with a width of 14.6 mm in conjunction with size D15 housings. |
|---|---|
| Size | D15 |
| Assembly instructions | Maximum allowable conductor cross section for the modules used: 2.5 mm² |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| With protective conductor (EF007468) | Yes |
| Min. number of insertion cycles (EF012212) | 500 |
| Inflammability class of insulation material according to UL94 (EF002521) | Other |
