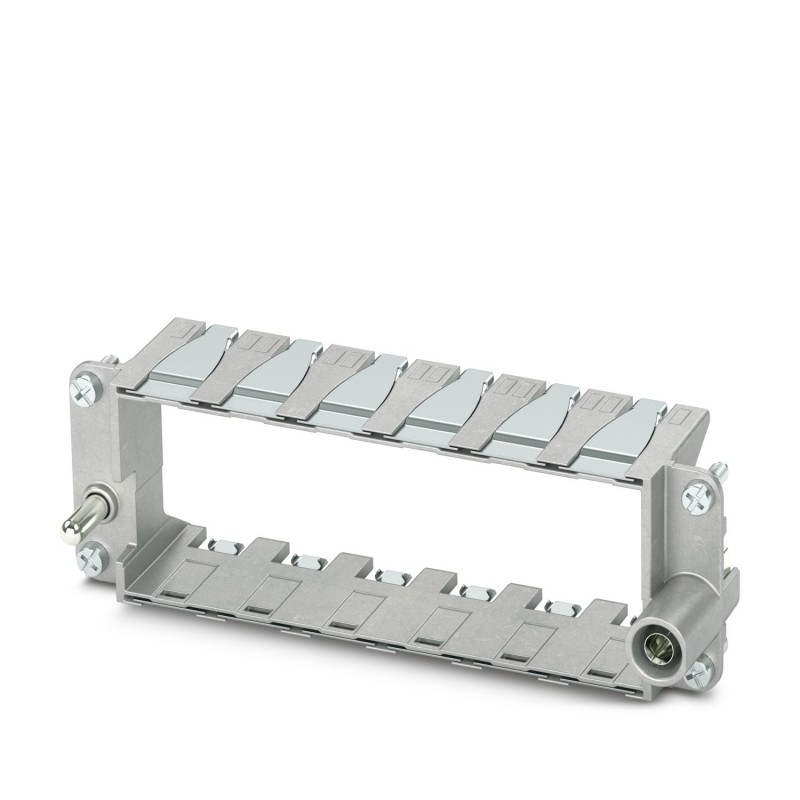

HC-M-B24-MFH-B 1182094 PHOENIX CONTACT Module Support Framework HC-M-B24-MFH-B
HC-M-B24-MFH-B
1182094
PHOENIX_CONTACT
Module Support Framework - HC-M-B24-MFH-B
Frame for module support, size: B24, type : for recessed side (a, b, c, ...), 4 mm² ... 6 mm², application: Module support frame
Module carrier frame, size: B24, type : for the panel mounting side (a, b, c, ...), 4 mm2 ... 6 mm2, application: Module carrier frame
Connectors > Module carrier frame for industrial connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General | This product replaces 1417402 HC-M-B24-MF-B |
| Product type | Module carrier frame |
| Series | HC-M-B |
| HC-M-02 | |
| HC-M-03 | |
| HC-M-03/04 | |
| HC-M-04 | |
| HC-M-05 | |
| HC-M-06 | |
| HC-M-08 | |
| HC-M-08-GBIT | |
| HC-M-12 | |
| HC-M-17 | |
| HC-M-20 | |
| HC-M-25 | |
| HC-M-DSUB | |
| HC-M-EMV | |
| HC-M-HV | |
| HC-M-HS | |
| HC-M-00 | |
| Application | Module carrier frame |
| Type | B24 |
| B48 | |
| Number of module slots | 6 |
| Type | for the panel mounting side (a, b, c, ...) |
| Frame type | Module carrier frame |
| Data management status | |
| Article revision | 03 |
| Conductor connection | |
| Conductor cross section | 4 mm² ... 6 mm² (for PE conductor - power side) |
| 1 mm² ... 2.5 mm² (for PE conductor – control side) | |
| Connection cross section AWG | 12 ... 10 (for PE conductor - power side) |
| 18 ... 14 (for PE conductor – control side) | |
| Tightening torque | 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) |
| Dimensional drawing |  |
| Width | 34.9 mm |
| Height | 36 mm |
| Length | 111 mm |
| Contact carrier material | Die-cast zinc alloy |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Assembly note | HC-MHR-PE16 ( 1636981) for PE connection extension to 16 mm². |
| Use wire end protection for PE wires (PE connection screws without wire protection) for housings without lateral connectors, max. thread length of the screw connection 12 mm | |
| When using the module carrier frame in metal housings, the connection of the PE conductor must be ensured via the PE connection provided on the module carrier frame or via a special metal PE module |
| Feature Name | Feature Value |
|---|---|
| With protective conductor (EF007468) | Yes |
| Min. number of insertion cycles (EF012212) | 500 |
| Inflammability class of insulation material according to UL94 (EF002521) | Other |
