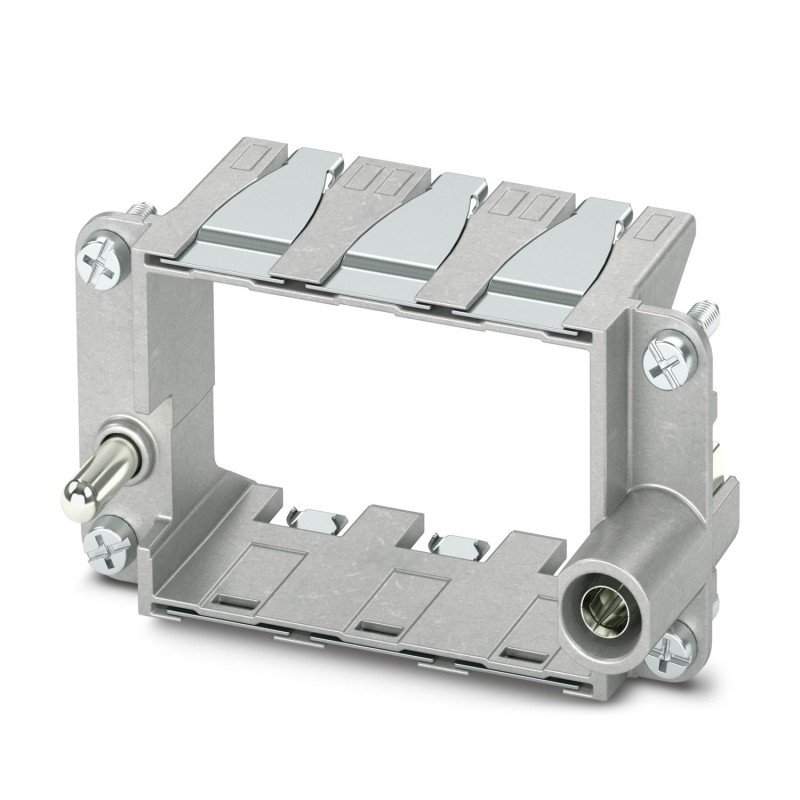

HC-M-B10-MFH-B 1182088 PHOENIX CONTACT Module Support Framework – HC-M-B10-MFH-B
HC-M-B10-MFH-B
1182088
PHOENIX_CONTACT
Module Support Framework – HC-M-B10-MFH-B
Frame for module support, size: B10, type : for recessed side (a, b, c, ...), 4 mm² ... 6 mm², application: Module support frame
Frame for module support, size: B10, type: for recessed side (a, b, c, ...), 4 mm2 ... 6 mm2, Application: Frame for Module Support
Connectors > Module carrier frame for industrial connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General | This product replaces 1417399 HC-M-B10-MF-B |
| Product Type | Frame for module support |
| Series | HC-M-B |
| HC-M-02 | |
| HC-M-03 | |
| HC-M-03/04 | |
| HC-M-04 | |
| HC-M-05 | |
| HC-M-06 | |
| HC-M-08 | |
| HC-M-08-GBIT | |
| HC-M-12 | |
| HC-M-17 | |
| HC-M-20 | |
| HC-M-25 | |
| HC-M-DSUB | |
| HC-M-EMV | |
| HC-M-HV | |
| HC-M-HS | |
| HC-M-00 | |
| application | Frame for module support |
| Construction | B10 |
| Number of module seats | 3 |
| Execution | for recessed side (a, b, c, ...) |
| Edge Type | Frame for module support |
| Data Maintenance Status | |
| Article Review | 03 |
| Connecting Conductors | |
| Connection Section | 4 mm² ... 6 mm² (for PE conductor - power side) |
| 1 mm² ... 2.5 mm² (for PE driver - control side) | |
| AWG Connection Section | 12 ... 10 (for PE driver-power side) |
| 18 ... 14 (for PE driver - control side) | |
| Tightening torque | 0.5 Nm ... 0.8 Nm (HEAVYCON housing-mounting fixing screws) |
| Dimension Scheme |  |
| Width | 34.9 mm |
| Height | 36 mm |
| Longitude | 64 mm |
| Contact Support Material | Zinc die-cast alloy |
| Mechanical data | |
| Plug Cycles | ≥ 500 |
| Environmental conditions | |
| Ambient Temperature (Service) | -40 °C ... 125 °C |
| Installation instructions | HC-MHR-PE16 (1636981) to extend the PE connection to 16 mm². |
| For PE conductors, a conductor guard (PE connection screws without wire protection) must be used, in tubeless housings with side outlet the max. thread length of the bolt is 12 mm | |
| When the module support frame is used in metal housings, the connection of the protective earth conductor must be ensured by the protective earth connection provided in the module support frame or by a special protective earth metal module. |
| Feature Name | Feature Value |
|---|---|
| With protective conductor (EF007468) | Yes |
| Min. number of insertion cycles (EF012212) | 500 |
| Inflammability class of insulation material according to UL94 (EF002521) | Other |
