HC-M-B10-MF-B
1417399
PHOENIX_CONTACT
1

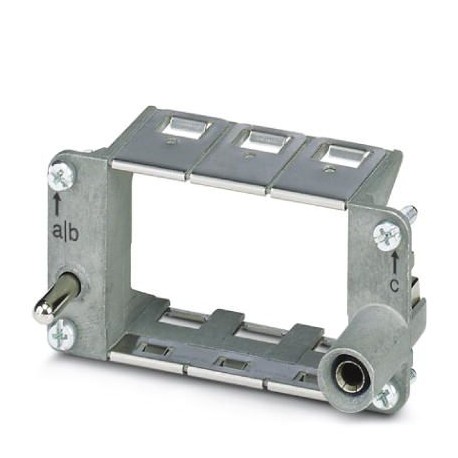

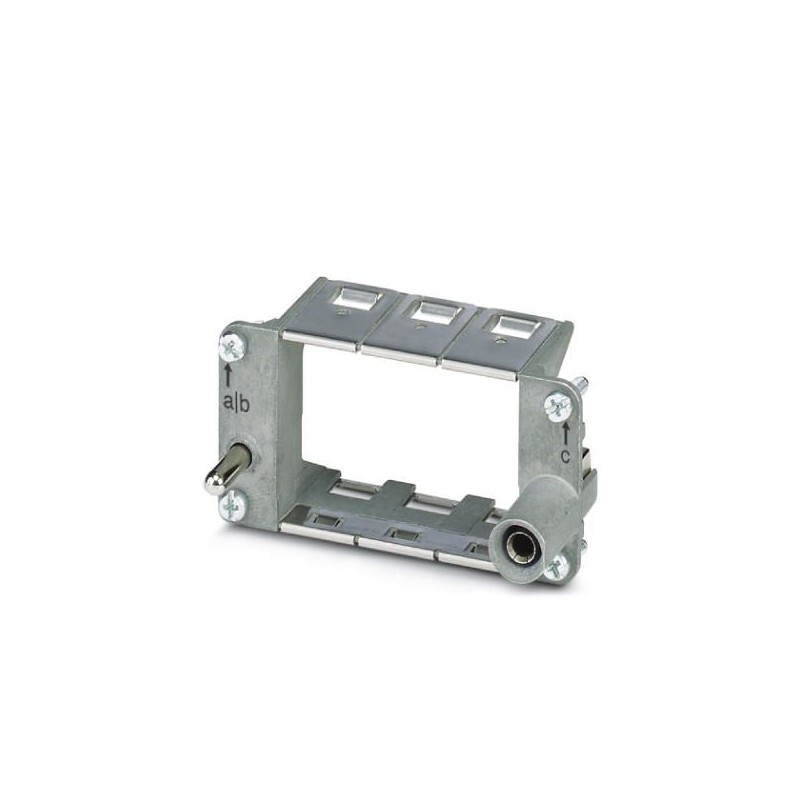

Module carrier frame
Connectors > Module carrier frame for industrial connectors
Industrial plug-in connectors/interfaces
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1417399 |
---|---|
Packing unit | 1 pc |
Catalog page | Page 584 (C-2-2017) |
GTIN | 4055626112756 |
Weight per Piece (excluding packing) | 56.660 g |
Custom tariff number | 85389099 |
Country of origin | CN (China) |
Conductor cross section | 4 mm² ... 6 mm² (for PE conductor - power side) |
---|---|
1 mm² ... 2.5 mm² (for PE conductor – control side) | |
Connection cross section AWG | 12 ... 10 (for PE conductor - power side) |
18 ... 14 (for PE conductor – control side) | |
Insertion/withdrawal cycles | ≥ 500 |
Type | for the panel mounting side (a, b, c, ...) |
---|---|
Size | B10 |
Series | HC-M-B |
Color | silver |
Number of module slots | 3 |
Assembly instructions | HC-MHR-PE16 ( 1636981) for PE connection extension to 16 mm². |
Connection | Use wire end protection for PE wires (PE connection screws without wire protection) for housings without lateral connectors, max. thread length of the screw connection 12 mm |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally Friendly Use Period = 50 |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
