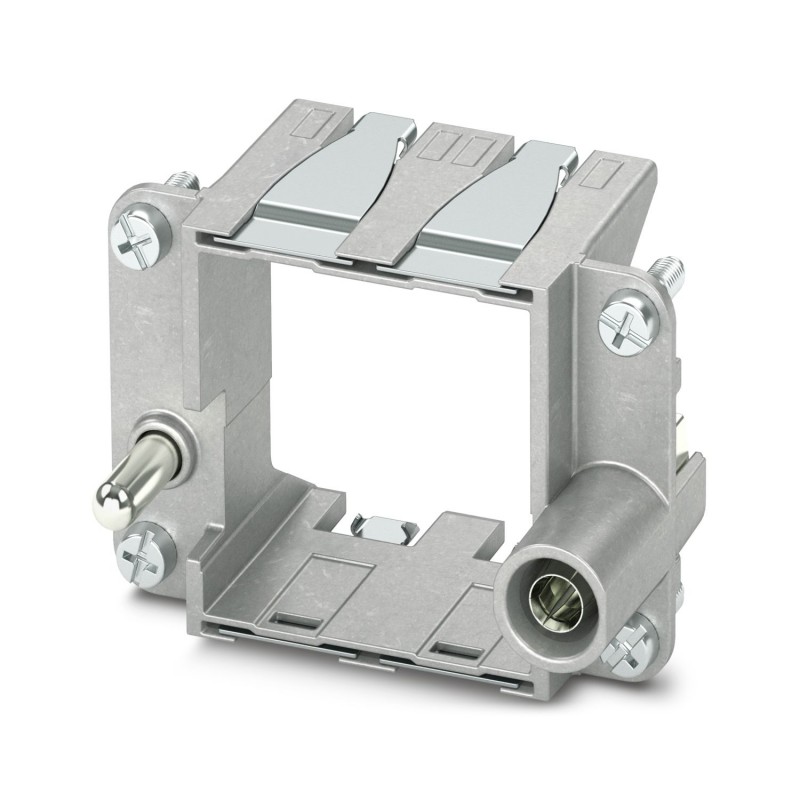

PHOENIX CONTACT HC-M-B06-MFH-B 1182085 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

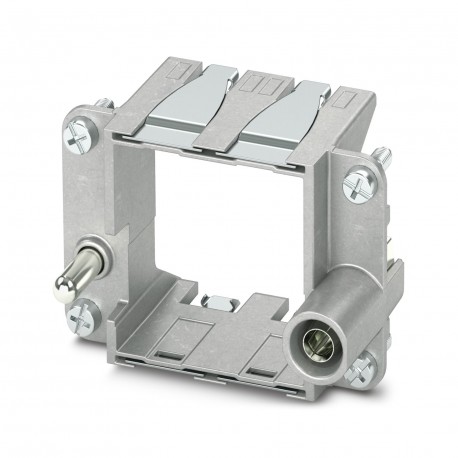

HC-M-B06-MFH-B 1182085 PHOENIX CONTACT Module Support Frame HC-M-B06-MFH-B

Reference: HC-M-B06-MFH-B

Code: 1182085

Manufacturer: PHOENIX CONTACT

Description:

Module Support Frame - HC-M-B06-MFH-B
Frame for module support, size: B6, type: for recessed side (a, b, c, ...), 4 mm² ... 6 mm², application: Frame for module support
Module frames, dimensions: B6, design: per flush-mounted side (a, b, c, ...), 4 mm2 ... 6 mm2, application: Module frames

Categories:

  • Connectors > Module carrier frame for industrial connectors
  • PHOENIX CONTACT > Industrial plug-in connectors/interfaces

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 11,89 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical data
Notes
General notesThis product replaces item 1417398 HC-M-B06-MF-B
Article features
Product TypeModule frames
SeriesHC-M-B
HC-M-02
HC-M-03
HC-M-03/04
HC-M-04
HC-M-05
HC-M-06
HC-M-08
HC-M-08-GBIT
HC-M-12
HC-M-17
HC-M-20
HC-M-25
HC-M-DSUB
HC-M-EMV
HC-M-HV
HC-M-HS
HC-M-00
ApplicationModule frames
typeB6
Number of module connection points2
Executionfor flush-mounted side (A, B, C, ...)
Frame typeModule frames
Data maintenance status
Article review03
Connection data
Conductor connection
Connection section4 mm² ... 6 mm² (for PE conductor - power side)
1 mm² ... 2.5 mm² (For PE conductor – controller side)
AWG Connection Section12 ... 10 (for PE conductor - power side)
18 ... 14 (For PE conductor – controller side)
Tightening torque0.5 Nm ... 0.8 Nm (Fixing screws for mounting in the HEAVYCON enclosure)
dimensions
Dimensioned Drawingshsqfuynbh.jpg
width34.9 mm
height36 mm
length51 mm
Material information
Contact Insert MaterialZinc Die Cast Alloy
Mechanical characteristics
Mechanical data
Manoeuvring cycles≥ 500
Environmental and electrical life conditions
Environmental conditions
Ambient temperature (operating)-40 °C ... 125 °C
Montage
Mounting NoteHC-MHR-PE16 ( 1636981) for PE connection extension to 16 mm².
Use suitable end protectors (PE connection screws without wire protection) with PE wires, max. thread length of the screw connection 12 mm in cases without pins with side exit
When inserting the module frame into metal enclosures, the connection of the PE protective conductor must be ensured via the PE connection provided on the module frame or a special metal PE module.

ETIM for 1182085 Connectors (EC002312)

Feature nameWith protective conductor (EF007468)
Feature valueYes
Feature nameMin. number of insertion cycles (EF012212)
Feature value500
Feature nameInflammability class of insulation material according to UL94 (EF002521)
Feature valueOther

DATASHEET - PDF

Title
Size
Type
PDF CATALOG PHOENIX CONNECTORS EN
58 Mbytes
