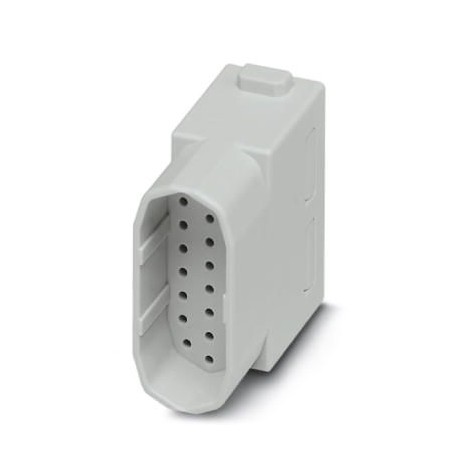

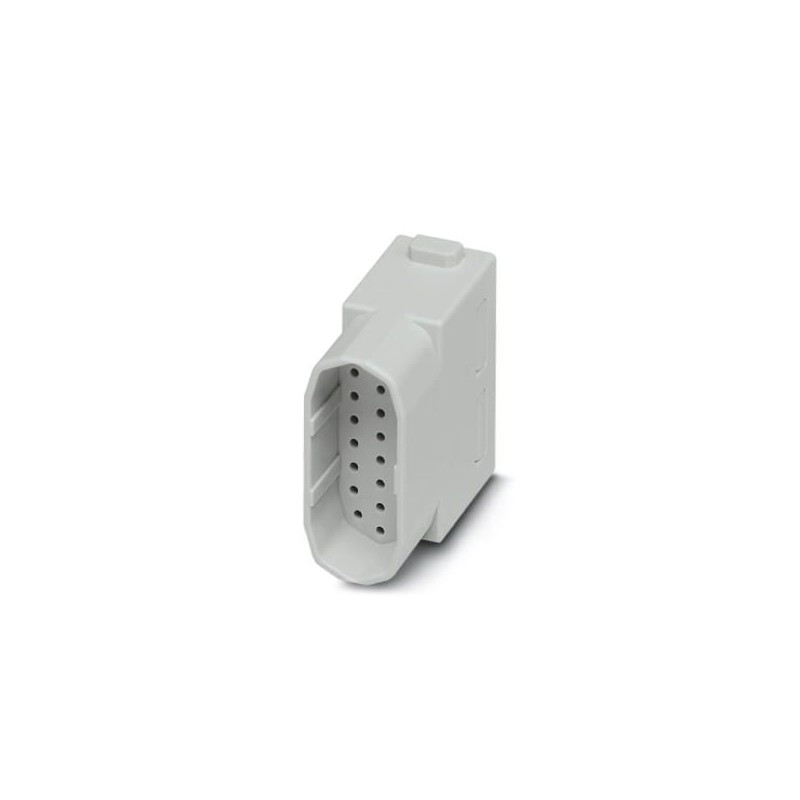

HC-M-25-CT-M 1414374 PHOENIX CONTACT Contact insert module
HC-M-25-CT-M
1414374
PHOENIX_CONTACT
5
Contact insert module
Contact insert module, number of poles: 25, power contacts: 0, control contacts: 25, Male, Crimped connection, 30 V, 4 A, 0.08 mm² ... 0.5 mm², application: Signal
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1414374 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 575 (C-2-2017) |
| GTIN | 4055626025278 |
| Weight per Piece (excluding packing) | 8.640 g |
| Custom tariff number | 85389099 |
| Country of origin | PL (Poland) |
Electrical characteristics
| Rated voltage (III/3) | 50 V |
|---|---|
| Rated current | 4 A |
| Rated surge voltage | 0.8 kV |
| Connection profile | 25 |
Mechanical characteristics
| Conductor cross section | 0.08 mm² ... 0.5 mm² |
|---|---|
| Connection cross section AWG | 28 ... 20 |
| Stripping length of the individual wire | 4.2 mm |
| External cable diameter | 2.2 mm |
| Contact diameter | 1 mm |
| Insertion/withdrawal cycles | ≥ 500 |
| Minimum housing height | 52 mm |
General
| Note | For HEAVYCON housing type B6 to B48, HC-M-B...MF-... module carrier frame required |
|---|---|
| Series | HC-M-25 |
| Color | light gray |
| Number of module slots | 1 |
| Connection method | Crimp connection |
| Contact type | turned |
| Flammability rating according to UL 94 | V0 |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 25 |
| Contact insert without contacts (EF007324) | Yes |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 25 |
| Diameter plug-in contact (EF007320) | 1 mm |
| Rated current In (EF008250) | 4 A |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| Rated voltage (EF000228) | 30 V |
| Rated surge voltage (EF002993) | 0.8 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| Type of electric connection (EF003961) | Crimp connection |
| With wire protection (EF000550) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.08 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.08 mm² |
| Material of contact surface (EF004020) | Other |
| Material of contact insert (EF008521) | Other |
| Material contact (EF007544) | Copper |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Min. number of insertion cycles (EF012212) | 500 |
| Width (EF000008) | 14.741519 mm |
| Height (EF000040) | 33.85 mm |
| Depth (EF000049) | 34.08261 mm |
