PHOENIX CONTACT Industrial plug-in connectors/interfacesHC-COM-BAWS-PL-BK 1012433 PHOENIX CONTACT Panel mounting base COM, with single locking latch, material: PA, ..

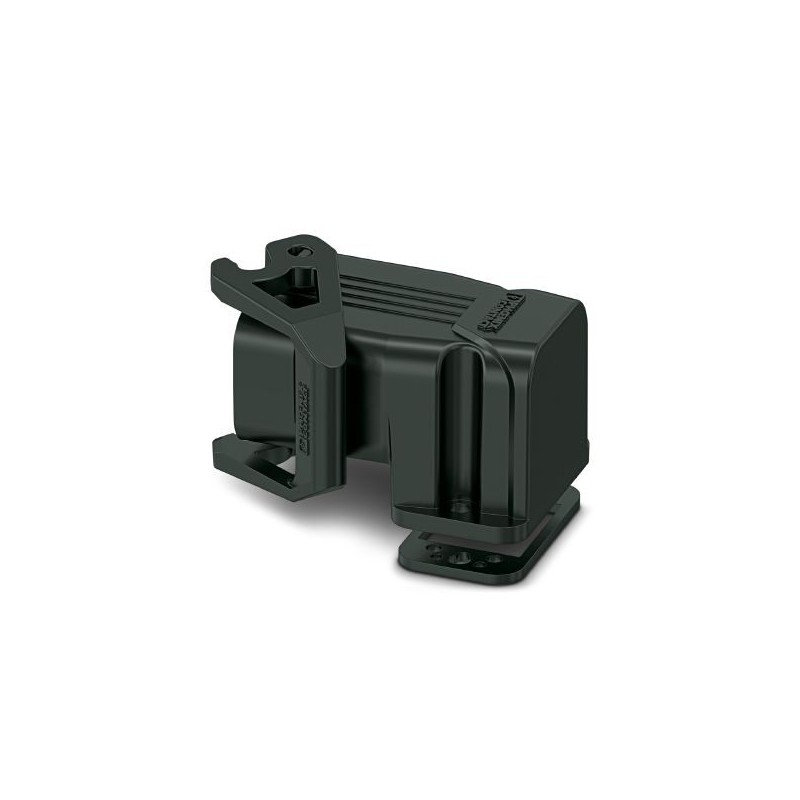

PHOENIX CONTACT HC-COM-BAWS-PL-BK 1012433 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

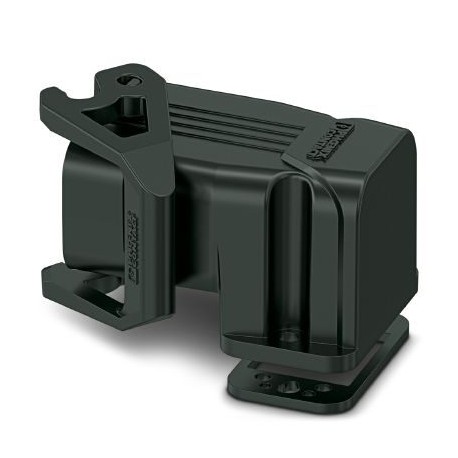

HC-COM-BAWS-PL-BK 1012433 PHOENIX CONTACT Panel mounting base COM, with single locking latch, material: PA, ..

Reference: HC-COM-BAWS-PL-BK

Code: 1012433

Manufacturer: PHOENIX CONTACT

Description:

Panel mounting base COM, with single locking latch, material: PA, height: 41.7 mm, cable gland: none, support sleeve: no, Standard
COM recessed housing, with longitudinal flange, material: PA, height: 36 mm, cable gland: without, Standard

Categories:

  • Connectors > Housing for rectangular connectors
  • PHOENIX CONTACT > Industrial plug-in connectors/interfaces

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 10,16 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Key Commercial Data

Orderkey1012433
Packing unit1 pc
Catalog pagePage 652 (C-2-2019)
GTIN4055626488592
Weight per Piece (excluding packing)0.000 g
Custom tariff number85389099
Country of originCN (China)

Drawings

Dimensional drawing

Dimensional drawing

Back to top

Dimensions

Height41.7 mm
Width64.5 mm
Length46.6 mm
Back to top

Ambient conditions

Degree of protection (IP)IP66
Ambient temperature (operation)-40 °C ... 125 °C
Back to top

General

SizeCOM
Housing typePanel mounting base
Colorblack
Locking typewith single locking latch
Screw connectionnone
Housing materialPA
Seal materialNBR
Material lockPA
Flammability rating according to UL 94V0
Back to top

Standards and Regulations

Flammability rating according to UL 94V0
Back to top

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 10.0.127440202
eCl@ss 4.027140816
eCl@ss 4.127140816
eCl@ss 5.027143424
eCl@ss 5.127261200
eCl@ss 6.027261200
eCl@ss 7.027440202
eCl@ss 8.027440202
eCl@ss 9.027440202
Back to top

ETIM

ETIM 4.0EC000437
ETIM 5.0EC000437
ETIM 6.0EC000437
ETIM 7.0EC000437
Back to top

UNSPSC

UNSPSC 6.0131261502
UNSPSC 7.090131261502
UNSPSC 1131261502
UNSPSC 12.0131261502
UNSPSC 13.231261501
UNSPSC 18.031261501
UNSPSC 19.031261501
UNSPSC 20.031261501
UNSPSC 21.031261501
Back to top

ETIM for 1012433 Connectors (EC000437)

Feature nameWidth (EF000008)
Feature value49.5 mm
Feature nameHeight (EF000040)
Feature value36 mm
Feature nameDepth (EF000049)
Feature value64 mm
Feature nameType of housing (EF006980)
Feature valueHousing extension
Feature nameHousing material (EF001596)
Feature valueOther
Feature nameCoating housing (EF001601)
Feature valueOther
Feature nameHousing colour (EF000136)
Feature valueBlack
Feature namePosition cable feed (EF008218)
Feature valueOther
Feature namePosition of the shackle (EF008459)
Feature valueCover
Feature nameWith cable screw gland (EF000735)
Feature valueNo
Feature nameMounting method of the cable gland (EF012210)
Feature valueNone
Feature nameWith hinged lid (EF000117)
Feature valueNo
Feature nameWith distance piece (EF005072)
Feature valueNo
Feature nameWith sealing (EF005610)
Feature valueYes
Feature nameType of locking (EF000208)
Feature valueSingle locking lever
Feature nameOperating temperature (EF002393)
Feature value-40 °C
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameDegree of protection (IP), mounted (EF007466)
Feature valueIP66
Feature nameImpact strength (EF004293)
Feature valueIK06
