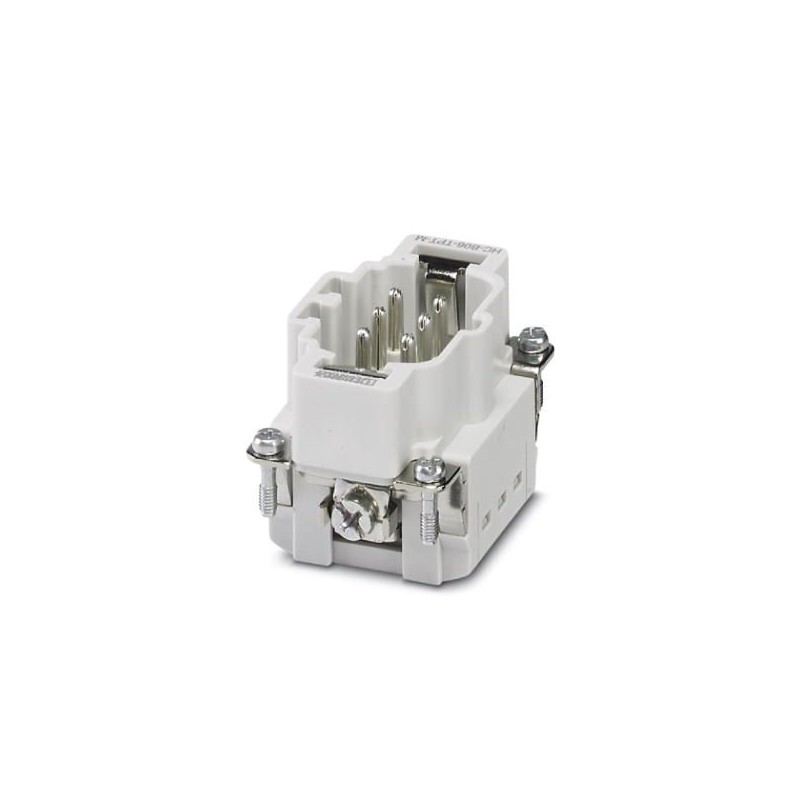

PHOENIX CONTACT  HC-B06-I-TPT-M 1423015 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

HC-B06-I-TPT-M 1423015 PHOENIX CONTACT Contact insert

Reference: HC-B06-I-TPT-M

Code: 1423015

Manufacturer: PHOENIX CONTACT

Description:

Contact insert
Contact insert, number of poles: 6+PE, size: B6, number of connections per pole: 2, Male, Push-in connection, 500 V, 16 A, 0.25 mm² ... 1.5 mm², Application: Power

Categories:

  • Connectors > Contact insert for rectangular connectors
  • PHOENIX CONTACT > Industrial plug-in connectors/interfaces

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 14,83 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Key Commercial Data

Orderkey1423015
Packing unit1 pc
Catalog pagePage 535 (C-2-2017)
GTIN4055626322582
Weight per Piece (excluding packing)46.500 g
Custom tariff number85366990
Country of originCN (China)

General

Notefor housing HC-B 6
Connectors may be operated only when there is no load/voltage.
For solid conductors or stranded conductors with ferrules
Connection methodPush-in connection
Number of connections per position2
Degree of pollution3
Overvoltage categoryIII
Number of positions6+PE
Insertion/withdrawal cycles≥ 500
SizeB6
Contact numbering1 - 6
Conductor cross section0.25 mm² ... 1.5 mm² (with ferrule)
Connection cross section AWG24 ... 16 (with ferrule)
Stripping length of the individual wire8 mm ±1 mm
Assembly instructionsTo ensure correct use, installation in housing with IP54 protection or better is required
ConnectionConnectors may only be actuated when there is no load/voltage.

Ambient conditions

Ambient temperature (operation)-40 °C ... 125 °C

Material data

Contact materialCopper alloy
Contact surface materialAg
Contact carrier materialPC
Standards/regulationsPC: Fire protection in rail vehicles - requirement sets R22 and R23 acc. to DIN EN 45545-2 (Risk level HL1 - HL2)
PC: Fire protection in rail vehicles - requirement set R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

Electrical characteristics

Rated voltage (III/3)500 V
Rated surge voltage6 kV
Rated current10 A

Standards and Regulations

Constructional and testing regulationsDIN EN 61984
DIN EN 60664
IEC 60352
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

ETIM for 1423015 Connectors (EC000438)

Feature nameNumber of power contacts (EF012216)
Feature value6
Feature nameNumber of control contacts (EF012217)
Feature value0
Feature nameContact insert without contacts (EF007324)
Feature valueNo
Feature nameContact type (EF001587)
Feature valuePin
Feature nameNumber of poles (EF001391)
Feature value6
Feature nameDiameter plug-in contact (EF007320)
Feature value2.5 mm
Feature nameMaterial connector insert (EF007545)
Feature valueThermoplastic
Feature nameRated current In (EF008250)
Feature value16 A
Feature nameAmbient temperature (EF002386)
Feature value125 °C
Feature nameOperating temperature (EF002393)
Feature value-40 °C
Feature nameRated voltage (EF000228)
Feature value500 V
Feature nameRated surge voltage (EF002993)
Feature value6 kV
Feature nameOver voltage category (EF006785)
Feature valueIII
Feature namePollution degree (EF006786)
Feature value3
Feature nameType of electric connection (EF003961)
Feature valueSpring clamp connection
Feature nameWith wire protection (EF000550)
Feature valueNo
Feature nameConnectable conductor cross section fine-strand without cable end sleeve (EF007341)
Feature value0.25 mm²
Feature nameConnectable conductor cross section multi-wired (EF007343)
Feature value0.25 mm²
Feature nameMaterial of contact surface (EF004020)
Feature valueOther
Feature nameMaterial of contact insert (EF008521)
Feature valueThermoplastic
Feature nameMaterial contact (EF007544)
Feature valueOther copper alloys
Feature nameInflammability class of insulation material according to UL94 (EF002521)
Feature valueV0
Feature nameWith protective conductor (EF007468)
Feature valueYes
Feature nameMin. number of insertion cycles (EF012212)
Feature value500
Feature nameWidth (EF000008)
Feature value34 mm
Feature nameHeight (EF000040)
Feature value32 mm
Feature nameDepth (EF000049)
Feature value50.5 mm
