PHOENIX CONTACT SafetyGW PN/ASCII 2E/2DB9 1021056 PHOENIX CONTACT Interface converters

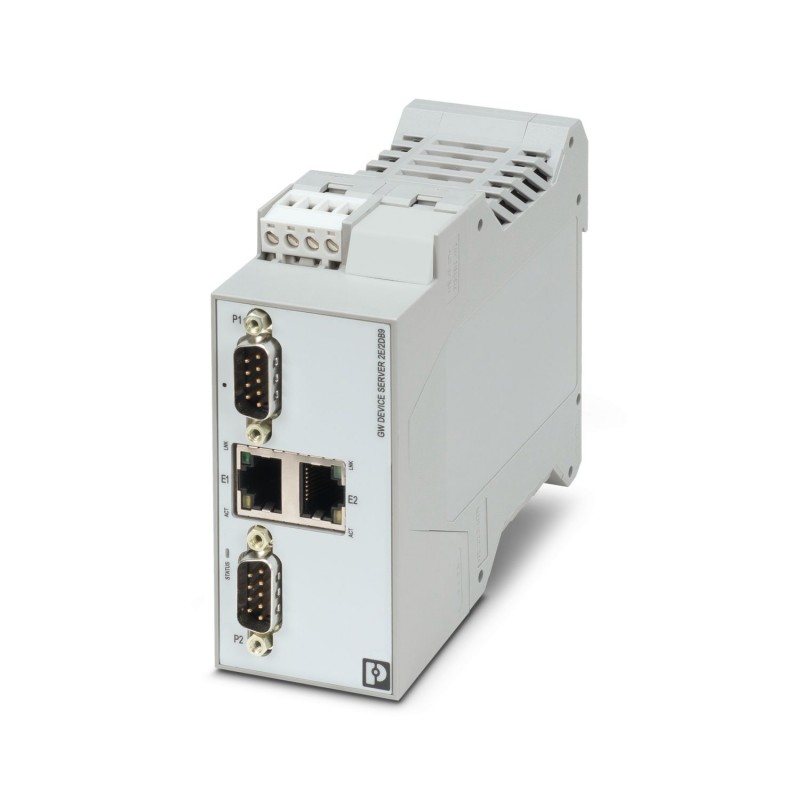

PHOENIX CONTACT GW PN/ASCII 2E/2DB9 1021056 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

GW PN/ASCII 2E/2DB9 1021056 PHOENIX CONTACT Interface converters

Reference: GW PN/ASCII 2E/2DB9

Code: 1021056

Manufacturer: PHOENIX CONTACT

Description:

Interface converters
The GW PN/ASCII... converts serial strings of RAW or ASCII characters to PROFINET. It comprises two RJ45 connections and two D-SUB-9 connections.
The GW PN/ASCII... converts RAW or ASCII serial strings to PROFINET. It includes two RJ45 connections and two D-SUB 9 connections.

Categories:

  • PLC's > PLC communication module
  • PHOENIX CONTACT > Safety

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 1.403,49 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Key Commercial Data

Orderkey1021056
Packing unit1 pc
GTIN4055626513300
Weight per Piece (excluding packing)210.900 g
Custom tariff number85176200
Country of originUS (United States)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width45 mm
Height99 mm
Depth115 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 80 °C
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)5 % ... 95 % (non-condensing)
Altitude< 2000 m
Degree of protectionIP20
Noise immunityEN 61000-6-2:2005

General

Electrical isolationIEC UL 61010-1 (VCC // Ethernet)
Test voltage data interface/data interface1.5 kVrms(50 Hz, 1 min.)
Test voltage data interface/power supply1.5 kVrms
1.5 kVrms(50 Hz, 1 min.)
Standards/regulationsEN 55022, EN 55024
Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise emissionEN 61000-6-4
Net weight210.9 g
Housing materialPA 6.6
Colorgray
MTBF68.1 Years (Telcordia standard, 25°C temperature, 50% stress, Environmental Factor = 1.0)
45.4 Years (Telcordia standard, 40°C temperature, 50% stress, Environmental Factor = 1.5)
ConformanceCE-compliant
UL, USAUL 61010-1
UL, USA/CanadaClass I, Div. 2, Groups A, B, C, D T4A

Power supply

Supply voltage range10.8 V DC ... 30 V DC (via pluggable COMBICON screw terminal block)
Max. current consumption100 mA (24 V DC)
Typical current consumption88 mA (24 V DC)
Conductor cross section flexible max.2.50 mm²
Conductor cross section flexible min.0.20 mm²
Conductor cross section AWG max.12
Conductor cross section AWG min.24

Serial interface

Interface 1PROFINET
InterfaceEthernet
No. of ports2
Connection methodRJ45 socket, shielded
Transmission length≤ 100 m (shielded twisted pair)
Protocols supportedPROFINET, ASCII
Auxiliary protocolsARP, DHCP (Client), PING
Serial transmission speed10/100 Mbps, auto negotiation
InterfaceRS-232
Number of connections2
Connection methodD-SUB 9 plug
File format/coding5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity
Transmission length15 m
Pin assignment
Data flow control/protocolsSoftware handshake, Xon/Xoff or hardware handshake RTS/CTS
Serial transmission speed0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps
InterfaceRS-422
Number of connections2
Connection methodD-SUB 9 plug
File format/coding5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity
Transmission length≤ 1200 m
Termination resistor120 Ω (configurable)
Pin assignment
Serial transmission speed0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps
InterfaceRS-485
Number of connections2
Connection methodD-SUB 9 plug
File format/coding5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity
Termination resistor120 Ω (configurable)
Pin assignment
Serial transmission speed0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps

Function

Web-based managementyes
ManagementWeb-based management
Status and diagnostic indicators

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Type of testVibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
Shock in acc. with EN 60068-2-27/IEC 60068-2-27
Noise emissionEN 61000-6-4
Noise immunityEN 61000-6-2:2005
Standards/regulationsEN 55022, EN 55024
ConformanceCE-compliant
UL, USAUL 61010-1
UL, USA/CanadaClass I, Div. 2, Groups A, B, C, D T4A

Classifications

ETIM for 1021056 PLC's (EC001423)

Feature nameNumber of HW-interfaces industrial Ethernet (EF003020)
Feature value0
Feature nameNumber of interfaces PROFINET (EF006932)
Feature value0
Feature nameNumber of HW-interfaces RS-232 (EF003021)
Feature value2
Feature nameNumber of HW-interfaces RS-422 (EF003022)
Feature value2
Feature nameNumber of HW-interfaces RS-485 (EF003023)
Feature value2
Feature nameNumber of HW-interfaces serial TTY (EF003024)
Feature value0
Feature nameNumber of HW-interfaces USB (EF003025)
Feature value0
Feature nameNumber of HW-interfaces parallel (EF003026)
Feature value0
Feature nameNumber of HW-interfaces wireless (EF006933)
Feature value0
Feature nameNumber of HW-interfaces other (EF003027)
Feature value0
Feature nameWith optical interface (EF003028)
Feature valueNo
Feature nameRadio standard Bluetooth (EF007178)
Feature valueNo
Feature nameRadio standard WLAN 802.11 (EF007179)
Feature valueNo
Feature nameRadio standard GPRS (EF008523)
Feature valueNo
Feature nameRadio standard GSM (EF008524)
Feature valueNo
Feature nameRadio standard UMTS (EF008525)
Feature valueNo
Feature nameIO link master (EF007298)
Feature valueNo
Feature nameRedundancy (EF003156)
Feature valueNo
Feature nameWith potential separation (EF003272)
Feature valueNo
Feature nameSIL according to IEC 61508 (EF009889)
Feature valueNone
Feature nameSuitable for safety functions (EF001597)
Feature valueNo
Feature namePerformance level according to EN ISO 13849-1 (EF007399)
Feature valueNone
Feature nameAppendant operation agent (Ex ia) (EF004141)
Feature valueNo
Feature nameAppendant operation agent (Ex ib) (EF004142)
Feature valueNo
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameExplosion safety category for dust (EF003998)
Feature valueNone
Feature nameWidth (EF000008)
Feature value45 mm
Feature nameHeight (EF000040)
Feature value99 mm
Feature nameDepth (EF000049)
Feature value115 mm
