PHOENIX CONTACT SafetyGW PL FF/HART 2316360 PHOENIX CONTACT Protocol converter

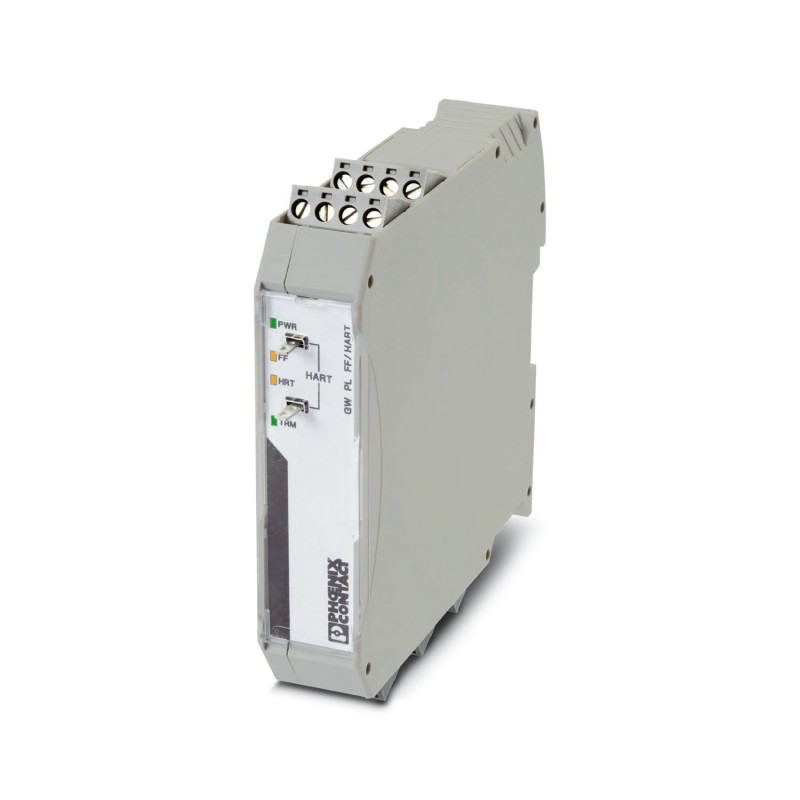

PHOENIX CONTACT GW PL FF/HART 2316360 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

GW PL FF/HART 2316360 PHOENIX CONTACT Protocol converter

Reference: GW PL FF/HART

Code: 2316360

Manufacturer: PHOENIX CONTACT

Description:

Protocol converter
HART Protocol to FOUNDATION Fieldbus Converter
HART to Foundation Fieldbus protocol converter

Categories:

  • PLC's > PLC communication module
  • PHOENIX CONTACT > Safety

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 1.143,75 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical data
Notes
Note on application
Note on applicationOnly for industrial use
Utilization restriction
EMC noteEMC: class A product, see manufacturer's declaration in the download area
Product properties
Product typeInterface converter
Data management status
Article revision05
Insulation characteristics
Overvoltage categoryII
Degree of pollution2
Electrical properties
Supply
Supply voltage range18.5 V DC ... 30 V DC
Nominal supply voltage24 V DC
Max. current consumption70 mA
Connection data
Supply
Connection methodCOMBICON plug-in screw terminal block
Conductor cross section, flexible0.20 mm² ... 2.50 mm²
Conductor cross section, rigid0.20 mm² ... 2.50 mm²
Conductor cross section AWG24 ... 12
Tightening torque0.5 Nm ... 0.6 Nm
Interfaces
Data: FOUNDATION Fieldbus
Data rate31.25 kbps
Number of connections1
Connection methodCOMBICON
No. of channels1
Tightening torque0.5 Nm ... 0.6 Nm
Connection technologyScrew connection
Termination resistorSwitchable
Conductor cross section flexible max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section, rigid max.2.5 mm²
Conductor cross section, rigid min.0.2 mm²
Conductor cross section AWG max.12
Conductor cross section AWG min.24
Protocols supportedHART, FOUNDATION Fieldbus
Data: HART FSK
Number of connections3
Connection methodCOMBICON
No. of channels4 (Active/Passive HART devices)
Tightening torque0.5 Nm ... 0.6 Nm
Connection technologyScrew connection
Conductor cross section flexible max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section, rigid max.2.5 mm²
Conductor cross section, rigid min.0.02 mm²
Conductor cross section AWG max.12
Conductor cross section AWG min.24
Dimensions
Dimensional drawingkxmlwbxqak.jpg
Width22.5 mm
Height99 mm
Depth114.5 mm
Material specifications
Colorgray
Housing materialPA V0
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-40 °C ... 85 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Altitude2000 m
Permissible humidity (operation)95 % (non-condensing)
Shock30g, 18 ms
Vibration (operation)5g, 10 Hz ... 150 Hz
Approvals
Ex data
ATEXPRESAFE 16ATEX7686X, II 3G, Ex nA IIC T4 Gc
IECExIECEx PRE 16.0001X, Ex nA IIC T4 Gc
UL, USA / CanadaClass I, Div. 2, Groups A, B, C, D
Class I, Zone 2, AEx nA IIC T4, Ex nA IIC T4 GcX
Standards and regulations
Standards/regulationsIEC 60079-15
IEC 60079-0
Mounting
Mounting typeDIN rail: 35 mm
Assembly noteon standard DIN rail NS 35 in accordance with EN 60715
Mounting positionOn horizontal DIN rail NS 35 in acc. with EN 60715

ETIM for 2316360 PLC's (EC001423)

Feature nameNumber of HW-interfaces industrial Ethernet (EF003020)
Feature value0
Feature nameNumber of interfaces PROFINET (EF006932)
Feature value0
Feature nameNumber of HW-interfaces RS-232 (EF003021)
Feature value0
Feature nameNumber of HW-interfaces RS-422 (EF003022)
Feature value0
Feature nameNumber of HW-interfaces RS-485 (EF003023)
Feature value0
Feature nameNumber of HW-interfaces serial TTY (EF003024)
Feature value0
Feature nameNumber of HW-interfaces USB (EF003025)
Feature value0
Feature nameNumber of HW-interfaces parallel (EF003026)
Feature value0
Feature nameNumber of HW-interfaces wireless (EF006933)
Feature value0
Feature nameNumber of HW-interfaces other (EF003027)
Feature value3
Feature nameWith optical interface (EF003028)
Feature valueNo
Feature nameSupporting protocol for EtherCAT (EF017564)
Feature valueNo
Feature nameSupporting protocol for TCP/IP (EF003050)
Feature valueNo
Feature nameSupporting protocol for PROFIBUS (EF003052)
Feature valueNo
Feature nameSupporting protocol for CAN (EF003053)
Feature valueNo
Feature nameSupporting protocol for INTERBUS (EF003054)
Feature valueNo
Feature nameSupporting protocol for ASI (EF003051)
Feature valueNo
Feature nameSupporting protocol for KNX (EF003055)
Feature valueNo
Feature nameSupporting protocol for Modbus (EF003057)
Feature valueNo
Feature nameSupporting protocol for Data-Highway (EF003058)
Feature valueNo
Feature nameSupporting protocol for DeviceNet (EF003059)
Feature valueNo
Feature nameSupporting protocol for SUCONET (EF003060)
Feature valueNo
Feature nameSupporting protocol for LON (EF003017)
Feature valueNo
Feature nameSupporting protocol for PROFINET IO (EF007525)
Feature valueNo
Feature nameSupporting protocol for PROFINET CBA (EF007524)
Feature valueNo
Feature nameSupporting protocol for SERCOS (EF006657)
Feature valueNo
Feature nameSupporting protocol for Foundation Fieldbus (EF007522)
Feature valueNo
Feature nameSupporting protocol for EtherNet/IP (EF007521)
Feature valueNo
Feature nameSupporting protocol for AS-Interface Safety at Work (EF007519)
Feature valueNo
Feature nameSupporting protocol for DeviceNet Safety (EF007520)
Feature valueNo
Feature nameSupporting protocol for INTERBUS-Safety (EF006662)
Feature valueNo
Feature nameSupporting protocol for PROFIsafe (EF007526)
Feature valueNo
Feature nameSupporting protocol for SafetyBUS p (EF007527)
Feature valueNo
Feature nameSupporting protocol for other bus systems (EF003062)
Feature valueYes
Feature nameRadio standard Bluetooth (EF007178)
Feature valueNo
Feature nameRadio standard WLAN 802.11 (EF007179)
Feature valueNo
Feature nameRadio standard GPRS (EF008523)
Feature valueNo
Feature nameRadio standard GSM (EF008524)
Feature valueNo
Feature nameRadio standard UMTS (EF008525)
Feature valueNo
Feature nameIO link master (EF007298)
Feature valueNo
Feature nameRedundancy (EF003156)
Feature valueNo
Feature nameType of data transmission (EF008225)
Feature valueSerial
Feature nameTransmission rate (EF003271)
Feature value31250 kBit/s
Feature nameWith potential separation (EF003272)
Feature valueNo
Feature nameSIL according to IEC 61508 (EF009889)
Feature valueNone
Feature nameSuitable for safety functions (EF001597)
Feature valueNo
Feature namePerformance level according to EN ISO 13849-1 (EF007399)
Feature valueNone
Feature nameAppendant operation agent (Ex ia) (EF004141)
Feature valueNo
Feature nameAppendant operation agent (Ex ib) (EF004142)
Feature valueNo
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameExplosion safety category for dust (EF003998)
Feature valueNone
Feature nameWidth (EF000008)
Feature value22.5 mm
Feature nameHeight (EF000040)
Feature value99 mm
Feature nameDepth (EF000049)
Feature value114.5 mm
