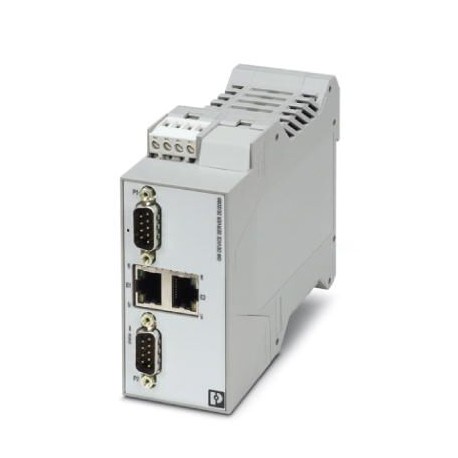

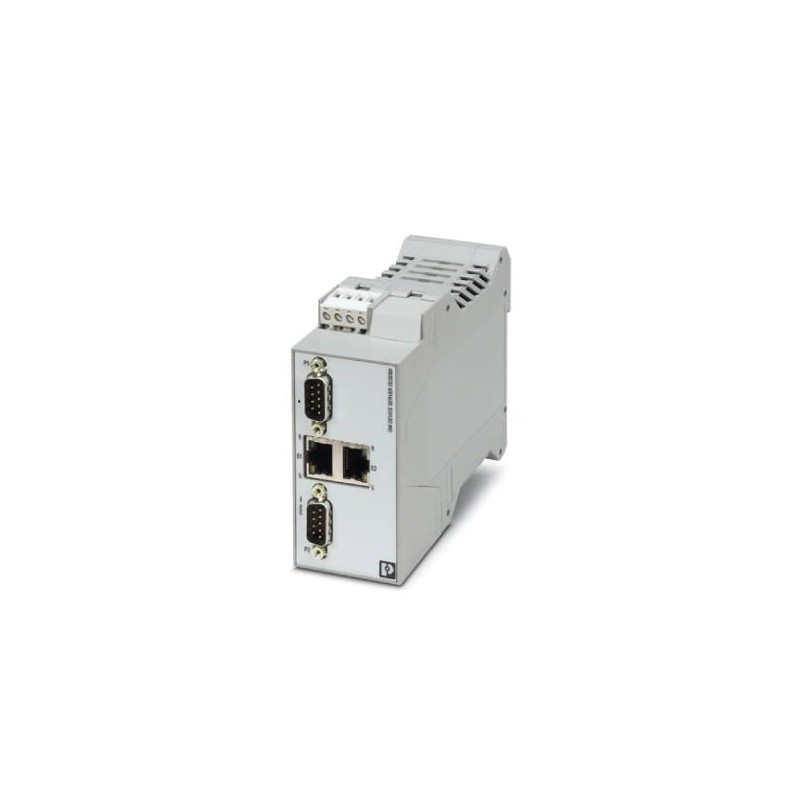

GW EIP/MODBUS 2E/2DB9 1062380 PHOENIX CONTACT The GW EIP/MODBUS... enables two-way communication between Eth..
GW EIP/MODBUS 2E/2DB9
1062380
PHOENIX_CONTACT
The GW EIP/MODBUS... enables two-way communication between EtherNet/IP™ and Modbus protocols. Includes two RJ45 ports and two D-SUB 9 ports.
The GW EIP/MODBUS... allows two-way communication between EtherNet/IP™ and Modbus protocols. It comprises two RJ45 connections and two D-SUB-9 connections.
PLC's > PLC communication module
Safety
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1062380 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626718415 |
| Weight per Piece (excluding packing) | 220.000 g |
| Custom tariff number | 85176200 |
| Country of origin | US (United States) |
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Altitude | < 2000 m |
| Degree of protection | IP20 |
| Noise immunity | EN 61000-6-2:2005 |
General
| Electrical isolation | IEC UL 61010-1 (VCC // Ethernet) |
|---|---|
| Test voltage data interface/data interface | 1.5 kVrms(50 Hz, 1 min.) |
| Test voltage data interface/power supply | 1.5 kVrms |
| 1.5 kVrms(50 Hz, 1 min.) | |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise emission | EN 61000-6-4 |
| Net weight | 216 g |
| Housing material | PA 6.6 |
| Color | gray |
| MTBF | 68.1 Years (Telcordia standard, 25°C temperature, 50% stress, Environmental Factor = 1.0) |
| 45.4 Years (Telcordia standard, 40°C temperature, 50% stress, Environmental Factor = 1.5) | |
| Conformance | CE-compliant |
| UL, USA | UL 61010-1 |
| UL, USA/Canada | Class I, Div. 2, Groups A, B, C, D T4A |
Power supply
| Supply voltage range | 10.8 V DC ... 30 V DC (via pluggable COMBICON screw terminal block) |
|---|---|
| Max. current consumption | 100 mA (24 V DC) |
| Typical current consumption | 88 mA (24 V DC) |
| Conductor cross section flexible max. | 2.50 mm² |
| Conductor cross section flexible min. | 0.20 mm² |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 24 |
Serial interface
| Interface 1 | EtherNet/IP™, MODBUS TCP |
|---|---|
| Interface | Ethernet |
| No. of ports | 2 |
| Connection method | RJ45 socket, shielded |
| Transmission length | ≤ 100 m (shielded twisted pair) |
| Protocols supported | EtherNet/IP, MODBUS ASCII/RTU/TCP |
| Auxiliary protocols | ARP, DHCP (Client), PING |
| Serial transmission speed | 10/100 Mbps, auto negotiation |
| Interface | RS-232 |
| Number of connections | 2 |
| Connection method | D-SUB 9 plug |
| File format/coding | 5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity |
| Transmission length | 15 m |
| Pin assignment | |
| Data flow control/protocols | Software handshake, Xon/Xoff or hardware handshake RTS/CTS |
| Serial transmission speed | 0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps |
| Interface | RS-422 |
| Number of connections | 2 |
| Connection method | D-SUB 9 plug |
| File format/coding | 5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity |
| Transmission length | ≤ 1200 m |
| Termination resistor | 120 Ω (configurable) |
| Pin assignment | |
| Serial transmission speed | 0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps |
| Interface | RS-485 |
| Number of connections | 2 |
| Connection method | D-SUB 9 plug |
| File format/coding | 5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity |
| Termination resistor | 120 Ω (configurable) |
| Pin assignment | |
| Serial transmission speed | 0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps |
Function
| Web-based management | yes |
|---|---|
| Management | Web-based management |
| Status and diagnostic indicators |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
|---|---|
| Type of test | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 |
| Shock in acc. with EN 60068-2-27/IEC 60068-2-27 | |
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2:2005 |
| Standards/regulations | EN 55022, EN 55024 |
| Conformance | CE-compliant |
| UL, USA | UL 61010-1 |
| UL, USA/Canada | Class I, Div. 2, Groups A, B, C, D T4A |
| Noxious gas test | ISA-S71.04-1985 G3 Harsh Group A |
| ATEX | DEMKO 18ATEX 2026X: II 3 G Ex ec IIC T4 Gc |
| IECEx | IECEx UL 18.0023X Ex ec IIC T4 Gc |
Classifications
| Feature Name | Feature Value |
|---|---|
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 2 |
| Number of HW-interfaces RS-422 (EF003022) | 2 |
| Number of HW-interfaces RS-485 (EF003023) | 2 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| With optical interface (EF003028) | No |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard UMTS (EF008525) | No |
| IO link master (EF007298) | No |
| Redundancy (EF003156) | No |
| With potential separation (EF003272) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Suitable for safety functions (EF001597) | No |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 45 mm |
| Height (EF000040) | 99 mm |
| Depth (EF000049) | 115 mm |
