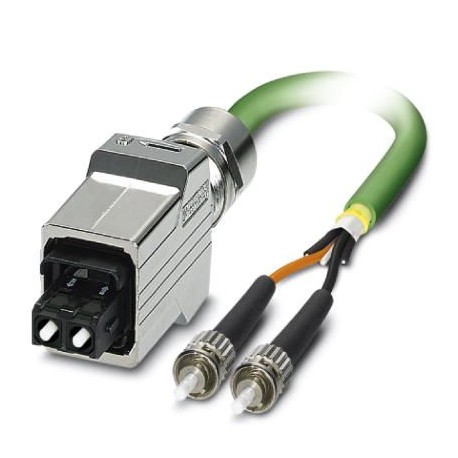

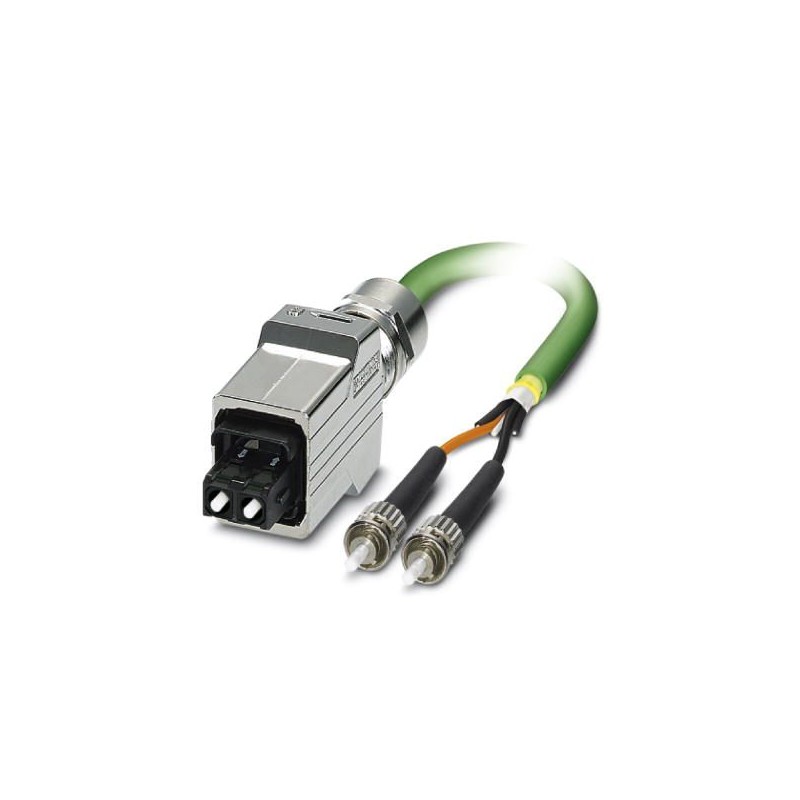

FOC-SJ:14-ST/_/_/_ 1417723 PHOENIX CONTACT FO patch cable
FOC-SJ:14-ST/_/_/_
1417723
PHOENIX_CONTACT
FO patch cable
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Assembled FO cable, PROFINET cable type B, 200/230 µm PCF fiber, SC-RJ/IP67 push-pull metal housing to BFOC(ST)/IP20, PVC outer sheath, halogen-free, ozone and UV resistant, for fixed indoor installation, variable length
Your advantages
Key Commercial Data
| Orderkey | 1417723 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 190 (C-4-2017) |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85447000 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Altitude | 5000 m |
Material data
| Outer sheath, material | PVC |
|---|---|
| External sheath, color | green |
| Ferrule material | Zirconia ceramics |
| Fiber | HCS, 200/230 µm |
Line characteristics
| Cable type | PCF |
|---|---|
| Cable abbreviation | AT-V(ZN)YY 2K200/230 HCS |
| Length of cable | Free input (1.0 ... 2000 m) |
| External cable diameter | 7.2 mm |
| Wire colors | Black and orange with arrow labeling |
| External sheath, color | green |
| Outer sheath, material | PVC |
| Strain relief elements, external sheath | Non-metallic, aramide fiber |
| Cable weight | 45 kg/km |
| Bending radius, single element | 30 mm (Short-term) |
| 50 mm (Permanent) | |
| Bending radius, entire cable | 70 mm (Short-term) |
| 105 mm (Permanent) | |
| Tensile strength short-term/long-term | 800 N / 100 N |
| Lateral pressure short term | 500 N/cm |
| Lateral pressure, long-term | 300 N/cm |
| cable layer type | Indoors |
| Resistance to oil | very good oil and chemical resistance |
| Fiber | HCS, 200/230 µm |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
eCl@ss
| eCl@ss 4.0 | 27140816 |
|---|---|
| eCl@ss 4.1 | 27260701 |
| eCl@ss 5.0 | 27260701 |
| eCl@ss 5.1 | 27061003 |
| eCl@ss 6.0 | 27061003 |
| eCl@ss 7.0 | 27061003 |
| eCl@ss 8.0 | 27440210 |
| eCl@ss 9.0 | 27440210 |
UNSPSC
| UNSPSC 6.01 | 30211832 |
|---|---|
| UNSPSC 7.0901 | 31261501 |
| UNSPSC 11 | 31261501 |
| UNSPSC 12.01 | 31261501 |
| UNSPSC 13.2 | 39121429 |
