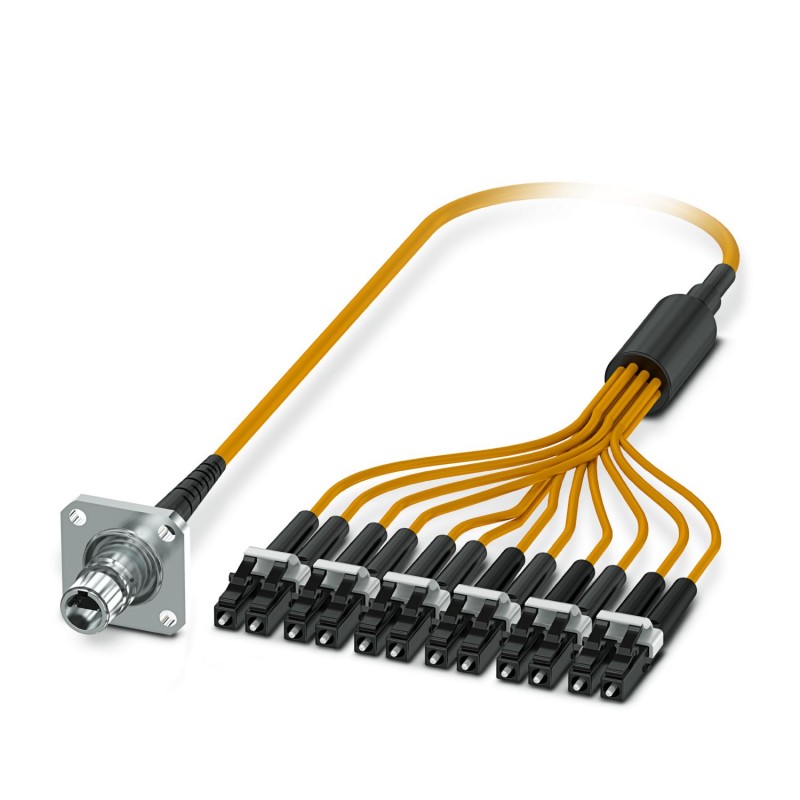

FOC-OS12-LCD6-GF02/1 1415232 PHOENIX CONTACT Distributor cable
FOC-OS12-LCD6-GF02/1
1415232
PHOENIX_CONTACT
10
Distributor cable
Dividing cables, protection rating: IP20, cable length: 1 m
Distributor cable, degree of protection: IP20, cable length: 1 m
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Data cable preassembled |
| Sensor type | Ethernet |
| Number of positions | 12 |
| No. of conductors | 12 |
| Attenuation | typ. 0.35 dB |
| max. 0.6 dB | |
| Transmission medium | Multi-mode fiberglass |
| Tensile strength short-term/long-term | 500 N / 200 N |
| Ferrule material | Zirconia ceramics |
| Outer sheath, material | LSFH |
| Connection 1 | |
| Locking type | Push Pull |
| Insertion/withdrawal cycles | 500 (In the event of repeated cleaning) |
| Degree of protection | IP68 (IEC 60529) |
| Ambient temperature (operation) | -20 °C ... 70 °C (IEC 60794-1-2 F1) |
| Connection 2 | |
| Locking type | Push Pull |
| Material | Plastic |
| Degree of protection | IP20 (IEC 60529) |
| Cable length | 1 m |
| Cable weight | 8.30 kg/km |
| Cable type | Multimode fiberglass |
| Cable type | Fan out |
| Cable abbreviation | 12-.../(ZN)H-...30 |
| External cable diameter | 7 mm |
| Outer sheath, material | LSFH |
| External sheath, color | orange |
| Wire diameter incl. insulation | 250 µm |
| Individual wire diameter | 250 µm |
| Tensile strength short-term/long-term | 500 N / 200 N |
| Lateral pressure short term | 500.00 N/cm |
| Lateral pressure, long-term | 100.00 N/cm |
| Halogen-free | complying with IEC 60754-1/2 |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 70 °C (IEC 60794-1-2 F1) |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C (IEC 60794-1-2 F1) |
| Ambient temperature (assembly) | -10 °C ... 50 °C (IEC 60794-1-2 F1) |
