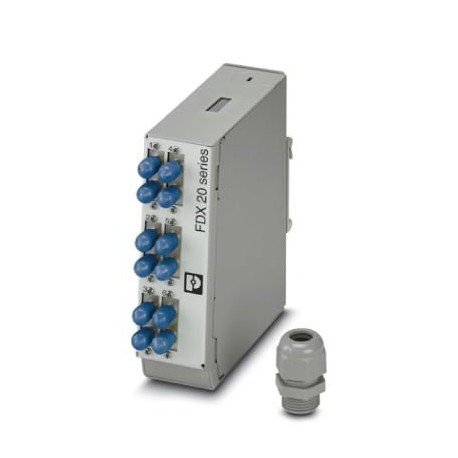

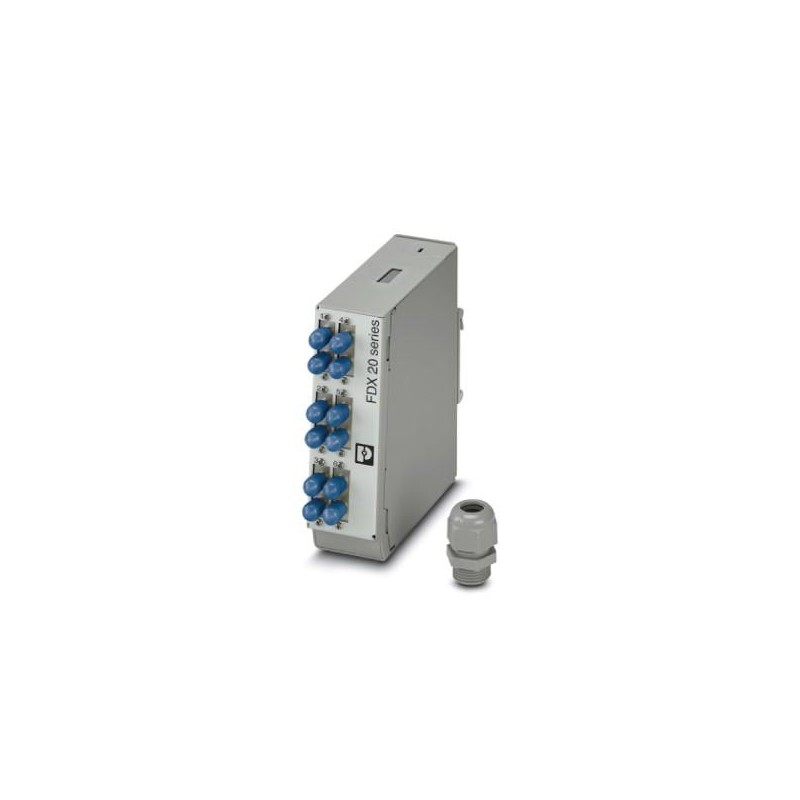

FOC-FDX20-PP-STD6-OSP-PT9 1019682 PHOENIX CONTACT Splice box
FOC-FDX20-PP-STD6-OSP-PT9
1019682
PHOENIX_CONTACT
Splice box
Data and telecommunication > Accessories/spare parts for communication technique
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1019682 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626701158 |
| Weight per Piece (excluding packing) | 820.000 g |
| Custom tariff number | 85367000 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of slots | 6 |
|---|---|
| Connection profile | ST / BFOC (ST®) connectors |
| Fiber type | Single-mode fiberglass, resistant to bending G.657 A2 |
| Ferrule diameter | 2.50 mm |
| Insertion/withdrawal cycles | ≥ 500 |
| Connection method | Cable gland M20 |
| External cable diameter | 6 mm ... 12 mm |
| Cable outlet | above and below |
| Type of cable | For all common cable types |
| Cable structure | Semi-loose compact wires (STB) |
| Color | traffic grey A RAL 7042 |
| Mounting type | DIN rail mounting |
| Degree of protection | IP20 |
| Type | Rail-mountable module |
| No. of cable outlets | 2 |
| Type of the screw connection | M20 x 1.5 |
| Type of note | Order information: |
| Note | In addition, shrink splice protection (Order No.: 1019676) or crimp splice protection (Order No.: 1019678) must be ordered separately. |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | 0 °C ... 50 °C |
| Degree of protection | IP20 (according to IEC 60529) |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | Sheet steel |
| Housing surface material | Powder-coated, gray |
| Ferrule material | Zirconia ceramics |
| Housing width | 40 mm |
| Depth | 115 mm |
| Height | 130 mm |
Line characteristics
| Type of cable | For all common cable types |
|---|---|
| Cable type | Single-mode fiberglass |
| Cable structure | Semi-loose compact wires (STB) |
| Wire colors | Color coded |
| Transmission medium | FO |
| Number of fibers | 12 |
| Fiber type | Single-mode fiberglass, resistant to bending G.657 A2 |
| Fiber | GOF |
| Attenuation | ≤ 0.3 dB (at 1310 nm / 1550 nm) |
Standards and Regulations
| Resistance to UV radiation | yes |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Shock | DIN EN 61300-2-9: 2015-09 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
