PHOENIX CONTACT INTERFACE Components (IF)FLX-D37F/16RSC/24DC/DO/TDC3K 2908891 PHOENIX CONTACT Active module

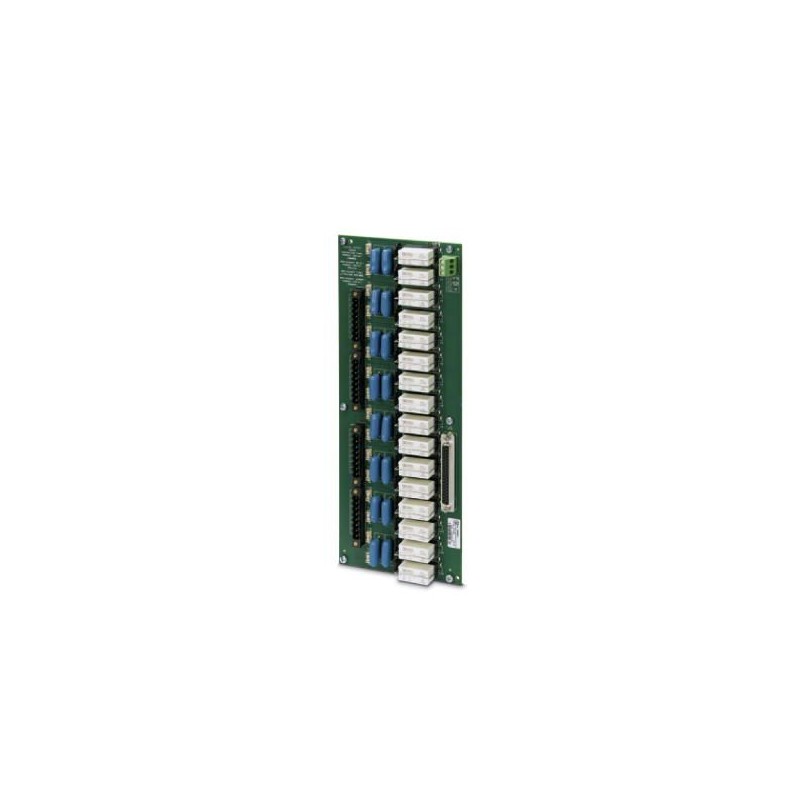

PHOENIX CONTACT FLX-D37F/16RSC/24DC/DO/TDC3K 2908891 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

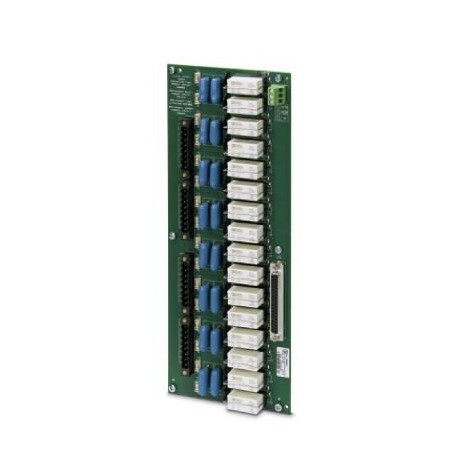

FLX-D37F/16RSC/24DC/DO/TDC3K 2908891 PHOENIX CONTACT Active module

Reference: FLX-D37F/16RSC/24DC/DO/TDC3K

Code: 2908891

Manufacturer: PHOENIX CONTACT

Description:

Active module
Transfer module for TDC3000 conversion to modern control platforms, digital output, 16 channels with relay

Categories:

  • PLC's > Interface module
  • PHOENIX CONTACT > INTERFACE Components (IF)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 2.068,88 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Key Commercial Data

Orderkey2908891
Packing unit1 pc
NoteMade to Order (non-returnable)
GTIN4055626733081
Weight per Piece (excluding packing)0.000 g
Custom tariff number85176200
Country of originUS (United States)

Note

Trade restrictionThe products are offered exclusively for export outside the EU and the European Economic Area.

Dimensions

Width307.3 mm
Height120.7 mm
Depth46.7 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 75 °C

Input data

Nominal input voltage UN24 V DC
Input voltage range in reference to UN0.8 ... 1.1
Typical input current at UN20 mA
Typical response time8 ms
Typical release time10 ms
Type of protectionFree-wheeling diode
Protective circuit/componentDamping diode

Output data

Contact type1 PDT
Contact materialAgNi
Maximum switching voltage125 V AC/DC
Minimum switching voltage12 V
Limiting continuous current5 A (fuse limited)
Min. switching current10 mA (at 12 V)
Interrupting rating (ohmic load) max.120 W (at 24 V DC)
58 W (at 48 V DC)
48 W (at 60 V DC)
50 W (110 V DC)
600 VA (120 V AC)
Error detection (line break / short-circuit)no

General

Mechanical service life3x 107cycles
Mounting positionany

Connection data for connection 1

Connection nameField level
Connection methodpluggable

Connection data for connection 2

Connection nameController level
Connection methodD-SUB pin strip
Number of connections1
Number of positions37

Supported controller

Corresponding controlHoneywell TDC3000
Corresponding I/O cardTDOR12

Classifications

ETIM for 2908891 PLC's (EC002780)

Feature nameType of electrical connection, control sided (EF008549)
Feature valueD-Sub
Feature nameNumber of poles (EF001391)
Feature value37
Feature nameRated voltage (EF000228)
Feature value24 V
Feature nameRated current (EF000227)
Feature value0.02 A
Feature nameDepth (EF000049)
Feature value46.7 mm
Feature nameWidth (EF000008)
Feature value307.3 mm
Feature nameHeight (EF000040)
Feature value120.7 mm
