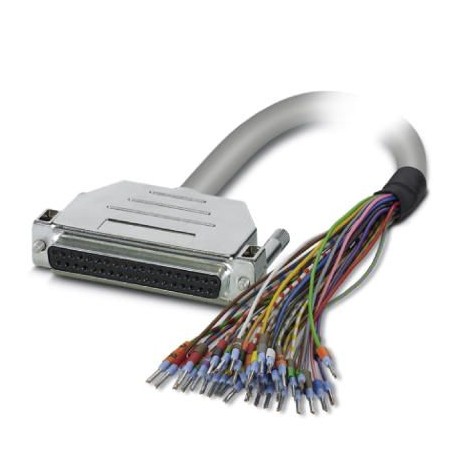

FLK-D37 SUB/B/EZ-DR/200/OE 2298315 PHOENIX CONTACT Cable
FLK-D37 SUB/B/EZ-DR/200/OE
2298315
PHOENIX_CONTACT
10
Cable
Ready-made round cable; Connection 1: Female connection D-SUB (1x 37-poles); connection 2: Single conductors (37-poles) (Conductors are labeled and equipped with ferrules); Cable length: 2 m
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2298315 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918586454 |
| Weight per Piece (excluding packing) | 324.900 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
General
| Nominal voltage UN | 25 V AC |
|---|---|
| 60 V DC | |
| Max. current carrying capacity per path | 2 A |
| Max. conductor resistance | 145 Ω/km |
| Length of cable | 2 m |
| Single wire, cross section | 0.14 mm² |
| Single wire, cross section [AWG] | 26 |
| Conductor construction: Number of litz wires: | 7 |
| Single wire, material | Cu tin-plated |
| Cable, preassembly | Insulation displacement, IEC 60352-4/DIN EN 60352-4 |
| Shielding | no |
| Outer sheath, material | PVC |
| External sheath, color | gray RAL 7035 |
| Degree of protection | IP20 |
| Degree of protection at installation location | ≥ IP54 |
Environmental conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Flame resistance | UL 1581, DIN EN 60332-1 |
| Resistance to oil | UL 1581 |
| Gasoline resistance | against occasional splashes |
Connector 1
| Connection name | Field level |
|---|---|
| Connection method | Single wires |
| Number of positions | 37 |
| Note | The wires are marked and fitted with ferrules. |
Connector 2
| Connection name | Controller level |
|---|---|
| Connection method | D-SUB socket strip |
| Number of connections | 1 |
| Number of positions | 37 |
Standards and Regulations
| Flame resistance | UL 1581, DIN EN 60332-1 |
|---|---|
| Resistance to oil | UL 1581 |
| Gasoline resistance | against occasional splashes |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 29 Mbytes |
|
