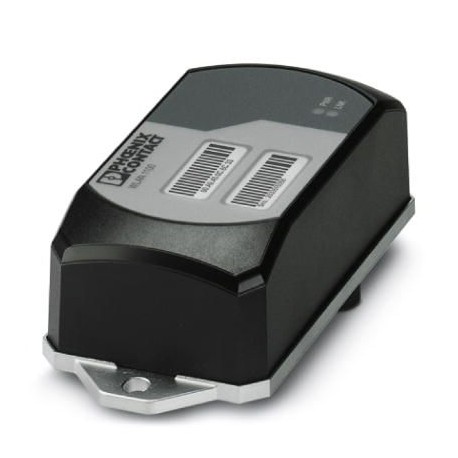

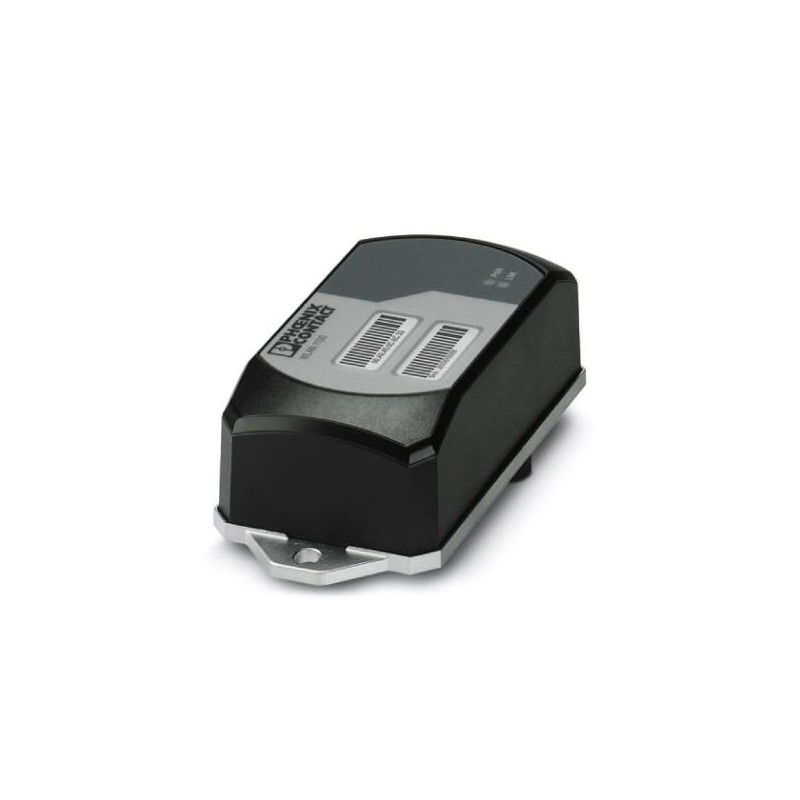

FL WLAN 2100 2702535 PHOENIX CONTACT Wireless module
FL WLAN 2100
2702535
PHOENIX_CONTACT
Wireless module
WLAN access point, client with two internal antennas (MIMO) for single-hole mounting, IP66/68, WLAN 802.11 a, b, g, n, frequency: 2.4 GHz, 5 GHz (incl. DFS channels), connections: COMBICON 9 ... 32V DC, RJ45: for LAN, web, http/https, CLI
Data and telecommunication > WLAN access point
I/O
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2702535 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626278926 |
| Weight per Piece (excluding packing) | 370.200 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Air pressure (operation) | 800 hPa ... 1080 hPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 660 hPa ... 1080 hPa (up to 3500 m above sea level) |
| Degree of protection | IP65 |
| IP66 | |
| IP67 | |
| IP68 | |
| Note | Degree of protection when installed |
Wireless interface
| Designation | Wireless LAN |
|---|---|
| Wireless standard | IEEE 802.11 |
| a | |
| b | |
| g | |
| n | |
| Antenna connection method | (Internal) |
| Frequency band | 2.4 GHz |
| 5 GHz | |
| Transmission power | max. 20 dBm (EIRP) |
| Number of wireless interfaces | 1 IEEE 802. 11 a/b/g/n |
| Wireless modules that can be connected | 60 |
Functions
| Operating modes | Access Point / Client Adapter / Repeater |
|---|---|
| Configuration | Web-based management, automated CLI |
| Quality of service (QoS) | Yes |
| Security | 802.11i |
| WPA PSK (preshared key) | |
| WPA2 | |
| AES | |
| TKIP | |
| MAC filter |
Wireless card
| Number | 1 |
|---|---|
| Type | IEEE 802.11 a/b/g/n 2.4 GHz and 5 GHz to 300 Mbps |
| Assembly instructions | Permanently installed |
Antenna
| Assembly instructions | Internal antenna |
|---|---|
| Number | 2 |
| Connection method | permanently installed |
| Note on the connection method | MIMO |
| Gain | 5 dBi |
Ethernet interface
| Interface | Ethernet (RJ45) |
|---|---|
| Number of interfaces | 1 |
| Connection method | RJ45 |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission speed | 10/100 Mbps |
| Transmission physics | Copper |
| Transmission length | 100 m (per segment) |
Power supply for module electronics
| Connection method | Push-in spring connection |
|---|---|
| Designation | 1966101 FMC 1,5/ 3-STF-3,5 |
| Number of positions | 3 |
| Cross section range AWG | 24 ... 16 (Use copper wires rated 75° C (UL)) |
| Note on the connection method | Recommended conductor cross section: 0.75 mm² |
| Recommended ferrule: connection length 10 mm | |
| Recommended crimping pliers: trapezoidal or square | |
| Supply voltage | 24 V DC (SELV) |
| Supply voltage range | 18 V DC ... 32 V DC (PELV/SELV) |
| 9 V DC ... 32 V DC () | |
| Supply current | typ. 120 mA (at 24 V DC) |
| Current consumption | max. 250 mA (at 18 V DC) |
| max. 400 mA (at 9 V DC) |
Connection data
| Designation | 1966101 FMC 1,5/ 3-STF-3,5 |
|---|---|
| Connection method | Push-in spring connection |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 16 |
| Stripping length | 10 mm |
General
| Mounting type | Single-hole mounting |
|---|---|
| Net weight | 370.2 g |
| Note | Degree of protection when installed |
| Wireless licenses | EU, more countries in e-shop |
| Wireless licences | Belgium |
| Bulgaria | |
| Denmark | |
| Germany | |
| Estonia | |
| Finland | |
| France | |
| Greece | |
| Great Britain | |
| Ireland | |
| Italy | |
| Latvia | |
| Liechtenstein | |
| Lithuania | |
| Luxembourg | |
| Malta | |
| Netherlands | |
| Norway | |
| Austria | |
| Poland | |
| Portugal | |
| Romania | |
| Sweden | |
| Switzerland | |
| Slovakia | |
| Slovenia | |
| Spain | |
| Czech Republic | |
| Hungary | |
| Cyprus (rep.) | |
| China | |
| Japan |
Standards and Regulations
| Mechanical tests | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g, 11 ms half-sine shock pulse |
|---|---|
| Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g, 10 ... 150 Hz | |
| Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g, 16 ms, 6000 shocks | |
| Broadband noise according to EN 60068-2-64 Category 1, Class A | |
| Standards/regulations | EN 61000-4-2 |
| Contact discharge | ± 4 kV |
| Indirect discharge | ± 6 kV |
| Standards/regulations | EN 61000-4-4 |
| Comments | ± 2.2 kV |
| Standards/regulations | EN 61000-4-5 |
| Signal | ± 0.5 kV (symmetrical) |
| ± 1 kV (asymmetrical) | |
| Standards/regulations | EN 55022 |
| Test result | Class B |
| Standards/regulations | EN 61000-4-6 |
| Frequency range | 0.15 MHz ... 80 MHz |
| Voltage | 10 V |
Classifications
eCl@ss 4.024010504eCl@ss 4.124010504eCl@ss 5.019030112eCl@ss 5.119030100eCl@ss 6.019170200eCl@ss 7.019170201eCl@ss 8.019170201eCl@ss 9.019170201
| Feature Name | Feature Value |
|---|---|
| Radio protocol (EF001007) | Other |
| Colour (EF000007) | Other |
| Width (EF000008) | 62.8 mm |
| Height (EF000040) | 36.5 mm |
| Depth (EF000049) | 113.2 mm |
| Degree of protection (IP) (EF005474) | IP65 |
