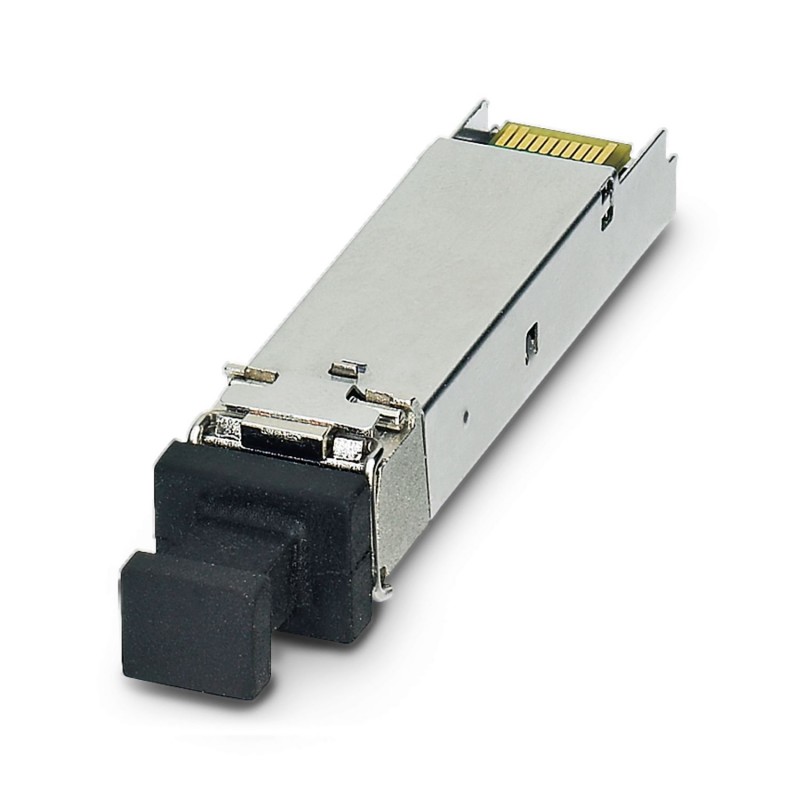

FL SFP LX10-B 1025401 PHOENIX CONTACT Media module
FL SFP LX10-B
1025401
PHOENIX_CONTACT
Media module
Gigabit SFP module for transfer up to 10 km with a wavelength of 1310 nm.
Data and telecommunication > Interface converter
I/O
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Width | 13.7 mm |
| Height | 8.95 mm |
| Length | 56.5 mm |
| Note on application | |
| Note on application | Only for industrial use |
| Mounting type | Insert in SFP slot |
| Ethernet FO | |
| Connection method | LC |
| Transmission speed | 1 Gbps |
| Transmit capacity, minimum | -9.5 dBm |
| Transmit capacity, maximum | -3 dBm |
| Minimum receiver sensitivity | -21 dBm |
| Maximum receiver sensitivity | -3 dBm |
| Transmission physics | Single-mode fiberglass |
| Transmission length | 10 km (Fiberglass 9/125) |
| Wavelength | 1310 nm |
| Signal LEDs | depending on the Factoryline device |
| No. of channels | 1 (LC single mode) |
| Product type | SFP module |
| Type | Factoryline devices with SFP slot |
| MTTF | 59 Years (Telcordia SR-332, temperature factor at 40°C = 1, stress factor at 50% = 1, environmental factor = 1) |
| Format | SFP (Small Form-factor Pluggable) |
| Data management status | |
| Article revision | 00 |
| Status display | via a Factoryline device |
| Transmission medium | FO |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | 0 °C ... 70 °C (non-condensing) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C (non-condensing) |
| Case temperature | max. 70 °C (Operation) |
| Permissible humidity (operation) | 30 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 30 % ... 95 % (non-condensing) |
| Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
| Air pressure (operation) | 86 kPa ... 108 kPa (1500 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
| Standard designation | Laser equipment safety |
| Standards/specifications | IEC 60825 |
