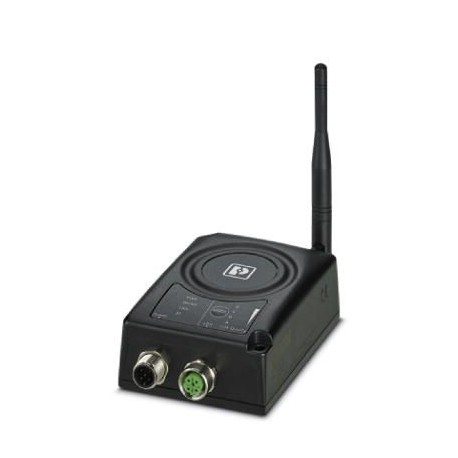

FL EPA 2 RSMA 1005957 PHOENIX CONTACT Wireless module
FL EPA 2 RSMA
1005957
PHOENIX_CONTACT
Wireless module
Combined wireless module Ethernet with Bluetooth and WLAN, replaceable omnidirectional antenna, WLAN: AP and Client, 2.4 and 5 GHz, Bluetooth: 2.1+EDR/4.0, PAN up to 7 connections, IP65, 9 ... 30 V DC, M12 connection, WEB, AT commands and mode button
Data and telecommunication > Network adapter
I/O
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Often bought together
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1005957 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626477022 |
| Weight per Piece (excluding packing) | 180.000 g |
| Custom tariff number | 85176200 |
| Country of origin | SE (Sweden) |
Dimensions
| Width | 67.8 mm |
|---|---|
| Height | 92.7 mm |
| Depth | 33.2 mm |
| Note on dimensions | excluding M12 connections and antenna connection |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 65 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 93 % (non-condensing) |
| Permissible humidity (storage/transport) | non-condensing |
| Degree of protection | IP65 |
Ethernet interface
| Interface | Ethernet |
|---|---|
| Number | 1 |
| Connection method | M 12 connectors (D-coded, female) |
| Interface | 10/100 Mbps Ethernet |
| Number of interfaces | 1 |
| Connection method | M 12 connectors (D-coded, female) |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission speed | 10/100 Mbps |
| Transmission physics | Copper |
| Transmission length | 100 m (per segment) |
Wireless interface
| Designation | Bluetooth / WLAN |
|---|---|
| Wireless standard | Bluetooth 2.1 + EDR |
| IEEE 802.11 | |
| b | |
| g | |
| a | |
| n | |
| Antenna connection method | RSMA (female) |
| Frequency range | 2.402 GHz ... 2.48 GHz (Bluetooth) |
| 2.4095 GHz ... 2.4645 GHz (WLAN) | |
| 5.17 GHz ... 5.25 GHz (WLAN-AP) | |
| 5.17 GHz ... 5.71 GHz (WLAN-Client) | |
| Frequency band | 2.4 GHz |
| 5 GHz | |
| Transmission power | max. 16 dBm (Bluetooth: 10 dBm) |
| Number of wireless interfaces | 1 IEEE 802.11 a/b/g/n, Bluetooth 2.1+EDR, Bluetooth LE 4.0 |
| Wireless modules that can be connected | 7 (BT 2.1+EDR, NAP-Mode) |
| Profiles supported |
Antenna
| Assembly instructions | External OMNI omnidirectional antenna supplied as standard, antennas can be exchanged |
|---|---|
| Number | 1 |
| Connection method | RSMA (male) |
| Gain | 3 dBi ((2.4 GHz / 5 GHz)) |
| Length | 107 mm |
Power supply for module electronics
| Connection method | M12 connector (A-coded, male) |
|---|---|
| Supply voltage | 24 V DC |
| Supply voltage range | 9 V DC ... 30 V DC |
| Supply current | typ. 54 mA (at 24 V DC) |
| Current consumption | max. 190 mA (at 9 V DC) |
Functions
| Operating modes | Access point/client adapter for WLAN and Bluetooth |
|---|---|
| Configuration | Web interface, MODE button, AT commands (TCP/IP), SSC |
| Security | 802.11i |
| WPA PSK (preshared key) | |
| WPA2 | |
| AES | |
| TKIP | |
| PIN | |
| Non-discoverable |
General
| Mounting type | Wall mounting |
|---|---|
| Net weight | 180 g |
| Wireless licenses | Europe, USA, Canada, additional countries in the e-shop |
| RED (Radio Equipment Directive) | |
| FCC 47 CFR part 15, subpart B | |
| Wireless licences | Belgium |
| Bulgaria | |
| Denmark | |
| Germany | |
| Estonia | |
| Finland | |
| France | |
| Greece | |
| Great Britain | |
| Ireland | |
| Iceland | |
| Italy | |
| Canada | |
| Latvia | |
| Liechtenstein | |
| Lithuania | |
| Luxembourg | |
| Malta | |
| Netherlands | |
| Norway | |
| Austria | |
| Poland | |
| Portugal | |
| Romania | |
| Sweden | |
| Switzerland | |
| Slovakia | |
| Slovenia | |
| Spain | |
| Czech Republic | |
| Hungary | |
| USA | |
| Cyprus (rep.) | |
| Japan | |
| Mounting type | Wall mounting |
Standards and Regulations
| Mechanical tests | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 3g, 11 ms half-sine shock pulse |
|---|---|
| Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5 - 8.4 Hz= ±3.5 mm; 8.4 - 40.7 Hz = 1g; 40.7 - 57Hz= ±0.15 mm; 57 - 500 Hz= 2g | |
| Standards/regulations | EN 61000-4-2 |
| EN 61000-4-3 | |
| EN 61000-4-4 | |
| EN 61000-4-5 | |
| EN 55022 | |
| EN 61000-4-6 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027240409eCl@ss 4.127240409eCl@ss 5.027242215eCl@ss 5.127250501eCl@ss 6.019170100eCl@ss 7.019170101eCl@ss 8.019170101eCl@ss 9.019170101
| Feature Name | Feature Value |
|---|---|
| Ethernet (EF003535) | Yes |
| Bus type (EF000613) | Other |
| Number of ports 10 Mbps RJ45 (EF003547) | 0 |
| Number of ports 10 Mbps of ST (EF000897) | 0 |
| Number of ports 10 Mbps of SC (EF000922) | 0 |
| Number of ports 10/100 Mbps RJ45 (EF003549) | 0 |
| Number of ports 10/100/1000 Mbps RJ45 (EF004316) | 0 |
| Number of ports 100 Mbps SC (EF000900) | 0 |
| Number of ports 1000 Mbps SC (SX) (EF003551) | 0 |
| Number of ports 1000 Mbps SC (LX) (EF003552) | 0 |
| Number of ports 10 Gbit SC (SR) (EF004306) | 0 |
| Number of other ports (EF007643) | 1 |
| Height (EF000040) | 92.7 mm |
| Width (EF000008) | 67.8 mm |
| Depth (EF000049) | 33.2 mm |
