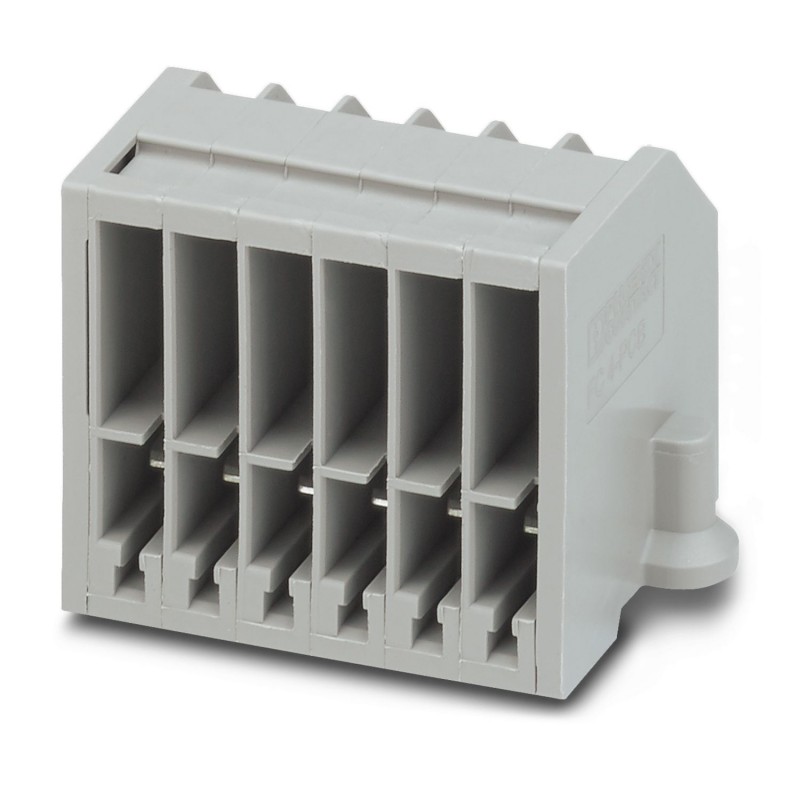

FC 4-PCB/6 1080100 PHOENIX CONTACT Housing base with a printed circuit board, 6-pin
FC 4-PCB/6
1080100
PHOENIX_CONTACT
10
Housing base with a printed circuit board, 6-pin
Base housing with printed circuit board, 6 poles
Terminal blocks > Endplate and partition plate for terminal block
Enclosures connectivity
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product Type | Connector |
| Number of poles | 6 |
| Number of rows | 1 |
| Potential | 6 |
| Data Maintenance Status | |
| Article Review | 01 |
| Insulation Properties | |
| Surge Category | Iii |
| Degree of pollution | 3 |
| Dimensioning Transient Voltage | 4 kV |
| Maximum Dissipated Power with Nominal Condition | 0.77 W |
| Nominal Section | 2.5 mm² |
| AWG Sizing Section | 14 |
| Floor 1 | |
| Standard-compliant connection | IEC 61984 |
| Rigid conductor section | 0.5 mm² ... 2.5 mm² |
| AWG Conductor Section | 20 ... 14 (Converted according to IEC) |
| Flexible conductor section | 0.5 mm² ... 2.5 mm² |
| Flexible Wire Section [AWG] | 20 ... 14 (Converted according to IEC) |
| Nominal current | 15 A |
| Maximum Charging Current | 15 A |
| Nominal voltage | 320 V |
| Width | 53.4 mm |
| Height | 29.1 mm |
| Depth | 34.3 mm |
| Colour | grey (RAL 7042) |
| Flammability class according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA |
| Static use of cold insulating material | -60 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Relative Insulating Material Temperature Index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Heat Emission Calorimeter NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Flammability of NFPA 130 Surfaces (ASTM E 162) | approved |
| NFPA 130 Specific Optical Flue Gas Density (ASTM E 662) | approved |
| NFPA 130 Flue Gas Toxicity (SMP 800C) | approved |
| Short-term permissible current 2.5 mm² | 0.01 kA |
| Result | Approved Test |
| Mechanical data | |
| Open sidewall | No |
| Life | |
| Plug Cycles | 100 |
| Needle Flame Test | |
| Performance Time | 30 sec |
| Result | Approved Test |
| Broadband Oscillation/Noise | |
| Test Specification | DIN EN 60255-21-1:1996-05 (conformity) |
| frequency | 10 Hz ... 150 Hz |
| Acceleration | 1g (84.2 Hz ... 150 Hz) |
| Test Directions | X, Y, and Z axes |
| Result | Approved Test |
| Crash | |
| Test Specification | DIN EN 60255-21-1:1996-05 (conformity) |
| Shock Type | Semi-sinusoid |
| Acceleration | 30g |
| Duration of the crash | 11 ms |
| Number of collisions per steering | 3 |
| Test Directions | X, Y, and Z axes (pos. and neg.) |
| Result | Approved Test |
| Environmental conditions | |
| Ambient Temperature (Service) | -60 °C ... 105 °C (for max. short-term operating temperature, see RTI Elec.) |
| Ambient Temperature (Storage/Transport) | -25 °C ... 60 °C (for a short time, no more than 24 hours, -60 °C to +70 °C) |
| Ambient Temperature (Mounting) | -5 °C ... 70 °C |
| Ambient Temperature (Drive) | -5 °C ... 70 °C |
| Permissible air humidity (storage/transport) | 30 % ... 70 % |
| Standard-compliant connection | IEC 61984 |
| Type of mounting | Printed circuit board mounting |
| Feature Name | Feature Value |
|---|---|
| Colour (EF000007) | Grey |
| Thickness (EF000125) | 53.4 mm |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
