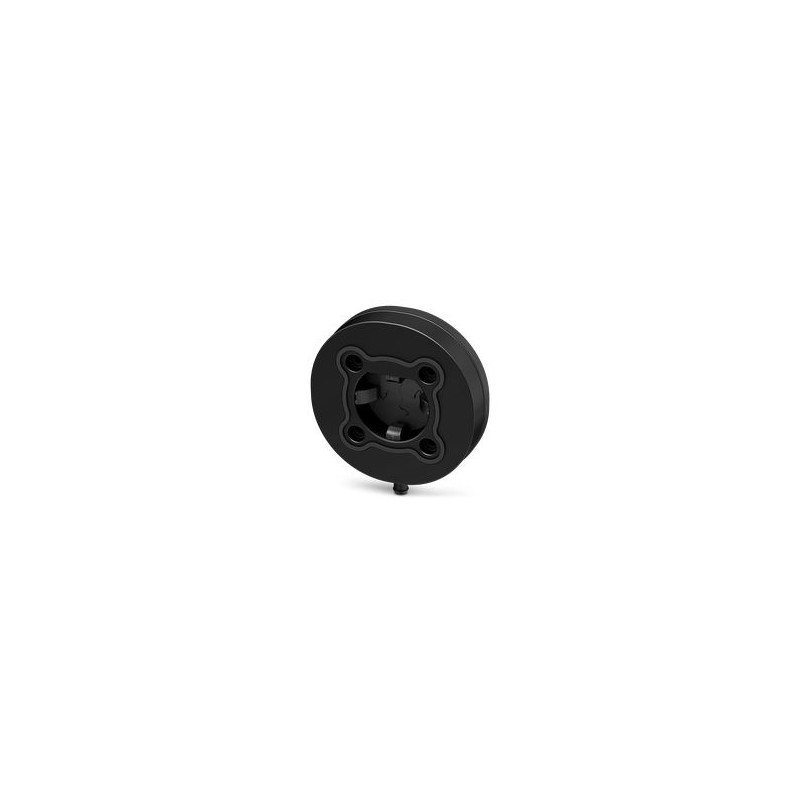

EV-T2M3SOS 1200676 PHOENIX CONTACT CHARX connect modular, Shutter for infrastructure charging socket, round,..
EV-T2M3SOS
1200676
PHOENIX_CONTACT
10
CHARX connect modular, Shutter for infrastructure charging socket, round, Accessories, with automatic closing mechanism, for installation in infrastructure sockets, Type 2, IEC 61851-1, IEC 62196-1, Rear wall mounting, M5 thread, Without logo, Kompatible Schutzdeckel without a Zubehör zu finden.
CHARX connect modular, Shutter for infrastructure charging socket, circular, Accessories, with self-locking mechanism, for attaching to infrastructure charging sockets, Type 2, IEC 61851-1, IEC 62196-1, Rear mounting, M5 thread, Without logo, Compatible protective covers can be found under Accessories.
Industrial socket/plug applications > Accessories/spare parts for E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | Compatible protective covers can be found under Accessories. |
| Design (Shutter) | circular |
| Product type | Shutter for infrastructure charging socket |
| Product family | CHARX connect modular |
| Application | for attaching to infrastructure charging sockets |
| Type | Accessories |
| Design | with self-locking mechanism |
| Compatibility | compatible with all CHARX connect modular protective covers except for the square basic version |
| Not compatible with Easy Mount protective covers | |
| Affixed logo | Without logo |
| Charging standard | Type 2 |
| Charging mode | Mode 3, Case B |
| Cross section AWG | (converted acc. to IEC) |
| Shutter | |
| Dimensional drawing |  |
| Width | 137 mm |
| Height | 137 mm |
| Depth | 36.95 mm |
| Bore dimensions | |
| Dimensional drawing |  |
| Width | 60 mm |
| Height | 60 mm |
| Color (Protective cover) | black (9005) |
| Material (Protective cover) | Plastic |
| Ambient conditions | |
| Degree of protection (Shutter) | IPxxD |
| Degree of protection (Protective cover) | IP54 (with protective cover, see accessories) |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
| Standards | |
| Standards/regulations | IEC 61851-1 |
| IEC 62196-1 | |
| IEC 62196-2 | |
| Mounting type Protective cover | Rear mounting (rear screw connection) |
| Max. wall thickness | 5 mm (with protective cover, see accessories) |
| Mounting hole diameter | 7.00 mm |
| Fixing screws | M5 thread |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CHARGING TECHNOLOGY ELECTROMOBILITY EN.pdf | 6 Mbytes |
|
