EV-T1G2C-1AC40A-5,0M10ASBK01 1488686 PHOENIX CONTACT CHARX connect comfort, AC charging cable, with vehicle ..
EV-T1G2C-1AC40A-5,0M10ASBK01
1488686
PHOENIX_CONTACT

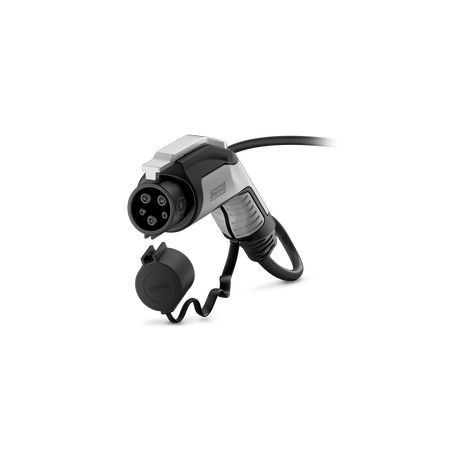

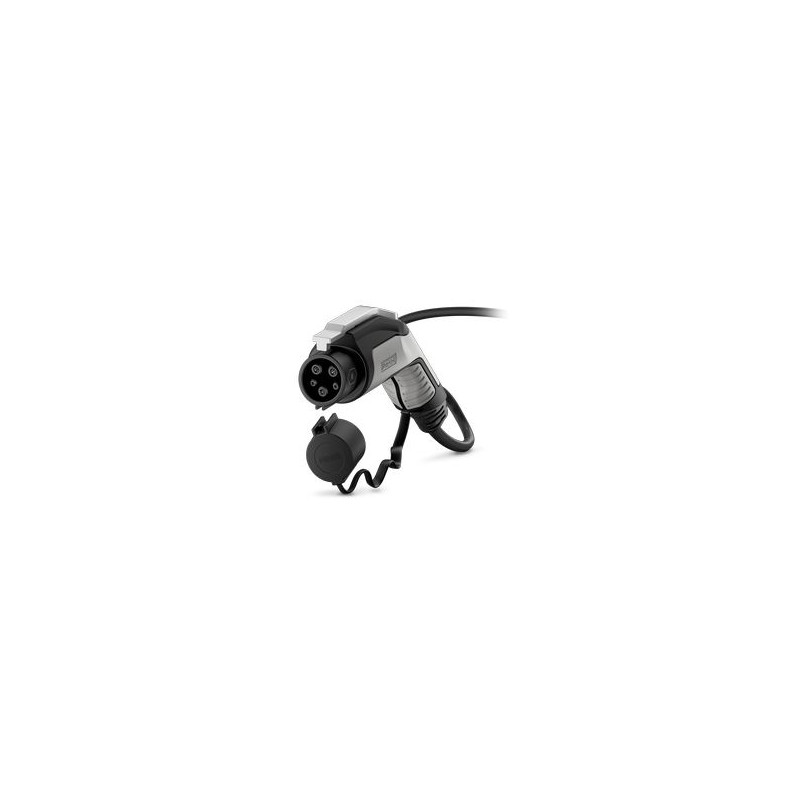

CHARX connect comfort, AC charging cable, with vehicle charging connector and open cable end, For alternating current (AC) charging electric vehicles (EV) with type 1 vehicle charging inputs, With cap, Type 1, SAE J1772, 40 A / 250 V (AC), PHOENIX CONTACT logo, cable: 5 m, black, straight
Charging cable
CHARX connect comfort, AC charging cable, with vehicle charging connector and open cable end, for charging electric vehicles (EV) with alternating current (AC) via type 1 vehicle charging inlets, with protective cap, Type 1, SAE J1772, 40 A / 250 V (AC), PHOENIX CONTACT logo, cable: 5 m, black, straight
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | AC charging cable |
| Product family | CHARX connect comfort |
| Application | for charging electric vehicles (EV) with alternating current (AC) via type 1 vehicle charging inlets |
| for installation at charging stations for electromobility (EVSE) | |
| Type | AC charging cable |
| with vehicle charging connector and open cable end | |
| Design | with protective cap |
| Affixed logo | PHOENIX CONTACT logo |
| Charging mode | AC level 2 |
| Charging standard | Type 1 |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Coding | 480 Ω (Lever actuated) |
| 150 Ω (Lever not actuated) | |
| Type of charging current | AC single-phase |
| Charging power | 10 kW |
| Charging current | 40 A |
| Power contact | |
| Number | 3 (L1, N, PE) |
| Rated voltage | 250 V AC |
| Rated current | 40 A |
| Signal contact | |
| Number | 2 (CP, CS) |
| Rated voltage | 30 V AC |
| Rated current | 2 A |
| Cross section AWG | (converted acc. to IEC) |
| Vehicle charging connector | |
| Width | 58 mm |
| Height | 151.1 mm |
| Depth | 236.1 mm |
| Color (Housing) | black (9005) |
| Color (Handle area) | black (9005) |
| Color (Actuating element) | silver grey (7001) |
| Color (Mating face) | black (9005) |
| Color (Protective cap) | black (9005) |
| Color (Cable) | black (9005) |
| Material (Vehicle charging connector) | Plastic |
| Material (Cable outer sheath) | TPE-U |
| Material (Contact surface) | Silver |
| Cable length | 5 m |
| Wiring standards/regulations | UL 62 |
| FFSO7.E343212 | |
| Cable weight | max. 385 kg/km |
| Cable type | straight |
| Cable structure | 3 x 10 AWG + 1 x 18 AWG |
| External cable diameter | 17 mm ±0.4 mm |
| Outer sheath, material | TPE |
| Stripping length of the sheath | 70 mm ±5 mm |
| Cable resistance | ≤ 0.00351 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Bending radius | min. 255 mm (15x diameter) |
| Mechanical data | |
| Insertion/withdrawal cycles | > 10000 |
| Insertion force | < 75 N |
| Withdrawal force | < 75 N |
| Ambient conditions | |
| Degree of protection (Vehicle charging inlet) | IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| Degree of protection (Protective cap) | IP54 |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
| Standards | |
| Standards/regulations | SAE J1772 |
| Feature Name | Feature Value |
|---|---|
| Type of current (EF000143) | AC single phase |
| Number of communication conductors (EF009317) | 2 |
| Type vehicle side (EF009318) | Type 1 |
| Type infrastructure side (EF009319) | Free conductor end |
| With Incable Control Box (ICCB) (EF009320) | No |
| Charging mode (EF009321) | Mode 3 |
| Nominal current (EF000001) | 40 A |
| Nominal voltage (EF000002) | 250 V |
| With temperature sensor (EF006034) | No |
| Cable length (EF000536) | 5 m |
| Cable type (EF000081) | Straight |
| Contact material (EF004019) | Other |
| Surface treatment contacts (EF002558) | Other |
